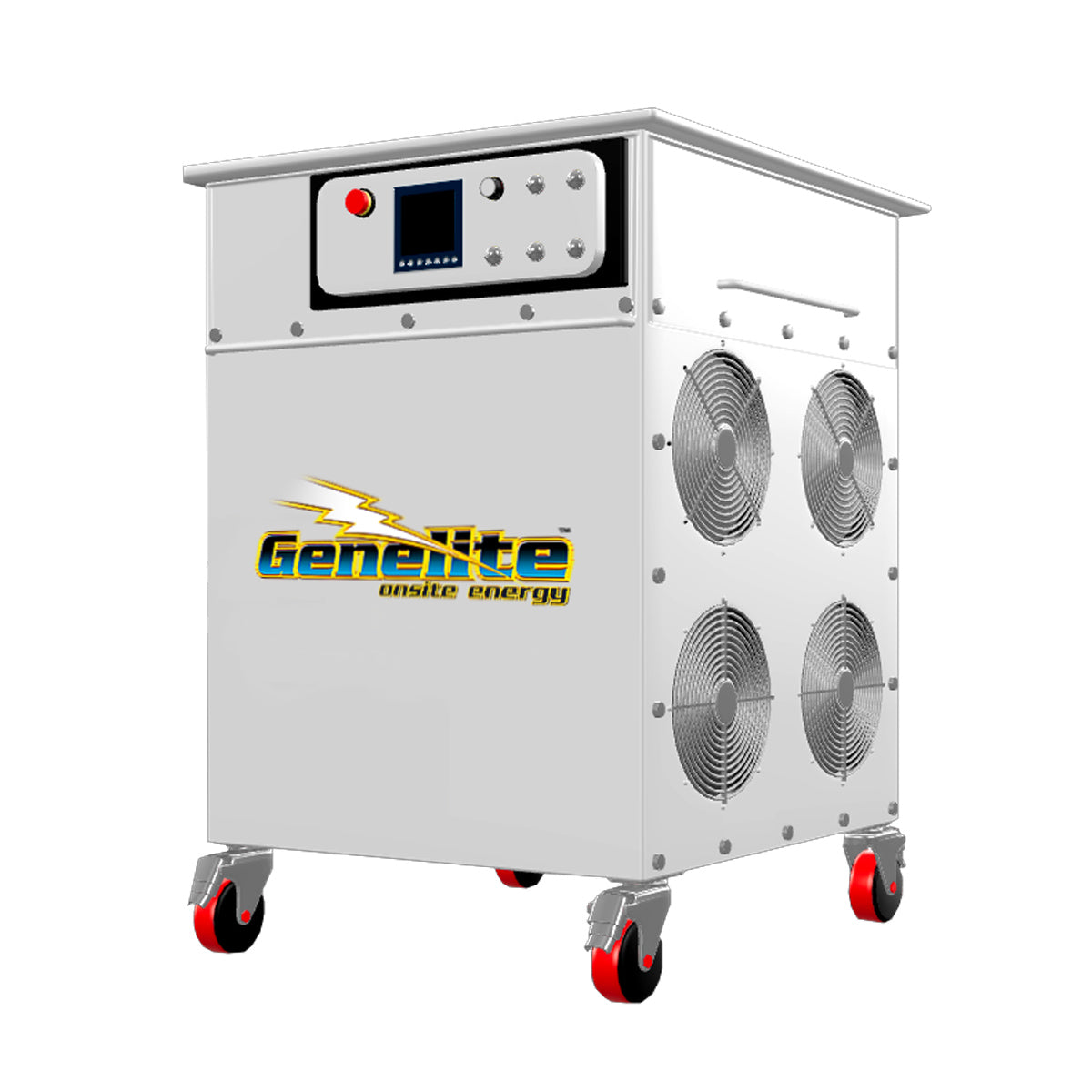

The PDL-300 is a manual dummy load bank that applies a resistive load of up to 300 kW at 415 V, 50 or 60 Hz, with a continuous duty rating. Low-heat-emitting resistive elements do the work: metal-sheathed, finned, and made from high-grade nickel resistance wire in U-type form. Built-in heavy-duty industrial fan blowers cool them.
Key features
- Load is added in increments with switches, and a rheostat gives variable load for exact power setting.
- The fan blowers can run from the load bank's own power or from an external supply.
- Heavy-duty casters are fitted for mobility during generator load testing.
- Eye hooks on top are provided for lifting the unit with suitable lifting equipment.
- Test AC voltage can fluctuate by ±15% at 50 Hz or 60 Hz, which gives a wide test voltage range.
- Load cables connect through a terminal block for convenient termination.
- NEMA Type 1 enclosure, which is for indoor use.
What it is for
The PDL-300 is for load testing generators. It converts a set's electrical output into heat, so a generator can be brought up to a chosen load and held there while you check how it performs. A resistive load puts real power (kW) on the engine and applies no reactive load. Choose a rating that matches the generator's kW output (kVA multiplied by power factor). The enclosure is for indoor use, so site the unit under cover, and have a licensed electrician connect the load cables. Send us the generator's make, model and rating if you want help with sizing.
Key specifications
- Weight: 880 kg
- Dimensions (L x W x H): 110 x 127 x 147 cm
- Rated load: 0 to 300 kW
- Type of load: Resistive
- Duty: Continuous
- Rated voltage: 415V
- Rated frequency: 50 Hz / 60 Hz
- Operation: Manual
- Enclosure: NEMA 1 (indoor)
- Voltage tolerance: ±15% at 50 Hz or 60 Hz
- Elements: Metal-sheathed, finned, high-grade nickel resistance wire (U-type)
- Cooling: Built-in industrial fan blowers, internally or externally powered
Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
