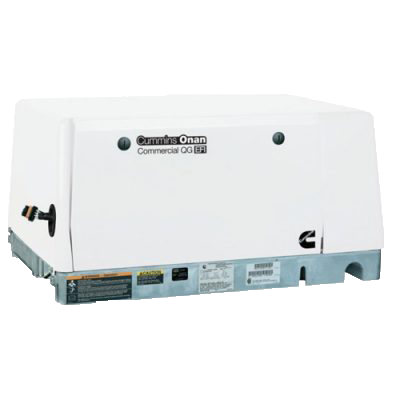

5.8kVA Cummins Onan Generator QG5800 EFI

The QG5800 EFI is a single phase petrol generator set from Cummins Onan, producing 5800 watts at 230V and 50Hz with a power factor of 1.0, which is 5.8kVA. Its engine is the Cummins Onan OHV EH65V, a 653 cm³ overhead valve petrol engine with electronic fuel injection (EFI) and an electronic governor. Digital voltage regulation looks after the output.

Key features

• Electronic fuel injection meters the fuel electronically instead of through a carburettor, which helps starting in both hot and cold conditions.
• An electronic governor holds engine speed, and frequency regulation is 1.7% from no load to full load.
• Digital voltage regulation holds the output voltage to within 2.0% from no load to full load, so the supply stays steady as the load changes.
• The set has an enclosed muffler and an integrated housing, and its sound level is 68 dB(A) at 3 m (10 ft) at full load in a typical installation.
• A 1 pole, 25 amp circuit breaker protects the output from overload.

Fuel use is 1.3 litres an hour at no load, 2.3 at half load and 3.6 at full load. Engine oil capacity is 1.9 litres including the filter.

What it will run

Rated current is 25.2 amps at 230V, so everything running at the same time has to stay inside that. Motors and compressors, such as those in pumps, power tools and air conditioners, draw several times their running current as they start, so allow for that surge when you size the load. A power factor of 1.0 means the full 5.8kVA is available as real power. Check each appliance's compliance plate for its power and starting needs. Connection to a building's wiring must go through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size the set.

The QG5800 EFI suits commercial and trade users who need a single phase supply of up to 5800 watts, such as workshops, site offices and cabins, service installations and outdoor events.

Price on application. This set is quoted to your configuration, any options and the installation. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Cummins Onan QG5800, 5.8kVA
• OHV EH65V engine with EFI (electronic fuel injection)
• Noise level 68 dB(A) at 10ft, full load
• Enclosed muffler, integrated housing design
• Rated to run two air conditioners
• Digital voltage regulation and electronic governor
• 2-year limited warranty, 5-year drive warranty
• Weight: 132 kg
• Dimensions (L x W x H): 85.3 x 56.3 x 42.5 cm
• Model code: 5.8 HGJAD-2100
• Rated output: 5800 W at 230V, 25.2 A, power factor 1.0
• Frequency: 50Hz
• Phase: Single phase
• Fuel type: Petrol (gasoline)
• Fuel consumption: 1.3 L/h at no load, 2.3 L/h at half load, 3.6 L/h at full load
• Engine displacement: 653 cm³
• Compression ratio: 8:1
• Oil capacity: 1.9 litres (including filter)
• Circuit breaker: 1 pole, 25 A
• Frequency regulation: 1.7% (no load to full load and constant load)
• Voltage regulation: 2.0% (no load to full load), 1.7% (constant load)

Part of the Cummins Onan range at Gen4Sale.
