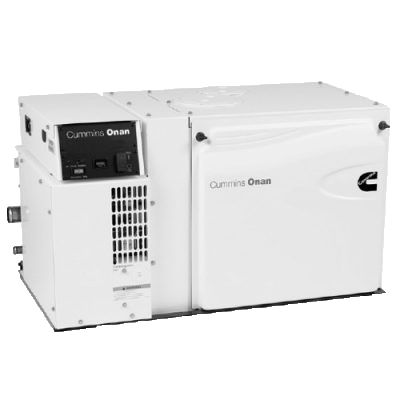

9.5kVA Cummins Onan Diesel Generator 9.5 QD HDKBM

The 9.5 QD (model HDKBM) is a 9.5kVA single phase diesel generator set from the Cummins Onan QD series. Its engine is a four-cylinder, four-cycle, indirect-injection, water-cooled diesel of 1498 cm³ with a 24:1 compression ratio, running at 1500 rpm for a 50Hz output and fed by a Bosch PFR-MD mini injection pump. The alternator is a single phase brushless design with Class H insulation, and an electronic governor controls engine speed.

Key features

• A sound-controlled housing and shields reduce the noise the set makes in service.
• Four-point internal mounting reduces vibration while the set runs.
• Automatic glow plugs take care of preheating before a start, so no manual preheat is needed.
• Computer-controlled constant speed operation and isochronous frequency regulation keep the frequency steady from no load to full load, with random variation of ±0.5% of the mean value.
• Voltage regulation of ±1.5% from no load to rated load, with random variation of ±1% of the mean value, keeps the voltage steady for the equipment you connect.
• A digital control with self-diagnostics and shutdown indicators helps trace faults.
• A service door gives easy access when the set is serviced.

Fuel use is 0.8 litres an hour with no load, 1.4 at quarter load, 2.1 at half load, 2.8 at three-quarter load and 3.4 at full load. Maximum fuel lift is 1.22 m. Lube oil capacity is 4.3 litres, coolant capacity is 5.0 litres and the coolant flow rate is 24.6 litres a minute. Ratings apply up to 500 ft altitude and 85°F ambient, and output decreases above those limits.

What it will run

Start with the loads that run together, then allow for motors and compressors, which typically draw several times their running current as they start. This is a single phase set, so it suits single phase equipment, and each appliance's compliance plate gives its power and starting needs. A set of this size typically suits workshop tools, lighting, pumps and refrigeration on a site or in small premises. Any connection to a building's wiring must go through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size the set.

The 9.5 QD suits trade and commercial users who need single phase power from a diesel set, from workshops and site cabins to plant rooms and small premises.

Price on application. This set is quoted to your configuration, any options and the installation. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 9.5kVA diesel generator (Cummins Onan)
• 4-cycle, indirect-injection, water-cooled diesel engine
• Noise level 61.8 dB(A) at 3 m (full load)
• Sound-controlled housing and shields to reduce noise
• Four-point semi-focalised mounting reduces vibration
• Automatic glow plug, no manual pre-heat needed
• Self-diagnostic capability; optional digital display
• Weight: 315 kg
• Dimensions (L x W x H): 103 x 57 x 59 cm
• Model code: 9.5HDKBM
• Phase: Single phase
• Frequency: 50Hz
• Engine speed: 1500 rpm
• Engine displacement: 1498 cm³, 4 cylinders
• Engine maximum power (SAE J1995): 13.5 kW (18.1 hp) at 1500 rpm
• Fuel consumption: 0.8 L/h at no load, 1.4 L/h at 1/4 load, 2.1 L/h at 1/2 load, 2.8 L/h at 3/4 load, 3.4 L/h at full load
• Maximum fuel lift: 1.22 m
• Starting battery: 12 V, 70 Ah, 540 CCA at -15°C minimum
• Alternator: Single phase, brushless, Class H insulation
• Voltage regulation: ±1.5% (no load to rated load), random variation ±1% of mean value
• Frequency regulation: Isochronous, random variation ±0.5% of mean value (no load to full load)
