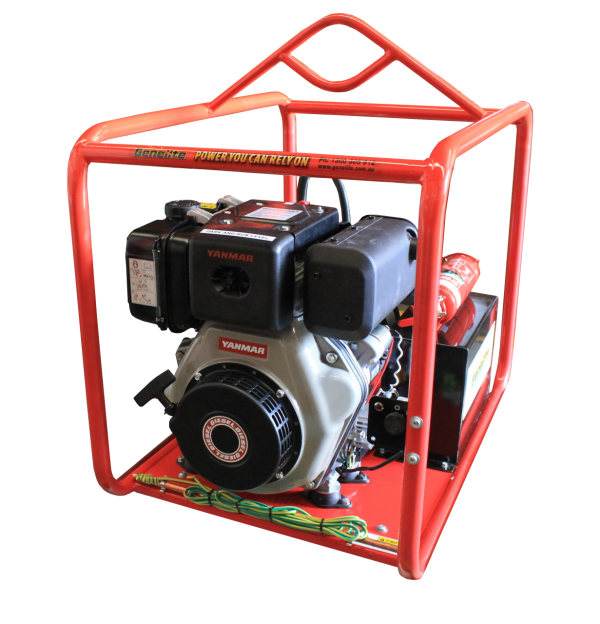

6.5kVA Yanmar Diesel Generator GYD5000E Mine Spec

The GYD5000E Mine Spec is a 6.5kVA (5kW) single phase Yanmar diesel generator at 240V and 50Hz. Its Yanmar L100AE-DEG is an overhead valve, single cylinder diesel running at 3000 rpm, with recoil and electric start. The alternator is a brushless AC synchronous type with Class H insulation, and two 15A 240V outlets are protected by a circuit breaker and RCD.

Key features

• Recoil and electric start give you two ways to start the engine, and a jump start receptacle is fitted for use with a booster if the battery runs flat.
• Two 15A 240V outlets with a circuit breaker and RCD protection guard the people and tools plugged in.
• An emergency stop, plus a lockable starter and battery isolator, give a fast shutdown and a way to lock the set out when it is not in use.
• A bunded tray and a drip tray catch fuel and oil leaks, and the Mine Spec build also includes a fire extinguisher and an earth stake.
• A heavy duty roll frame protects the engine and alternator, and a centre lift is built in for handling with lifting equipment.
• A 2 year limited engine warranty applies.

The fuel tank holds 5.5 litres. Noise is 80 dB(A) at 7 m. Engine oil capacity is 1.65 litres, and the starting battery is sealed in a covered box.

What it will run

At 5kW (about 20.8A at 240V), the GYD5000E Mine Spec typically runs site lighting, fridges and freezers, a pressure pump, device and battery chargers and workshop power tools, with the combined load kept under 5kW. The 15A rating on each outlet is not the limit: the two outlets share that output between them. Motors in pumps, compressors and power tools draw a surge at start, so read each machine's compliance plate and allow for that surge. A home or site connection must go through an inlet and changeover switch fitted by a licensed electrician. If you are unsure, send us your load list and we will help with sizing.

The GYD5000E Mine Spec suits mining and civil worksites, site offices, workshops and farms that need backup or intermittent power on site. It is built for standby use and is not rated for prime or continuous duty.

Key specifications

• Weight: 105 kg
• Dimensions (L x W x H): 85 x 55 x 60 cm
• Power output: 5kW / 6.5kVA
• Voltage and frequency: Single phase, 240V, 50Hz
• Fuel tank: 5.5 litres
• Noise level: 80 dB(A) at 7 m
• Engine: Yanmar L100AE-DEG, O.H.V. single cylinder, 3000 rpm
• Starting: Recoil and electric start
• Alternator: AC synchronous, brushless, Class H insulation, harmonic distortion under 5%
• Outlets: 2 x 15A 240V, with circuit breaker and RCD
• Engine oil capacity: 1.65 L
• Frame: Heavy duty roll frame
• Inclusions: 1 kg fire extinguisher, bunded tray, centre lift, earth stake, sealed battery with covered box, lockable starter motor and battery isolator, jump start receptacle, drip tray, emergency stop
• Warranty: 2 year limited engine warranty

Part of the Yanmar range at Gen4Sale.
