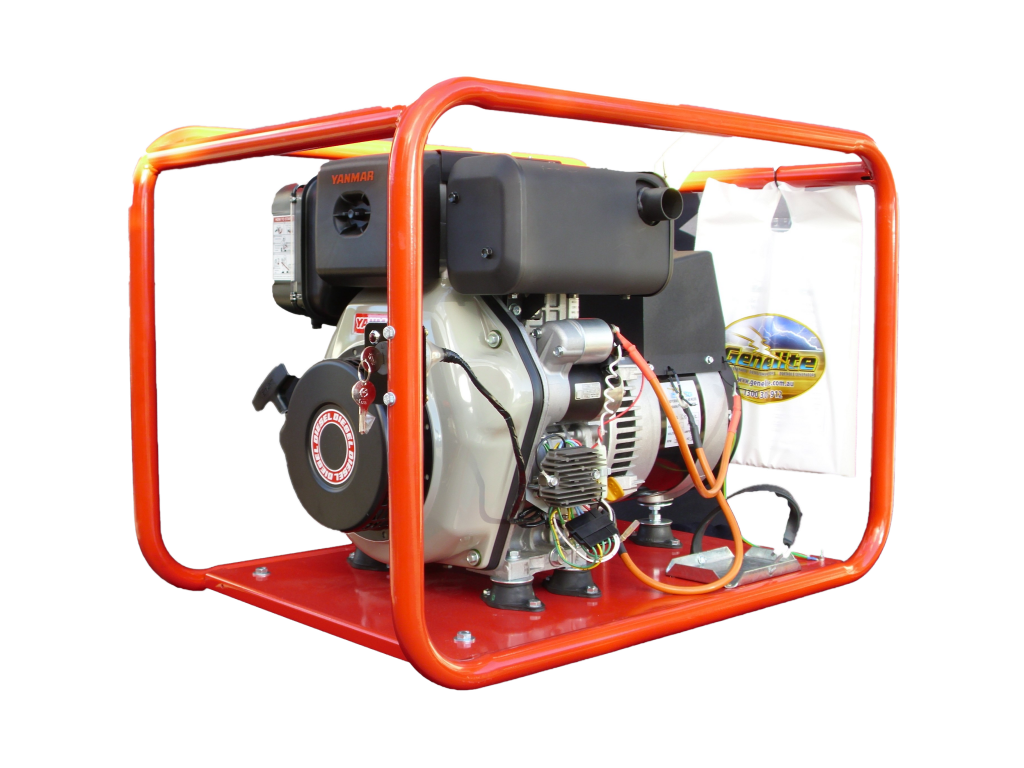

6.5kVA Yanmar Diesel Generator GYD5000E-H

The GYD5000E-H is a 6.5kVA (5kW) single phase Yanmar diesel generator at 240V and 50Hz. Its Yanmar L100 is an overhead valve, single cylinder diesel running at 3000 rpm, with recoil and electric start. The alternator is a brushless AC synchronous type with Class H insulation, and the outlets are two 15A IP66 sockets with RCD and circuit breaker protection.

Key features

• Recoil and electric start give you two ways to start the engine, so a flat battery does not leave you stuck.
• Two 15A outlets are rated IP66, which means the sockets are dust-tight and protected against powerful water jets.
• An RCD and a circuit breaker protect the outlets, cutting the supply on an earth fault or an overload.
• A brushless AC synchronous alternator with Class H insulation keeps harmonic distortion below 5%.
• A heavy duty, extra large roll frame guards the engine and alternator against knocks.
• A 2 year limited engine warranty applies.

The 5.5 litre tank gives 3.6 hours at 75% load, so it suits short outages and intermittent work. Noise is 80 dB(A) at 7 m. Engine oil capacity is 1.65 litres.

What it will run

At 5kW (about 20.8A at 240V), the GYD5000E-H typically runs lighting, fridges and freezers, a pressure pump, device chargers and workshop power tools, with the combined load kept under 5kW. The 15A rating on each outlet is not the limit: the two outlets share that output between them. Motors in pumps, compressors and power tools draw a surge at start, so read each appliance's compliance plate and allow for that surge before you rely on the set. A home connection must go through an inlet and changeover switch fitted by a licensed electrician. If you are unsure, send us your load list and we will help with sizing.

The GYD5000E-H suits job sites, workshops, farms and small businesses that want protected outlets for tools and lighting, as well as homes that need backup power through an outage. It is built for standby use and is not rated for prime or continuous duty.

Key specifications

• Weight: 96 kg
• Dimensions (L x W x H): 87 x 70 x 60 cm
• Power output: 5kW / 6.5kVA
• Voltage and frequency: Single phase, 240V, 50Hz
• Fuel tank: 5.5 litres
• Run time: 3.6 hrs @ 75% load
• Noise level: 80 dB(A) at 7 m
• Engine type: O.H.V. single cylinder, 3000 rpm
• Starting: Recoil and electric start
• Alternator: AC synchronous, brushless, Class H insulation, harmonic distortion less than 5%
• Outlets: 2 x 15A IP66, with RCD and circuit breaker
• Engine oil capacity: 1.65 L
• Frame: Heavy duty extra large roll frame
• Warranty: 2 year limited engine warranty
