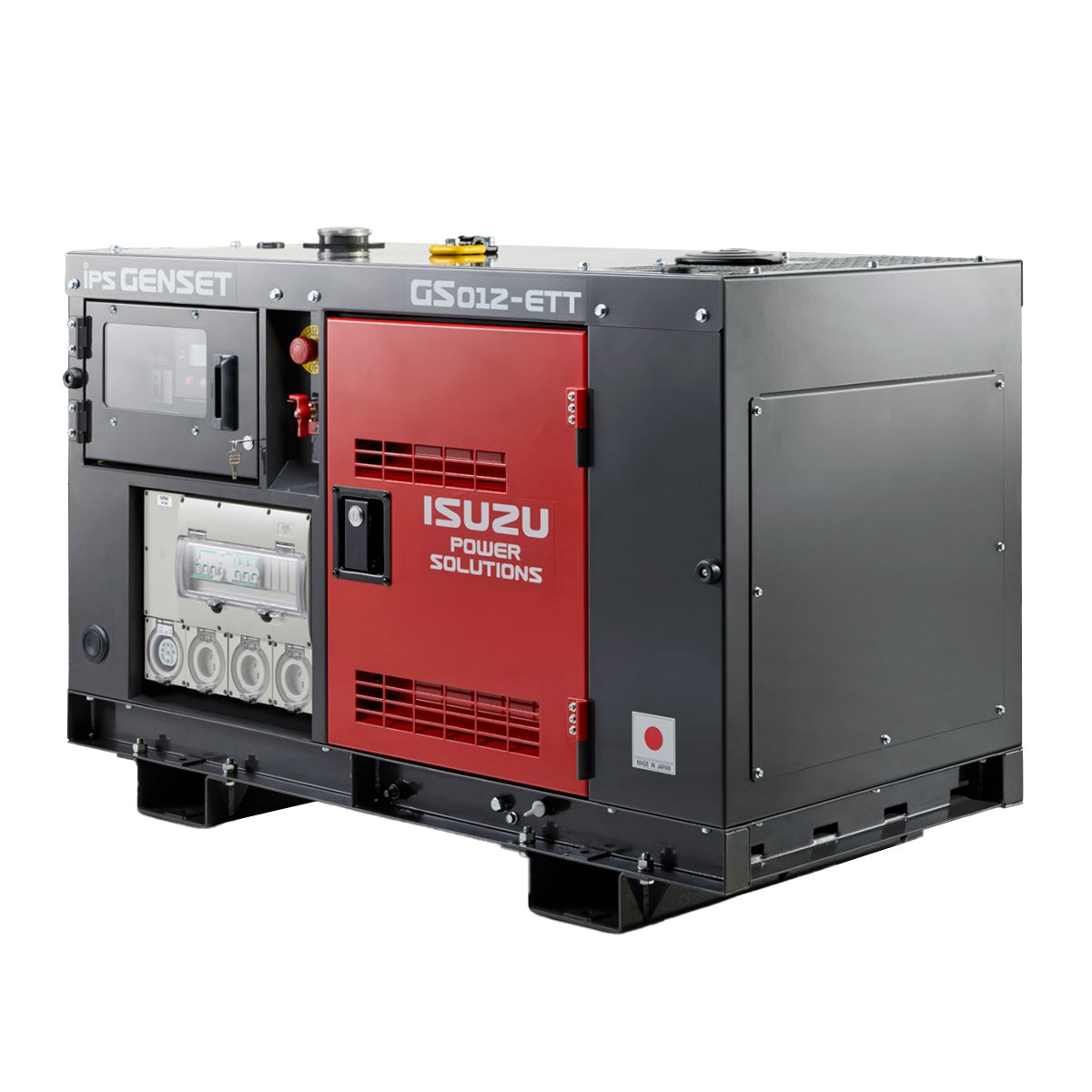

13.3kVA Isuzu Diesel Generator GS012-ETT

The GS012-ETT is a three phase diesel generator set rated at 12.1kVA prime and 13.3kVA standby at 415V and 50Hz (about 9.7kW prime and 10.6kW standby at its power factor of 0.8). It is powered by a Japanese-made Isuzu 3TNV70, a three cylinder, water-cooled, four-cycle diesel running at 3000rpm, and the alternator is brushless with AVR. Starting is electric, with a Mecc Alte GC250 controller offering manual or auto start and 2-wire remote start.

Key features

• Three 15A 240V single phase sockets and one 20A 415V three phase socket let the set run single phase and three phase equipment directly, with individual RCBO protection on the sockets.
• Socket and hardwire operating modes, with automatic MEN management, let the set either feed its own sockets or connect to a fixed installation.
• Total harmonic distortion of 3.5% at no load and 2.5% at full load gives a clean waveform that suits electronic equipment as well as motors.
• Low oil pressure and high coolant temperature shutdowns protect the engine, while over current, over and under voltage and frequency protection and a shunt-trip main circuit breaker protect the generator.
• The GC250 controller measures voltage, current, frequency, power, engine speed and running hours, and 2-wire remote start lets an external switch start the set.
• A heavy-duty air cleaner, dual-stage fuel filtration and a 250 hour service interval protect the engine and keep servicing on a clear schedule.
• A sound-attenuated enclosure reduces operating noise, and an emergency stop and lockable battery isolator are fitted for safe shutdown and servicing.

At the prime rating the set uses about 3.7 litres an hour, and the 40 litre tank gives about 10.5 hours of running.

What it will run

At 12.1kVA prime and 13.3kVA standby, the GS012-ETT typically suits small workshops, site compounds and farm sheds with a mix of single phase and three phase loads, such as lighting, power tools, pumps and compressors. Spread single phase loads across the three phases and allow headroom for motor starting, because pumps, compressors and air conditioners can draw several times their running current at start. Check the compliance plate on each machine for its running and starting watts. Hardwire connection, including an inlet and changeover switch for building backup, must be done by a licensed electrician. Send us your load list and we will help you size it.

The GS012-ETT suits workshops, farms, small commercial premises and temporary power for construction and maintenance work that needs single phase and three phase supply from one set.

Price on application. The price depends on the configuration, options and site, so this set is quoted individually. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 12.1kVA prime / 13.3kVA standby, three-phase output
• Isuzu 3TNV70 diesel engine (Japanese-made)
• Brushless AVR alternator
• 40 litre fuel tank
• Sound-attenuated enclosure
• Flexible socket and hardwire operating modes
• Automatic MEN management and remote-start capability
• 3 x 15A 240V single-phase + 1 x 20A 415V three-phase outlets
• Weight: 436 kg
• Dimensions (L x W x H): 130 x 64 x 84 cm
• Voltage and frequency: 415V AC, 50Hz, three phase
• Power factor: 0.8
• Engine type: Water-cooled, 4-cycle diesel, 3 cylinders, 0.854L
• Engine speed: 3000rpm
• Starting: Electric start, 12V 20A charging system
• Total harmonic distortion: 3.5% at no load, 2.5% at full load
• Fuel consumption at prime rating: 3.7 L/h (approx.)
• Run time at prime rating: 10.5 hours (approx.)
• Controller: Mecc Alte GC250, manual or auto start, 2-wire remote start
• Protection: Low oil pressure and high coolant temperature shutdown; over current, over and under voltage, over and under frequency; shunt-trip main circuit breaker
• Lift point and mounting: Single centre lift point, four-point base mounting (with or without fork pockets)
• Service interval: 250 hours

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
