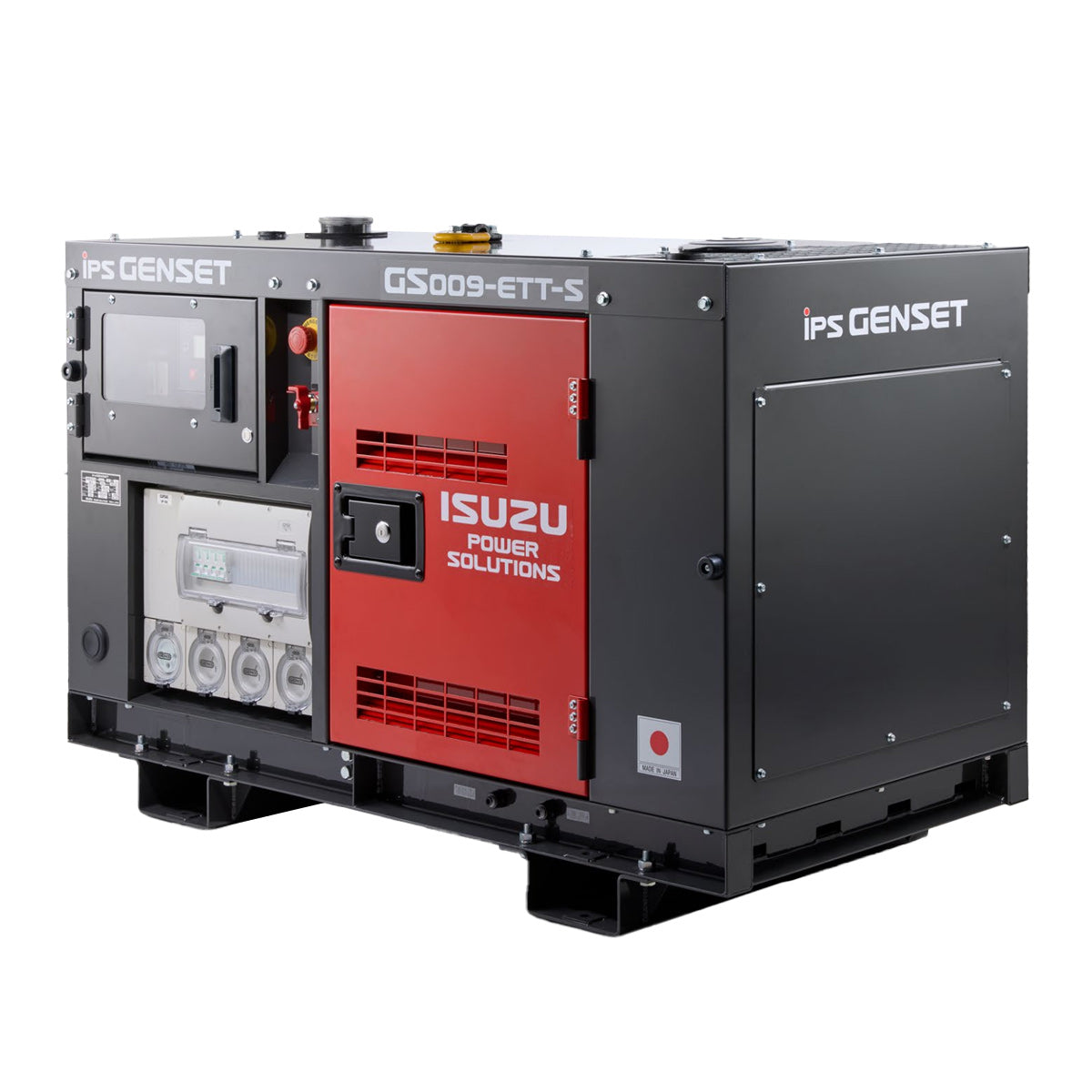

10.1kVA Isuzu Diesel Generator GS009-ETT-S

The GS009-ETT-S is a single phase diesel generator set rated at 9.2kVA prime and 10.1kVA standby (9.2kW and 10.1kW at a power factor of 1.0), supplying 240V at 50Hz. It is powered by an Isuzu 3TNV70, a three cylinder, water-cooled, four-cycle diesel running at 3000rpm, and drives a brushless alternator with AVR. Starting is electric, and a Mecc Alte GC250 controller provides manual or auto start with 2-wire remote start.

Key features

• Socket and hardwire operating modes let the same set supply loads plugged into its sockets or a fixed installation connected by hardwire.
• Automatic MEN switching is built in, so the multiple earthed neutral link is handled by the set.
• Low oil pressure and high coolant temperature shutdowns protect the engine, while over current, over and under voltage and over and under frequency protection and a shunt-trip main circuit breaker protect the generator.
• The GC250 controller measures voltage, current, frequency, power, engine speed and running hours, which helps with load checks and service planning.
• 2-wire remote start lets an external switch or controller start the set without anyone at the unit.
• A sound-attenuated enclosure reduces the noise the set makes in operation.
• A single centre lift point and four-point base mounting, with or without fork pockets, let the set be positioned with lifting equipment and fixed in place.

The 40 litre tank gives about 10.5 hours of running at the prime rating, where consumption is about 3.7 litres an hour. Total harmonic distortion is 4% at no load and 7% at full load.

What it will run

At 9.2kVA prime and 10.1kVA standby, the GS009-ETT-S typically suits worksite and workshop loads such as lighting, power tools, a pump or compressor and a few circuits of a small building. At 240V, the prime rating is about 38A and the standby rating about 42A (watts divided by 240). Motors in pumps, compressors and air conditioners draw several times their running current at start, so allow headroom for the largest motor. Check the compliance plate on each appliance for its running and starting watts, then add them up. For building backup, connect through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size it.

The GS009-ETT-S suits worksites, workshops, rural properties and small commercial premises that need 240V single phase power, including as standby supply for a building.

Price on application. This set is quoted to suit your configuration and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Diesel generator, Isuzu 3TNV70 engine, made in Japan
• Brushless AVR alternator
• 9.2kVA prime / 10.1kVA standby rating
• 40 litre fuel tank
• Sound-attenuated enclosure
• Socket and hardwire operating modes, remote-start capable
• Automatic MEN switching and engine/generator protection
• Weight: 436 kg
• Dimensions (L x W x H): 130 x 64 x 84 cm
• Rated output (kW): 9.2kW prime / 10.1kW standby
• Voltage and frequency: 240V AC, 50Hz, single phase
• Power factor: 1.0
• Engine type: Water-cooled, 4-cycle diesel, 3 cylinders, 0.854L
• Engine speed: 3000rpm
• Starting: Electric start, 12V 20A charging system
• Total harmonic distortion: 4% at no load, 7% at full load
• Fuel consumption at prime rating: 3.7 L/h (approx.)
• Run time at prime rating: 10.5 hours (approx.)
• Controller: Mecc Alte GC250, manual or auto start, 2-wire remote start
• Protection: Low oil pressure and high coolant temperature shutdown; over current, over and under voltage, over and under frequency; shunt-trip main circuit breaker
• Lift point and mounting: Single centre lift point, four-point base mounting (with or without fork pockets)
