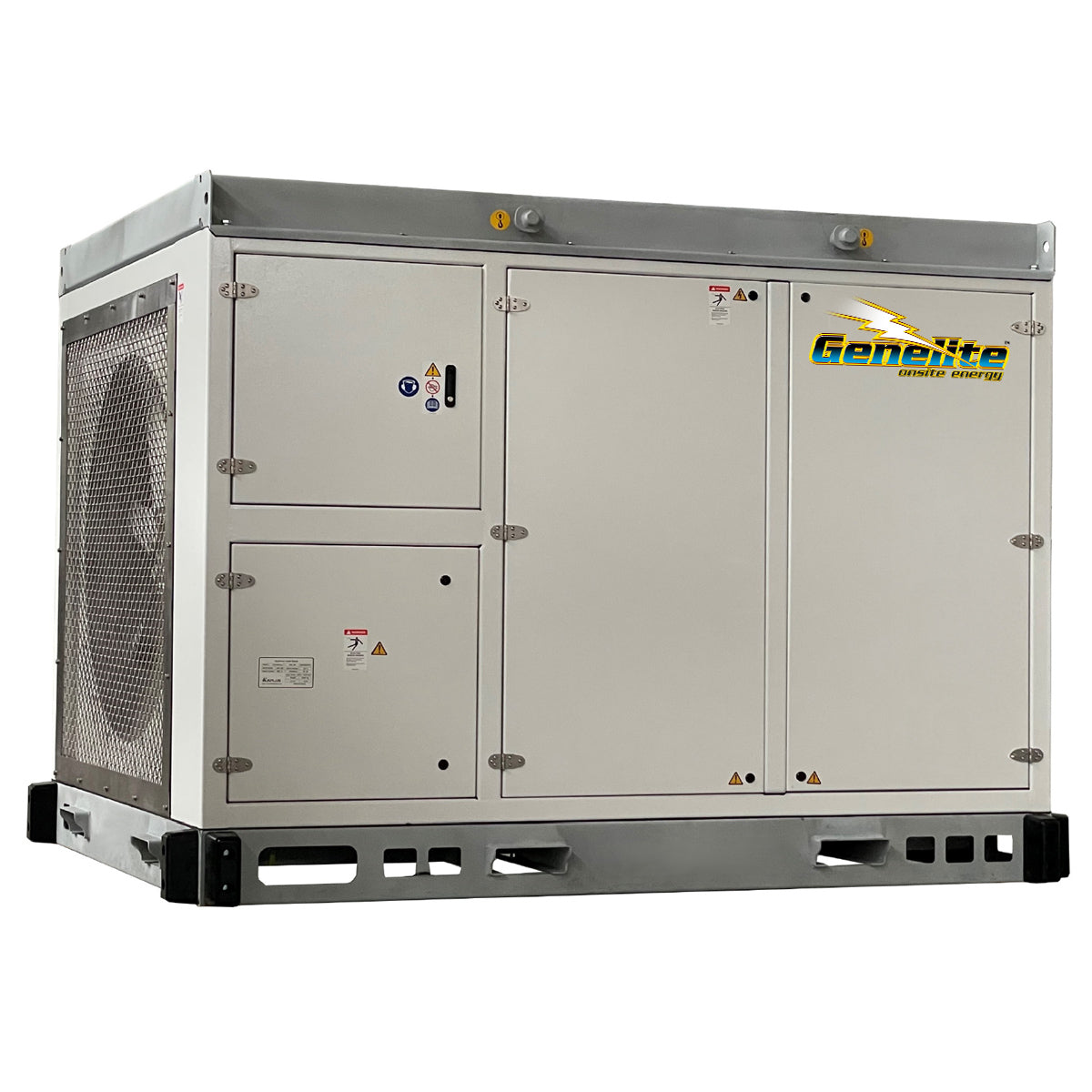

800kW Genelite Load Bank GLB-800

The GLB-800 is an 800 kW automatic resistive load bank for continuous duty at 415 V, 50 or 60 Hz and a power factor of 1. It is designed for permanent installation indoors or outdoors and is rated to operate in ambient temperatures up to 50°C.

Key features

• The control panel loads the connected generator automatically, which helps prevent wet stacking and cylinder glazing.
• Load cables connect at two M12 terminals per phase.
• Stainless steel elements sit in a galvanised steel canopy on a galvanised skid base, in a design aimed at Australian conditions.
• Fork pockets and a top lift are provided for positioning the unit with suitable lifting equipment.
• A 7-inch HMI instrument display sits at the control panel.

What it is for

The GLB-800 is for sites that routinely need to maintain minimum loads on standby generators or run on-site tests, including mining camps, data centres, commercial buildings, telecommunications, essential services, defence and pump stations. A resistive load bank applies real power (kW) and no reactive load, so size it from the generator's kW output (kVA multiplied by power factor). Installation and cable connection should be done by a licensed electrician. Send us your generator's make, model and rating and we will help you choose.

Price on application. Each load bank is quoted to your configuration and site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Automatic load bank rated 0-800 kW
• Resistive load type, continuous duty
• 415V output at 50/60 Hz, power factor of 1
• Rated for ambient temperatures up to 50°C
• Can be permanently installed indoors or outdoors
• Automatically maintains optimum generator load to help prevent wet-stacking and cylinder glazing
• Marketed for mining camps, data centres, telecoms, defence and pump-station use
• Weight: 2620 kg
• Dimensions (L x W x H): 254 x 196 x 193 cm
• Enclosure: Outdoor
• Airflow: 12 m³/s
• Terminals per phase: 2 x M12
• Display: 7-inch HMI instrument display
• Elements: Stainless steel
• Construction: Galvanised steel canopy and galvanised skid base
• Handling: Top lift with fork pockets
• Sound level: 92 dBA

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
