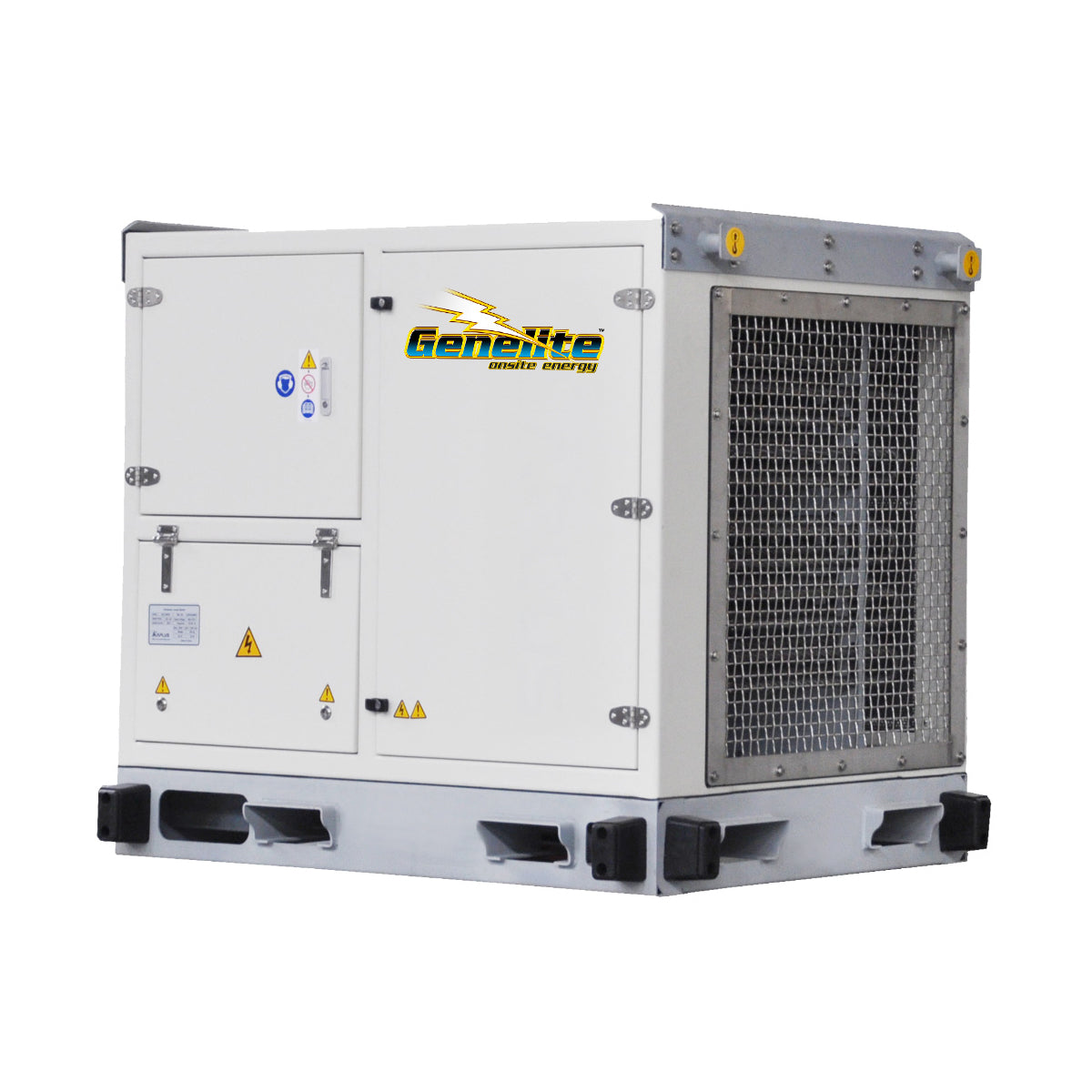

80kW Genelite Load Bank GLB-80

The GLB-80 is an automatic resistive load bank with a load range of 0 to 80 kW at 415 V and 50 or 60 Hz, unity power factor and a continuous duty rating. It is designed for permanent installation, indoors or outdoors.

Key features

• Load goes on in four equal 20 kW steps, so a generator is loaded in quarters of the 80 kW rating.
• A smart control panel keeps the generator at an optimum operating load, which helps prevent wet stacking and cylinder glazing.
• Rated for ambient temperatures up to 50°C, with a design aimed at Australian conditions.
• Stainless steel elements are fitted inside a galvanised steel canopy on a galvanised skid base.
• Fork pockets and a top lift allow the unit to be positioned with suitable lifting equipment.
• A 7-inch HMI instrument display sits at the control panel.
• Load cables land on one M12 terminal per phase.

What it is for

Cylinder glazing is a hard, glossy film that can form on the bore of an engine run at low load, and wet stacking is unburnt fuel building up in a diesel engine's exhaust. The GLB-80 is used to avoid both by maintaining a minimum load on a generator, and to run on-site tests. Typical sites are mining camps, data centres, commercial buildings, telecommunications and essential services, as well as defence and pump stations. The load is resistive, so it applies real power (kW) and no reactive load: size it from the generator's kW output (kVA multiplied by power factor), and send us the make, model and rating if you would like help.

Price on application. Each load bank is quoted to your configuration and site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 80 kW resistive load capacity
• Automatic operation via smart control panel
• 415V, 50/60Hz rated
• Continuous duty rating
• Operates in ambient temperatures up to 50°C
• Indoor or outdoor permanent installation
• Helps prevent wet-stacking and cylinder glazing
• Suited to mining, data centre, telecom, defence and pump station use
• Weight: 560 kg
• Dimensions (L x W x H): 146 x 116 x 128.7 cm
• Power factor: 1
• Enclosure: Outdoor
• Load steps: 20 / 20 / 20 / 20 kW
• Airflow: 2.4 m³/s
• Terminals per phase: 1 x M12
• Display: 7-inch HMI instrument display
• Elements: Stainless steel
• Construction: Galvanised steel canopy and galvanised skid base
• Handling: Top lift with fork pockets
• Sound level: 85 dBA

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
