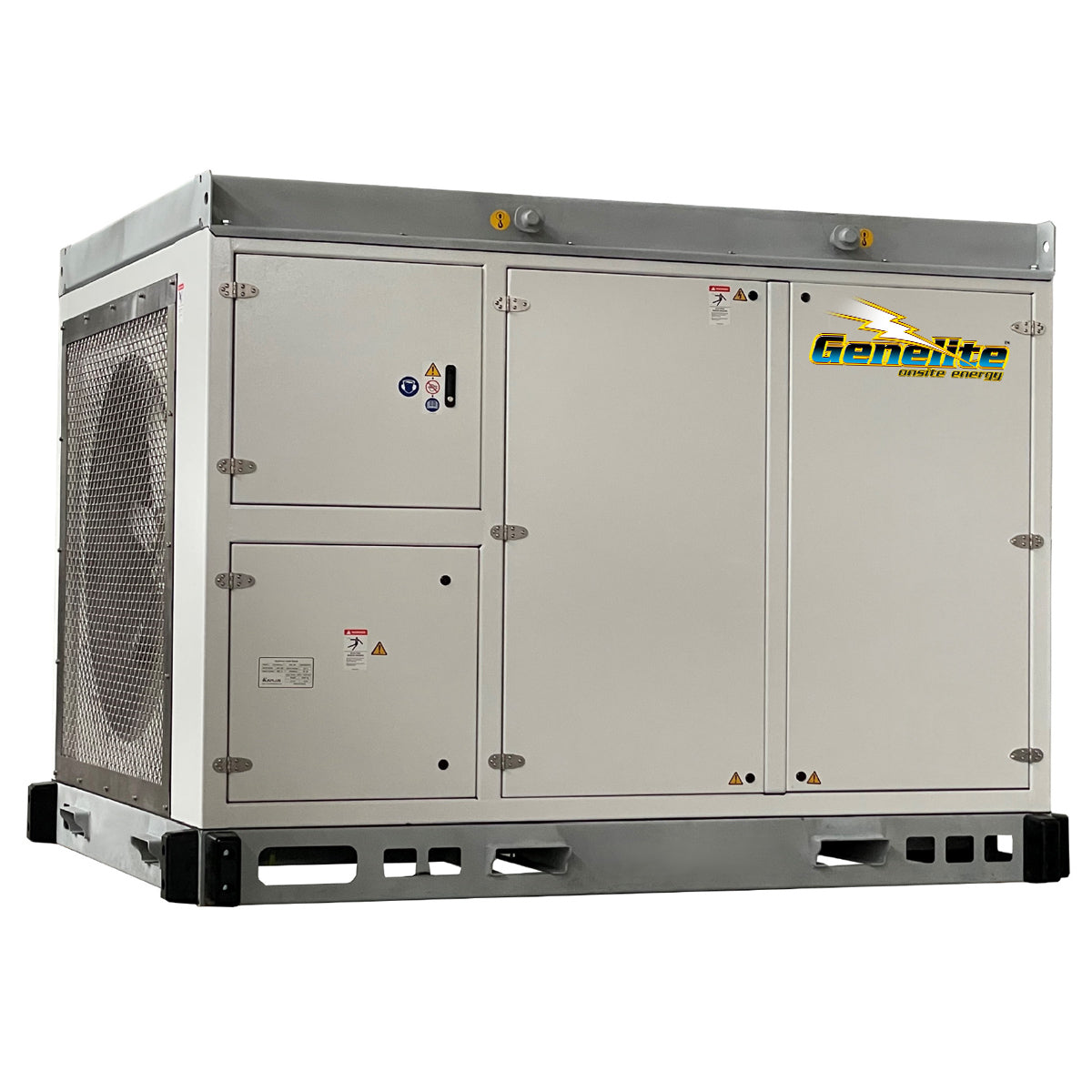

400kW Genelite Load Bank GLB-400

The GLB-400 is a permanently installable, automatic resistive load bank rated 0 to 400 kW, with a continuous duty rating at 415 V, 50 or 60 Hz and unity power factor. Its outdoor enclosure suits installation indoors or outdoors.

Key features

• The smart control panel maintains the generator's optimum operating load automatically, which helps prevent wet stacking and cylinder glazing.
• Load cables connect at two M12 terminals per phase.
• Designed for ambient temperatures up to 50°C and for Australian conditions.
• Stainless steel elements sit in a galvanised steel canopy, on a galvanised skid base.
• Fork pockets and a top lift allow the unit to be positioned with suitable lifting equipment.
• A 7-inch HMI instrument display sits at the control panel.

What it is for

The GLB-400 maintains a minimum load on a generator and supports on-site testing. It is aimed at mining camps, data centres, commercial buildings, telecommunications, essential services, defence and pump stations. Match the rating to the generator's kW output (kVA multiplied by power factor); a resistive load bank applies real power and no reactive load. Have a licensed electrician plan and make the connection. Send us the generator's make, model and rating and we will help you choose.

Price on application. Load banks are quoted to the configuration and the site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Automatic 0-400 kW resistive load bank
• Continuous duty rating at 415V, 50/60 Hz, power factor 1
• Smart control panel maintains optimum generator load automatically
• Helps prevent wet-stacking and cylinder glazing
• Rated for ambient temperatures up to 50°C
• Can be installed permanently indoors or outdoors
• Suited to mining camps, data centres, telecoms, defence, pump stations
• Weight: 1290 kg
• Dimensions (L x W x H): 241 x 176 x 193 cm
• Enclosure: Outdoor
• Airflow: 8.5 m³/s
• Terminals per phase: 2 x M12
• Display: 7-inch HMI instrument display
• Elements: Stainless steel
• Construction: Galvanised steel canopy and galvanised skid base
• Handling: Top lift with fork pockets
• Sound level: 82 dBA

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
