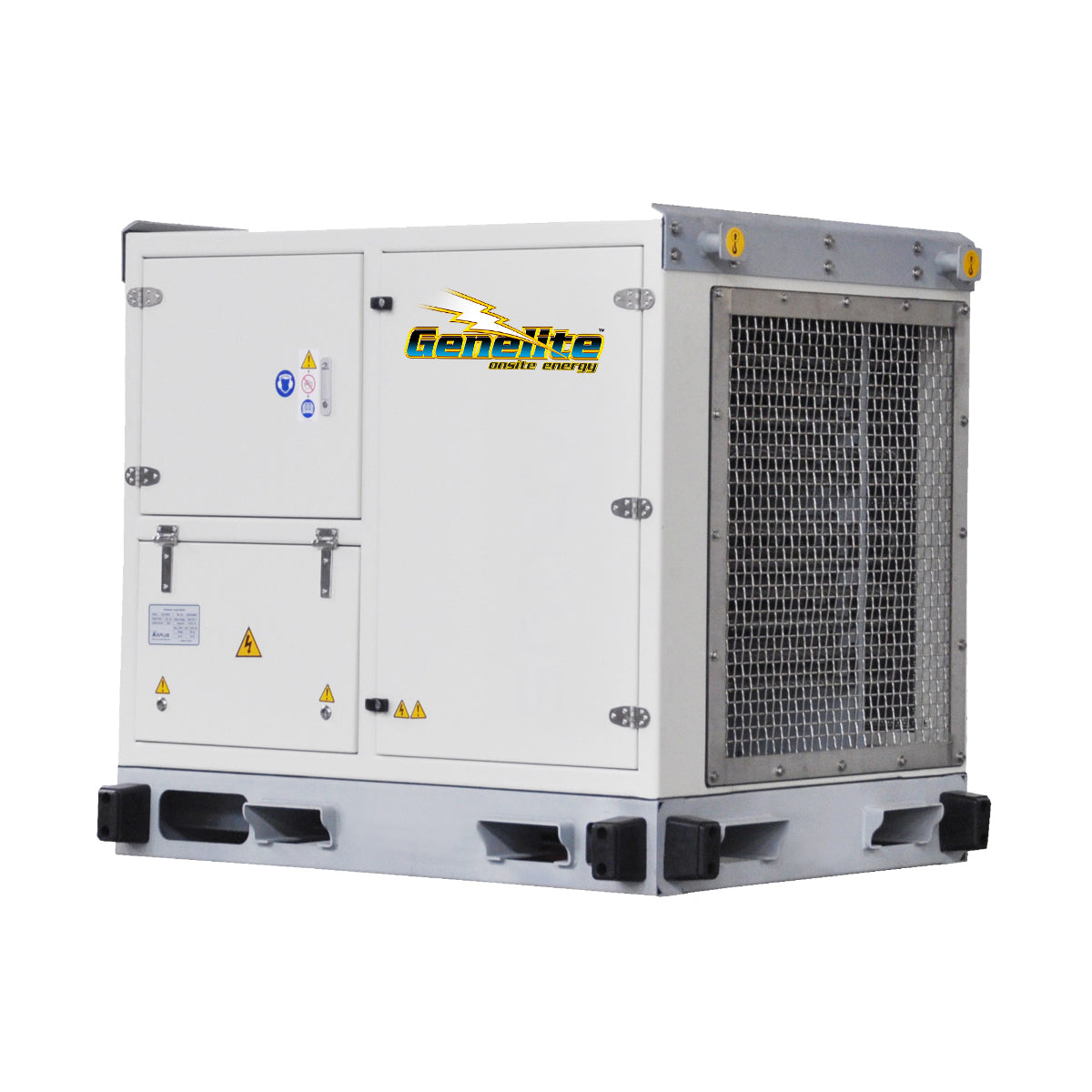

40kW Genelite Load Bank GLB-40

The GLB-40 is an automatic resistive load bank rated for continuous duty from 0 to 40 kW at 415 V, 50 or 60 Hz and a power factor of 1. Its outdoor enclosure can be installed permanently indoors or outdoors.

Key features

• The smart control panel keeps a connected generator at an optimum load without manual switching, which helps prevent wet stacking and cylinder glazing.
• Eight load steps, from 1 kW to 10 kW, give fine control up to 40 kW.
• Rated for ambient temperatures up to 50°C, with a rugged design aimed at Australian conditions.
• Stainless steel elements sit inside a galvanised steel canopy on a galvanised skid base.
• Fork pockets and a top lift provide handling points for positioning the unit with suitable lifting equipment.
• A 7-inch HMI instrument display sits at the control panel.
• The load connects at one M12 terminal per phase.

What it is for

The GLB-40 is intended for maintaining minimum generator loads and for on-site testing at mining camps, data centres, commercial buildings, telecommunications sites, essential services, defence sites and pump stations. A resistive load bank applies real power (kW) and no reactive load, so match the rating to the generator's kW output (kVA multiplied by power factor). Have a licensed electrician connect the load cables, and send us the generator's make, model and rating if you want help choosing a size.

Price on application. Each load bank is quoted to your configuration and site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Automatic operation, 0-40 kW resistive load range
• Continuous duty rating
• 415V, 50/60 Hz, power factor 1
• Can be permanently installed indoors or outdoors
• Rated for ambient temperatures up to 50 degrees C
• Smart control panel maintains optimum generator load
• Helps prevent wet stacking and cylinder glazing
• Suited to mining camps, data centres, telecoms, defence, and pump stations
• Weight: 580 kg
• Dimensions (L x W x H): 146 x 116 x 128.7 cm
• Enclosure: Outdoor
• Load steps: 1 / 2 / 2 / 5 / 5 / 5 / 10 / 10 kW
• Airflow: 1.8 m³/s
• Terminals per phase: 1 x M12
• Display: 7-inch HMI instrument display
• Elements: Stainless steel
• Construction: Galvanised steel canopy and galvanised skid base
• Handling: Top lift with fork pockets
• Sound level: 85 dBA

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
