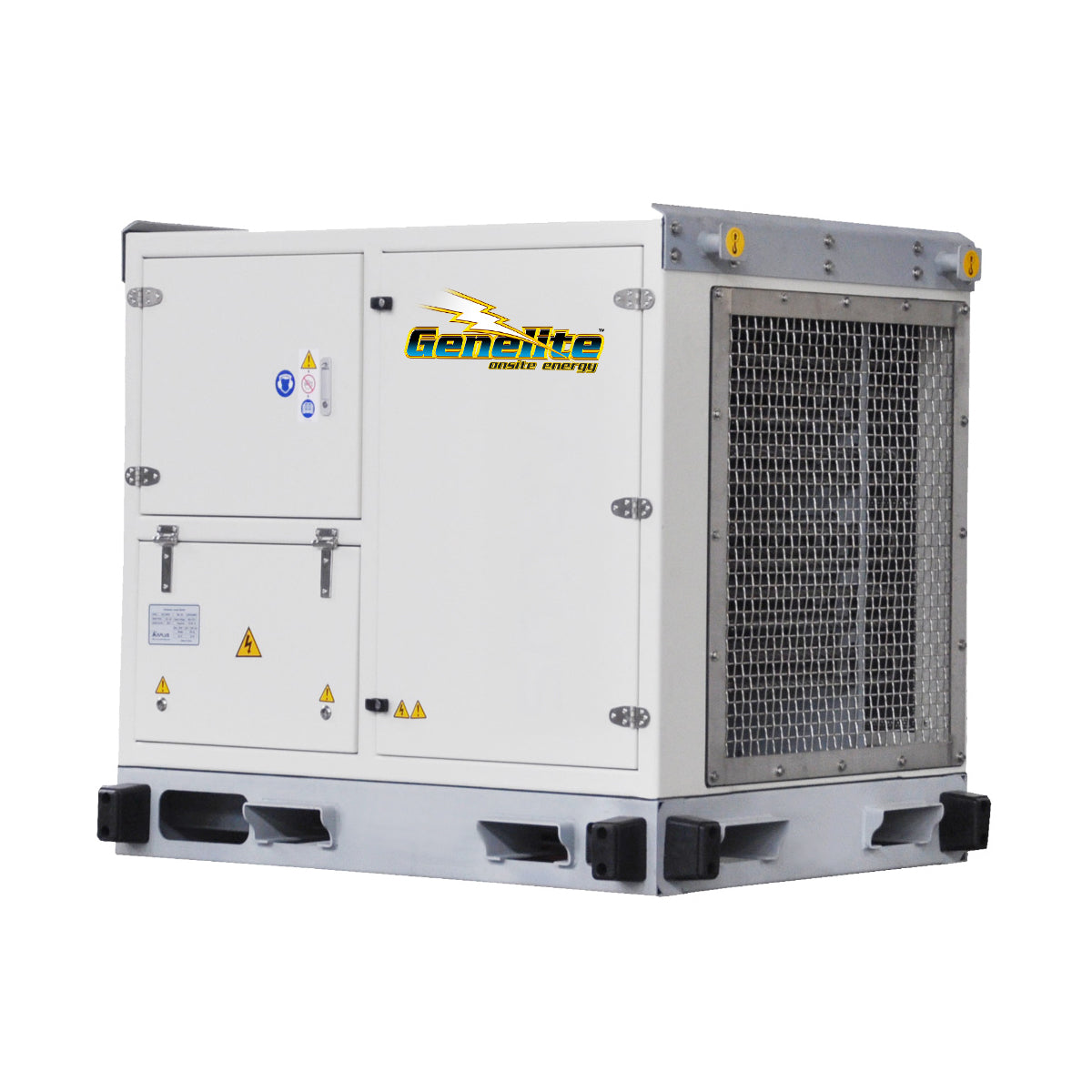

25kW Genelite Load Bank GLB-25

The GLB-25 is an automatic resistive load bank with a 0 to 25 kW load range at 415 V, 50 or 60 Hz and unity power factor. It is rated for continuous duty, has an outdoor enclosure, and can be installed permanently indoors or outdoors.

Key features

• A smart control panel holds the connected generator at an optimum load automatically, which helps prevent wet stacking and cylinder glazing.
• Seven load steps, from 1 kW to 5 kW, let you load a generator in fine increments up to 25 kW.
• Rated for ambient temperatures up to 50°C and designed for Australian conditions.
• A galvanised steel canopy and skid base with stainless steel elements suit permanent installation.
• Fork pockets and a top lift are built in for positioning the unit on site.
• A 7-inch HMI instrument display sits at the control panel.
• Load cables land on one M12 terminal per phase.

What it is for

A diesel generator that spends long periods on a light load can develop wet stacking, where unburnt fuel and carbon build up in the exhaust, and cylinder glazing. The GLB-25 is used to maintain a minimum load on a generator and for on-site testing, and it is aimed at mining camps, data centres, commercial buildings, telecommunications, essential services, defence and pump stations. Choose a rating that matches the generator's kW output (kVA multiplied by power factor), and send us the make, model and rating of your set if you want help with sizing.

Price on application. Load banks are quoted to the configuration and the site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 25 kW automatic resistive load bank
• 0-25 kW adjustable load, continuous duty
• 415V rated voltage, 50/60 Hz, power factor 1
• Smart control panel maintains optimum generator load
• Helps prevent wet stacking and cylinder glazing
• Rated for ambient temperatures up to 50°C
• Suited to mining, data centre, telecom, defence and pump station use
• Weight: 560 kg
• Dimensions (L x W x H): 146 x 116 x 128.7 cm
• Enclosure: Outdoor
• Load steps: 1 / 2 / 2 / 5 / 5 / 5 / 5 kW
• Airflow: 1.2 m³/s
• Terminals per phase: 1 x M12
• Display: 7-inch HMI instrument display
• Elements: Stainless steel
• Construction: Galvanised steel canopy and galvanised skid base
• Handling: Top lift with fork pockets
• Sound level: 85 dBA

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
