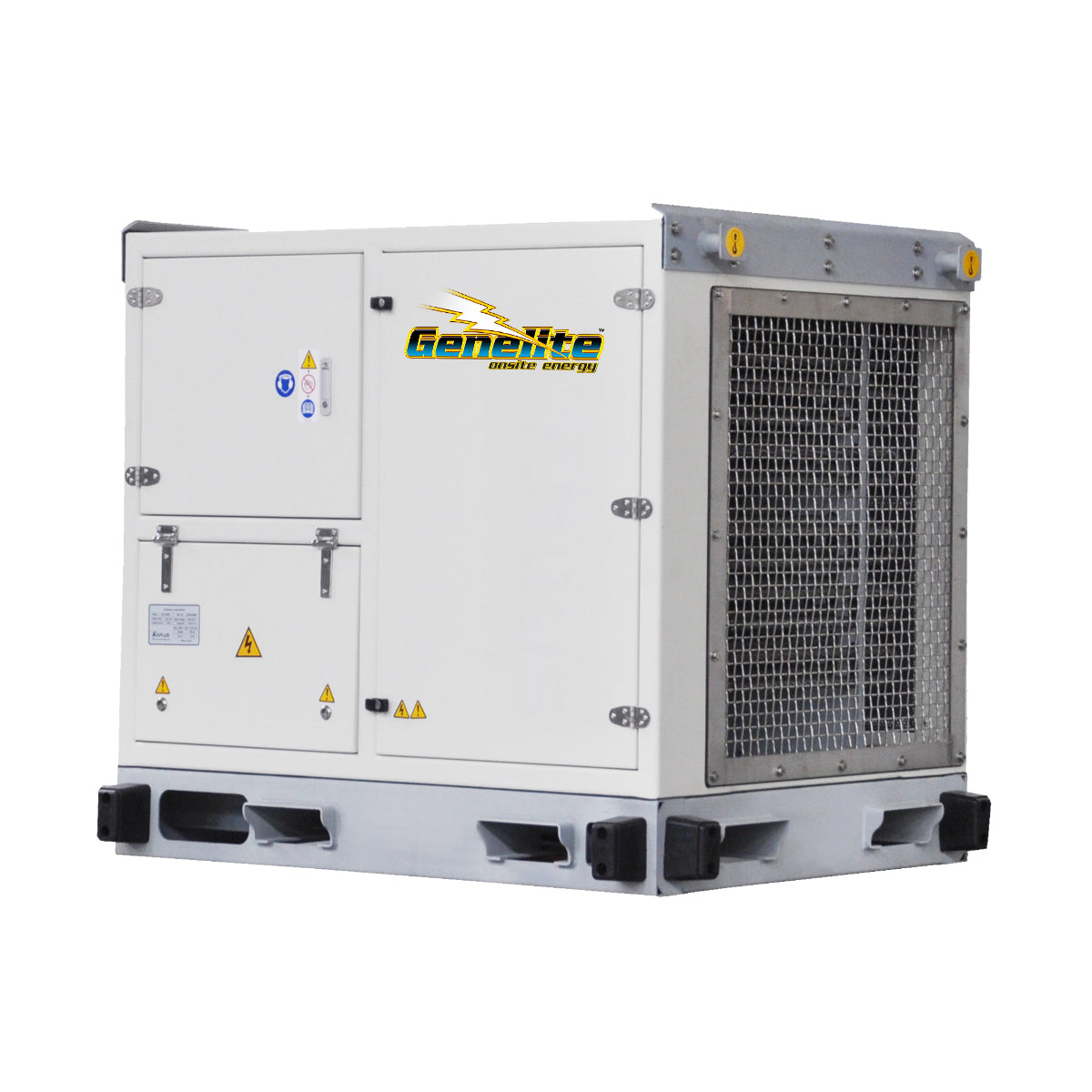

15kW Genelite Load Bank GLB-15

The Genelite GLB-15 kW is an automatic dummy load bank with a resistive load, rated for continuous duty from 0 to 15 kW. It operates at 415V and 50Hz or 60Hz with a power factor of 1, and connections are made at one M12 terminal per phase.

Key features

• A smart control panel automatically keeps a connected generator at an optimum operating load, which helps prevent wet stacking and cylinder glazing.
• Seven load steps of 1, 1, 2, 2, 2, 2 and 5 kW add up to the full 15 kW, so load can be built up in small increments.
• A 7 inch HMI instrument display gives the operator a dedicated interface.
• The rugged design is rated to operate in ambient temperatures up to 50°C.
• It can be permanently installed indoors or outdoors.
• A galvanised steel canopy, galvanised skid base and stainless steel elements make for a rugged build.
• Top lift and fork pockets are built in for moving the unit with lifting equipment.

Airflow is 1 cubic metre per second.

What it is for

A load bank puts a known electrical load on a generator. The GLB-15 kW suits generator applications that need a minimum load maintained and on-site testing. Typical sectors include mining camps, data centres, commercial buildings, telecommunications, essential services, defence and pump stations. Choose the load bank to suit the generator it will load: this one covers 0 to 15 kW. Send us the generator model and we will help you check the fit.

Price on application. This load bank is quoted to suit your configuration, options and site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Automatic operation, resistive load type
• Rated 0-15 kW, continuous duty
• 415V rated voltage, 50Hz/60Hz rated frequency, power factor 1
• Smart control panel keeps generators at optimum load
• Helps prevent wet stacking and cylinder glazing
• Rugged design rated to operate up to 50°C ambient
• Suitable for indoor or outdoor permanent installation
• Weight: 560 kg
• Dimensions (L x W x H): 146 x 116 x 128.7 cm
• Model: GLB-15 kW
• Load steps: 1 / 1 / 2 / 2 / 2 / 2 / 5 kW
• Terminals per phase: 1 x M12
• Airflow: 1 m3/s
• Sound level: 85 dBA
• Display: 7 inch HMI instrument display
• Construction: Galvanised steel canopy, galvanised skid base, stainless steel elements
• Handling: Top lift with fork pockets

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
