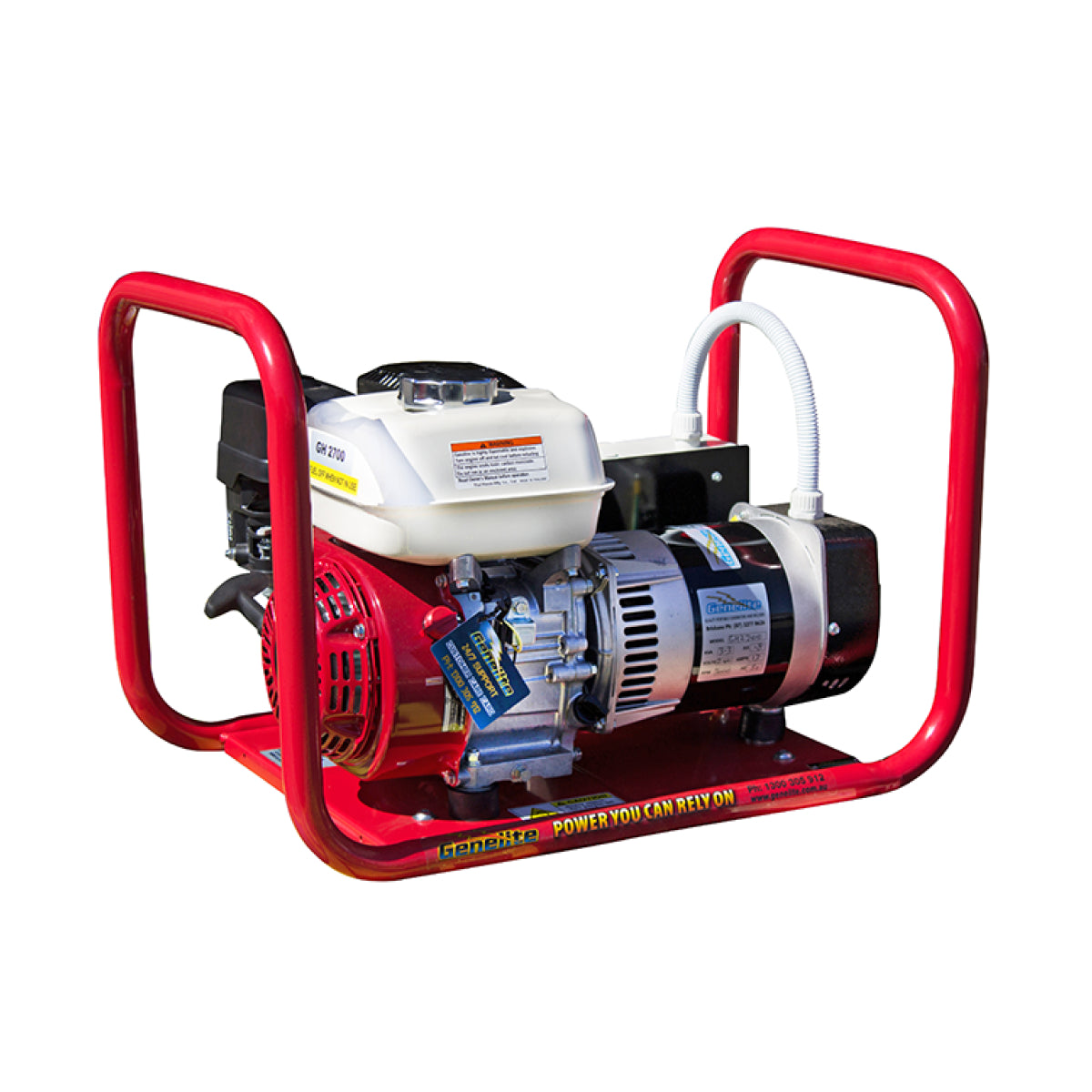

3.3kVA Honda Petrol Generator GH2700H Hire Spec

The GH2700H is a hire spec single phase petrol generator producing 2.7kW / 3.3kVA at 240V and 50Hz. A Honda overhead valve single cylinder engine running at 3000 rpm drives an AC synchronous brushless alternator with Class H insulation. Starting is by recoil, and a small roll frame surrounds the set.

Key features

• Two 10A 240V outlets have an IP66 rating, which means they are sealed against dust and strong water jets.
• The outlets are protected by circuit breakers and an RCD, which cut the circuit on an overload or an earth leakage fault.
• Recoil start needs no battery, so there is nothing to keep charged.
• Harmonic distortion is below 5%, so the supply suits electronic equipment alongside tools and pumps.
• The small roll frame guards the engine and alternator against knocks around a busy site.
• A 3 year limited warranty covers the Honda engine.

The 3.6 litre tank runs the set for 2.7 hours at 100% load or 4 hours at 60% load. Noise is 72 dB(A) at 7 m. Engine oil capacity is 0.6 litres.

What it will run

The GH2700H can supply about 11.3A in total at 240V (2700W divided by 240V), shared between its two outlets. Typically that suits site lighting, drills, grinders, saws, a small compressor, a transfer pump and chargers, as long as the combined load stays within the rated output. A motor draws several times its running current at start, so bring the largest load on first and add the rest once it has settled. Compliance plates give the running and starting figures for each appliance. If the set is to back up a building, a licensed electrician must install the inlet and changeover switch. Send us your load list and we will help with sizing.

The GH2700H suits hire fleets, worksites, events and small commercial jobs.

Key specifications

• Weight: 39 kg
• Dimensions (L x W x H): 67 x 45 x 52 cm
• Power output: 2.7kW / 3.3kVA
• Engine: Honda, overhead valve, single cylinder
• Engine speed: 3000 rpm
• Starting: Recoil start
• Phase and voltage: Single phase, 240V, 50Hz
• Fuel tank: 3.6 litres
• Run time: 2.7 hours at 100% load, 4 hours at 60% load
• Outlets: 2 x 10A 240V, IP66, with circuit breakers and RCD
• Noise level: 72 dB(A) at 7 m
• Alternator: AC synchronous brushless, Class H insulation, harmonic distortion less than 5%
• Engine oil capacity: 0.6 litres
• Engine warranty: 3 years limited

Part of the Honda range at Gen4Sale.
