2.5kVA Honda Petrol Generator GH2000H Hire Spec

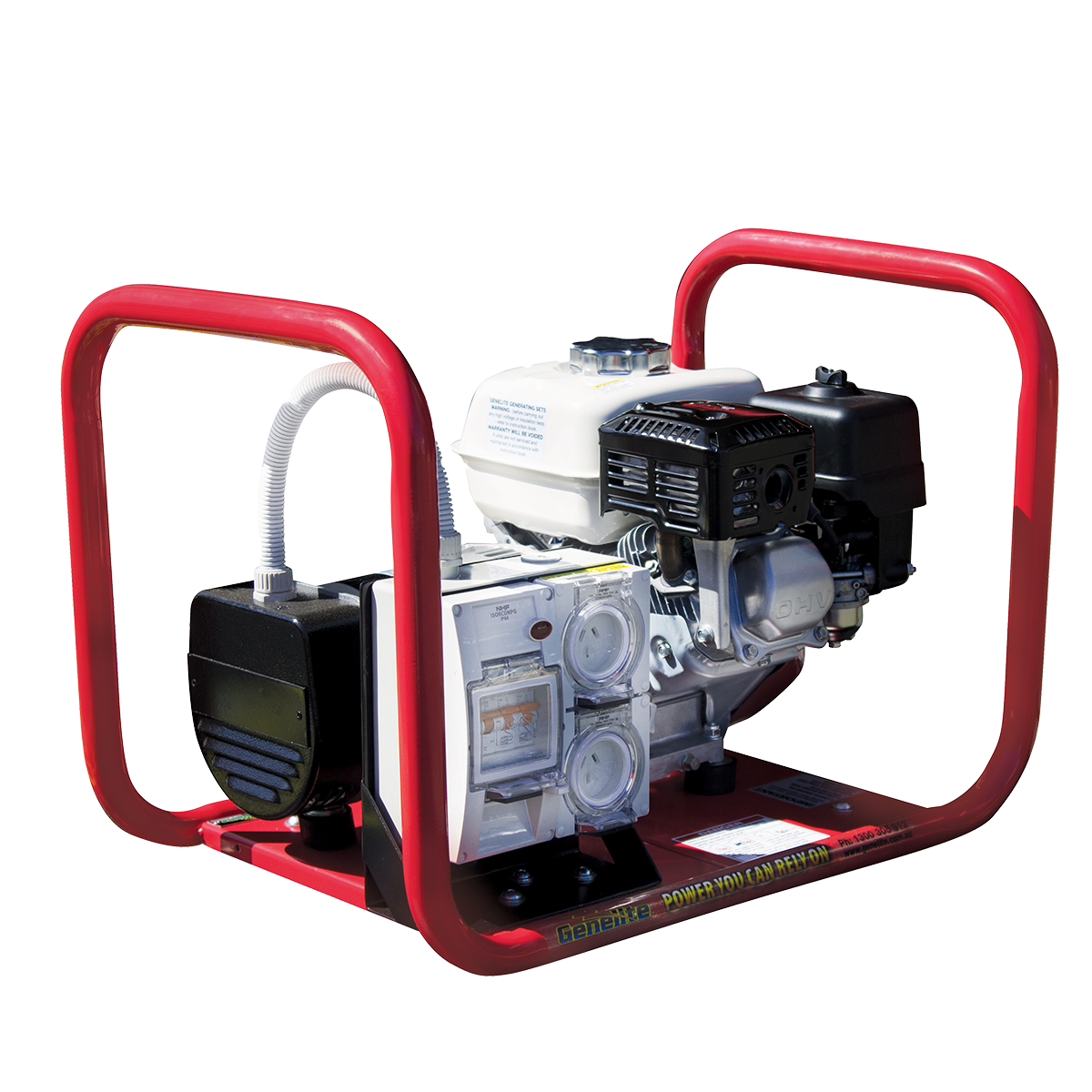

The GH2000H is a hire spec single phase petrol generator producing 2kW / 2.5kVA at 240V and 50Hz. A Honda GX160, an overhead valve single cylinder engine running at 3000 rpm, drives an AC synchronous brushless alternator with Class H insulation. Starting is by recoil, and a small roll frame surrounds the set.

Key features

• Two 10A 240V outlets are rated IP66, which means they are sealed against dust and strong water jets.
• Circuit breakers and RCD protection on the outlets trip the circuit on an overload or an earth leakage fault.
• Recoil start has no battery to charge or go flat, which keeps starting simple.
• Harmonic distortion is below 5%, so the supply suits electronic equipment as well as tools.
• The small roll frame protects the engine and alternator from knocks around a worksite.
• The Honda engine is covered by a 3 year limited warranty.

The 3.6 litre tank runs the set for 3.1 hours at 100% load or 5 hours at 60% load. Noise is 72 dB(A) at 7 m. Engine oil capacity is 0.6 litres.

What it will run

The GH2000H can supply about 8.3A in total at 240V (2000W divided by 240V), shared between its two outlets. Typically that suits site lighting, drills, grinders, a small compressor, a transfer pump and chargers, as long as the combined load stays within the rated output. Motors draw several times their running current at start, so bring the largest load on first and add the rest after it settles. The compliance plate on each appliance gives its running and starting figures. If the set is to back up a building, a licensed electrician must install the inlet and changeover switch. Not sure it is the right size? Send us your load list and we will help with sizing.

The GH2000H suits hire fleets, building sites, events and small commercial jobs.

Key specifications

• Weight: 35 kg
• Dimensions (L x W x H): 67 x 45 x 52 cm
• Power output: 2kW / 2.5kVA
• Engine: Honda GX160, overhead valve, single cylinder
• Engine speed: 3000 rpm
• Starting: Recoil start
• Phase and voltage: Single phase, 240V, 50Hz
• Fuel tank: 3.6 litres
• Run time: 3.1 hours at 100% load, 5 hours at 60% load
• Outlets: 2 x 10A 240V, IP66, with circuit breakers and RCD
• Noise level: 72 dB(A) at 7 m
• Alternator: AC synchronous brushless, Class H insulation, harmonic distortion less than 5%
• Engine oil capacity: 0.6 litres
• Engine warranty: 3 years limited

Part of the Honda range at Gen4Sale.
