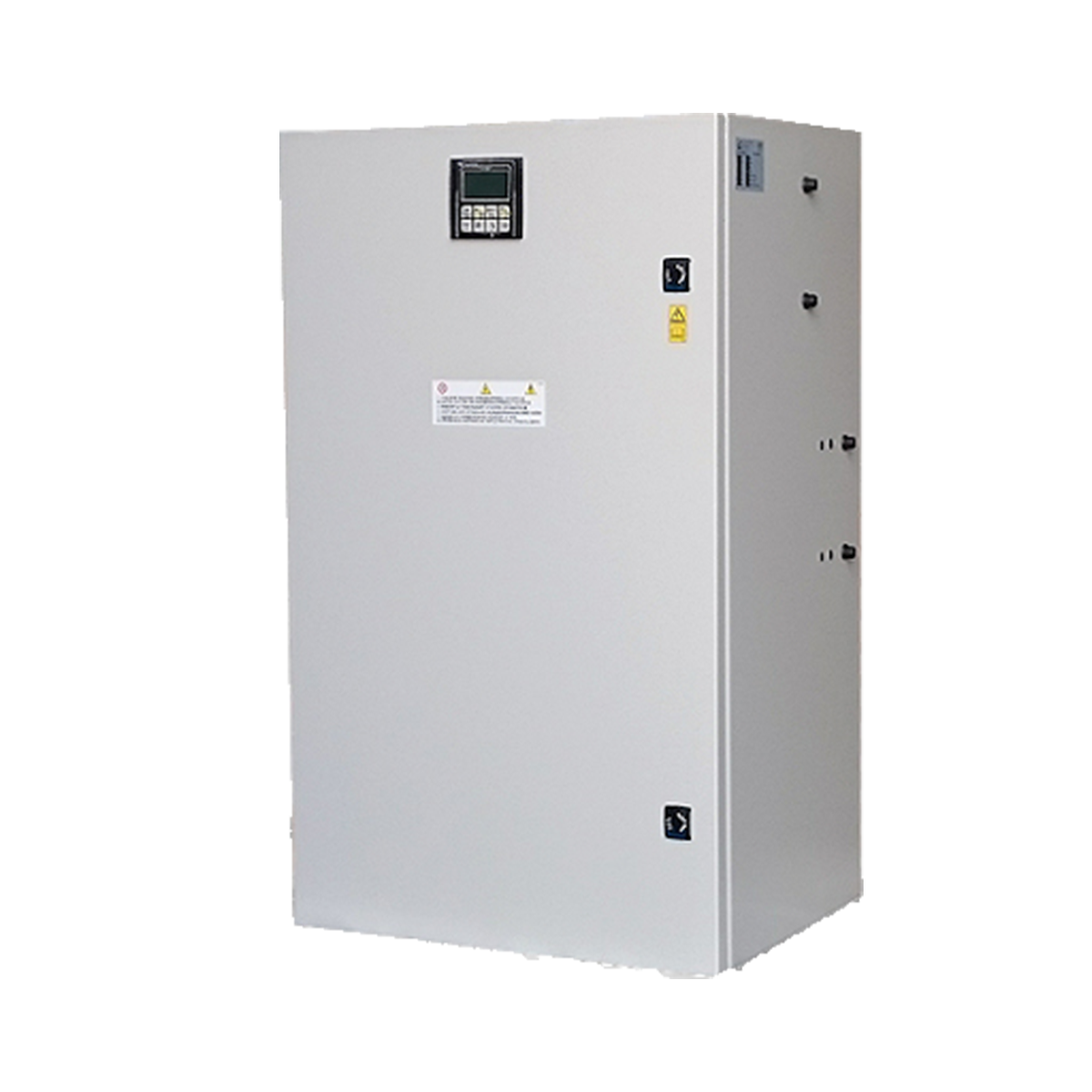

Genelite GATSI40160 Automatic Transfer Switch

The Genelite GATSI40160 is a 160A, three phase automatic transfer switch with motorised changeover, for auto-start three phase generators up to 111kVA. An automatic transfer switch joins the mains, a generator and a site's switchboard: when the mains fails it signals the generator to start and moves the load across, then transfers back once the mains returns.

Key features

• A 160A three phase rating with motorised changeover: a motor drives the switching between mains and generator, so the transfer needs no one at the switchboard.
• It is sized for auto-start three phase generators up to 111kVA, which makes it straightforward to match to the generator.
• The ATS-I controller has a graphical display and alarms, so you can see what the switch is doing and be alerted when something needs attention.
• The steel enclosure is IP55 rated, meaning it is protected against dust ingress and against water jets from any direction.
• The switch carries a 2 year warranty.

Where it fits

The GATSI40160 suits three phase installations backed by an auto-start generator up to 111kVA. Match a transfer switch to its generator by phase and kVA, not by amp rating alone, and have a licensed electrician install it between the mains, the generator and the switchboard. Send us your generator's make and model and we will help you check the match.

Key specifications

• Rating: 160A, three phase, motorised changeover
• Suits: Auto-start three phase generators up to 111kVA
• Controller: ATS-I with graphical display and alarms
• Enclosure: IP55 rated steel
• Dimensions (L x W x H): 75 x 50 x 25 cm
• Warranty: 2 years

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
