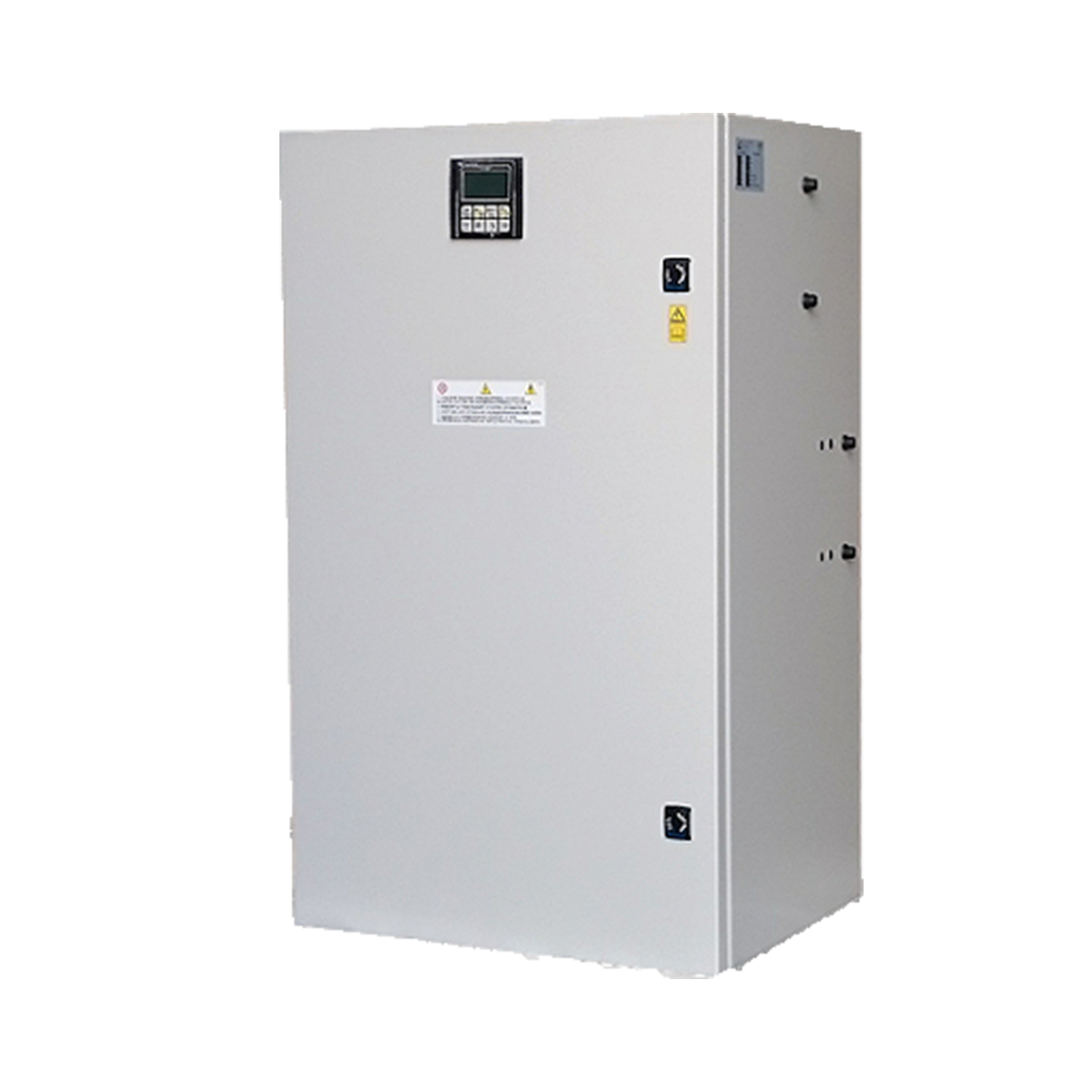

Genelite GATSI40100 Automatic Transfer Switch

Once a site's generator passes 40kVA or so, the transfer switch stops being an accessory and becomes switchgear. The GATSI40100 is built for exactly that tier: a 100 amp three phase automatic transfer panel for auto-start generators in the 44 to 66kVA band.

It runs Genelite's ATS-I controller with a graphical display for measurements, alarms and system state, full three phase voltage monitoring on both mains and generator, automatic changeover with manual override buttons, and phase sequence protection, all inside an IP55 rated steel enclosure.

Panels at this rating connect into commercial switchboards, so specification and installation belong with your electrician or switchboard builder. Send us the generator model and site details and we will confirm the correct panel before anything is ordered.

Key specifications

• Rating: 100A, three phase
• Suits: Auto-start three phase generators, 44 to 66kVA
• Controller: ATS-I with graphical display and alarms
• Enclosure: IP55 rated steel
• Dimensions: 50 x 40 x 20 cm
• Warranty: 2 years

Part of the Genelite transfer switch range at Gen4Sale, covering single and three phase generators from 5kVA to 180kVA.
