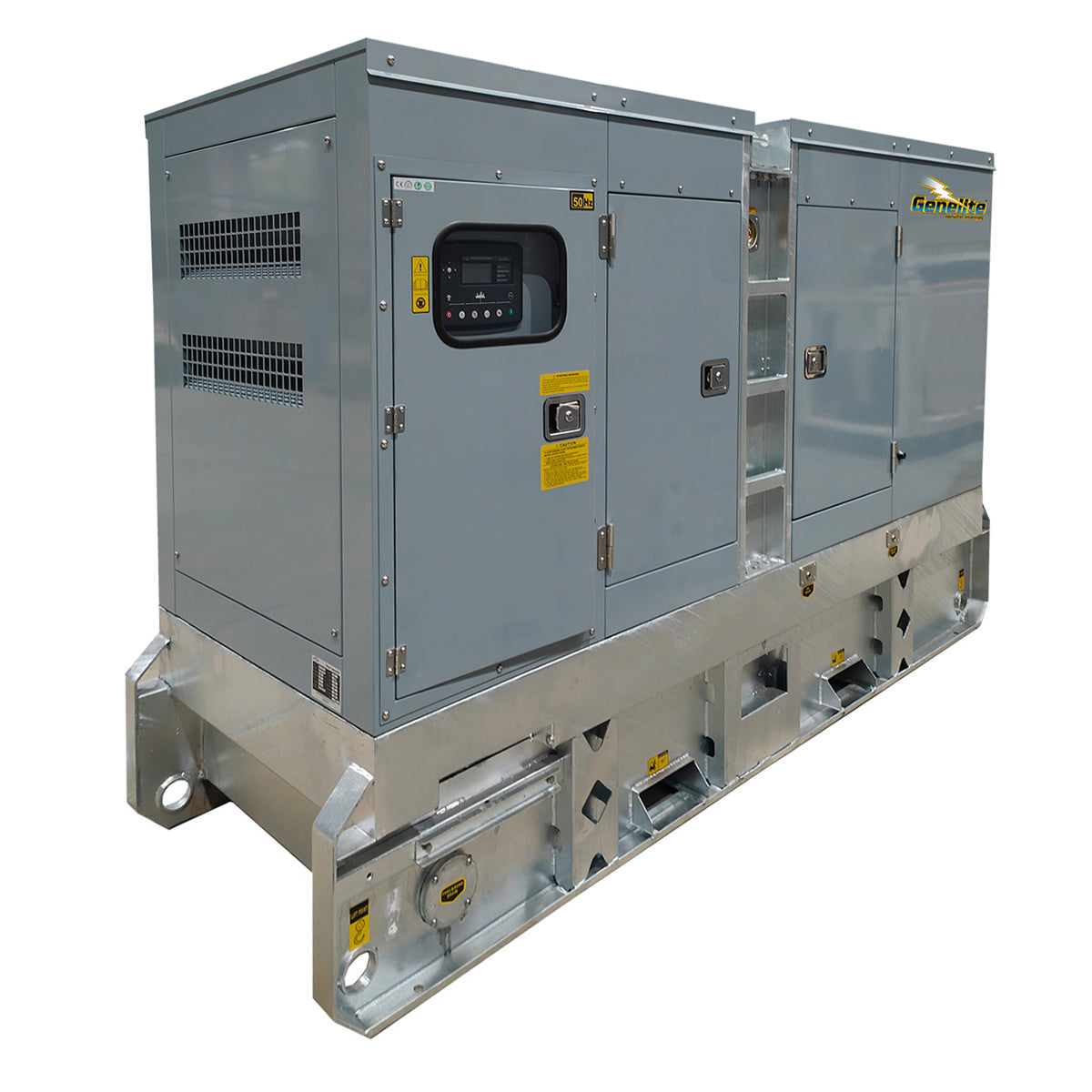

90kVA Cummins Diesel Generator GCM80S

The GCM80S is a 90kVA three phase diesel generator set powered by a Cummins 4BTA3.9G11, a four cylinder, 3.9 litre, turbocharged and aftercooled engine running at 1500rpm. Its Mecc Alte ECP32-2L4C brushless alternator with AVR supplies 415V at 50Hz. Ratings are 80kVA / 64kW prime and 90kVA / 72kW standby, and an electronic governor regulates engine speed.

Key features

• The 450 litre bunded tank is rated for up to 34 hours at 75% load, which is more than a day of running before refuelling.
• A DeepSea 7320 MKII controller and a four pole circuit breaker are fitted, and the breaker switches the neutral as well as the phases.
• The hot-dip galvanised skid base has fork pockets for forklift handling, and the canopy is galvanised and powder coated.
• A battery charger keeps the starting battery charged, and an isolator disconnects it for servicing.
• Harmonic distortion is under 5%, which suits sensitive electronic equipment.

Fuel use is 17.6 litres an hour at full load, 13.2 litres at 75% load and 9.1 litres at 50% load. Oil capacity is 10.9 litres and coolant capacity is 19.7 litres. The prime rating is continuous running at variable load, at an average load factor of 75%, with 10% overload for one hour in 12. The standby rating is for emergency supply at an average load factor of 85%, with no overload and a limit of 400 hours a year.

What it will run

At 90kVA standby (80kVA prime), the GCM80S is in the size range used for small factories, workshops, farms, building sites and commercial premises. Typical loads are lighting, pumps, compressors, refrigeration and three phase machinery. List what must run at the same time, then check the starting demand of your largest motor, which can be several times its running current. Spread single phase loads evenly across the phases and check each machine's compliance plate. Connection to site wiring should go through a changeover or transfer switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GCM80S suits workshops, small factories, farms, building sites, commercial premises and pumping stations that need three phase power on site, for emergency backup or as a working supply.

Key specifications

• 3-phase, 1500 RPM Cummins 4BTA3.9G11 engine
• 80 kVA prime / 90 kVA standby power
• 450L bunded fuel tank
• Up to 34 hours runtime at 75% load
• 73 dB(A) @ 7m noise level
• Hot-dip galvanised skid base with fork pockets
• Deep Sea 7320 MKII controller
• Free fuel and oil filter kit included
• Weight: 1490 kg
• Dimensions (L x W x H): 252 x 100 x 171 cm
• Rated output: Prime 80kVA / 64kW, standby 90kVA / 72kW
• Engine configuration: 4 cylinders, 3.9 L, turbocharged and aftercooled, electronic governor
• Alternator: Mecc Alte ECP32-2L4C, brushless with AVR
• Voltage and frequency: Three phase, 415V, 50Hz
• Fuel consumption: 17.6 L/h at 100% load, 13.2 L/h at 75% load, 9.1 L/h at 50% load
• Circuit breaker: Four pole
• Capacities: Oil 10.9 L, coolant 19.7 L
• Harmonic distortion: Under 5%
• Insulation class: Class H

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
