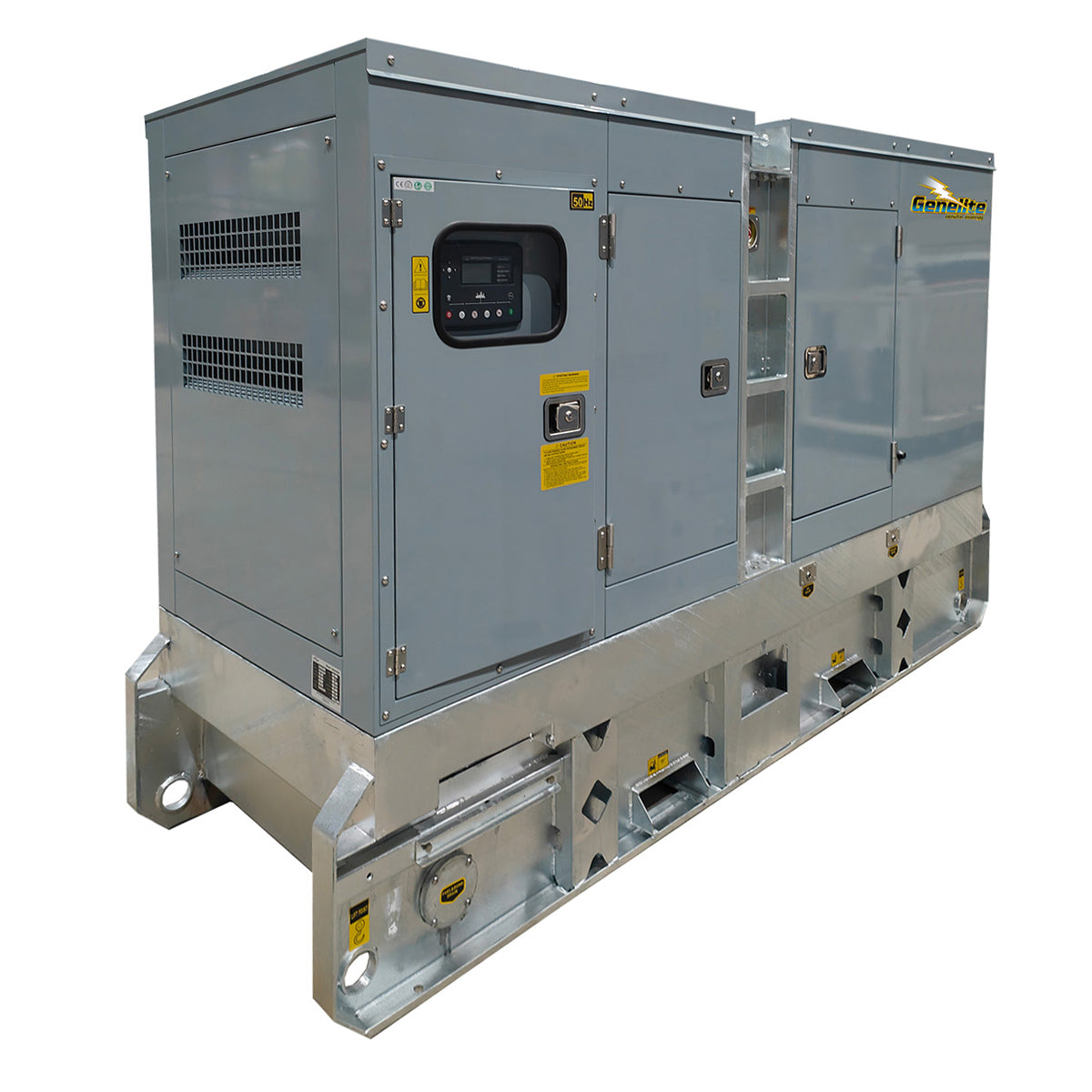

500kVA Cummins Diesel Generator GCM450S

The GCM450S is a three phase, 415V, 50Hz diesel generator set powered by a Cummins QSZ13-G3, a six cylinder, 13 litre, turbocharged and aftercooled engine running at 1500 rpm. It is rated at 450kVA / 360kW prime power and 500kVA / 400kW standby power. The alternator is a brushless Mecc Alte ECO40-2S4A with an AVR.

Key features

• The electronic governor holds engine speed steady as the load changes.
• Harmonic distortion of less than 5% makes the supply suitable for sensitive electronic equipment.
• The silenced canopy is rated at 77 dB(A) at 7 m, so you can plan the site around a measured noise figure.
• The 1780 litre fuel tank is bunded, which helps contain any leak.
• Integrated fork pockets in the base let a forklift handle the set.
• A Deep Sea 7320 MKII controller and a four pole circuit breaker provide monitoring, control and output protection.
• A battery charger and isolator are fitted, so the starting battery stays charged and can be disconnected for servicing.

The tank gives 24 hours of running at 75% load. Fuel consumption is 101 litres an hour at 100% load, 74.2 at 75% and 48.9 at 50%. Engine oil capacity is 75.3 litres and coolant capacity is 77 litres. A fuel and oil filter kit is included, and the set is load and function tested.

What it will run

At 360kW prime (400kW standby), the GCM450S typically suits the combined three phase demand of a large industrial site or building: production lines, chillers, big pumps and compressors, and building services. Specify it from a site load schedule rather than the nameplate, and have an electrician or engineer assess running loads, motor starting and balance across the phases. The compliance plate on each large motor gives its running and starting load. Prime power is for variable load at an average 75% load factor. Standby power is for emergency supply at an average 85% load factor, limited to 400 hours a year. A building is connected through a changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GCM450S suits heavy industry, large commercial and retail complexes, water and wastewater infrastructure, processing plants and major construction sites.

Price on application. Sets this size are quoted to your configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 450 kVA prime / 500 kVA standby, three-phase, 1500 RPM diesel generator
• Cummins QSZ13-G3 engine, Mecc Alte alternator
• 1780 L bunded fuel tank, up to 24 hours runtime at 75% load
• Silenced canopy rated 77 dB(A) @ 7m
• Integrated fork pockets for transport
• Deep Sea 7320 MKII controller with battery charger, isolator, 4-pole breaker
• Free fuel and oil filter kit included
• Supplied fluids-filled, load & function tested, ready to run
• Weight: 5800 kg
• Dimensions (L x W x H): 466 x 164 x 255 cm
• Prime power: 450kVA / 360kW
• Standby power: 500kVA / 400kW
• Voltage and frequency: 415V, 50Hz, three phase
• Engine configuration: 6 cylinder, 13 L, turbocharged and aftercooled
• Governor: Electronic
• Alternator: Mecc Alte ECO40-2S4A, brushless with AVR
• Harmonic distortion: Less than 5%
• Insulation class: Class H
• Fuel consumption: 101 L/h at 100% load, 74.2 L/h at 75% load, 48.9 L/h at 50% load
• Capacities: Engine oil 75.3 L, coolant 77 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
