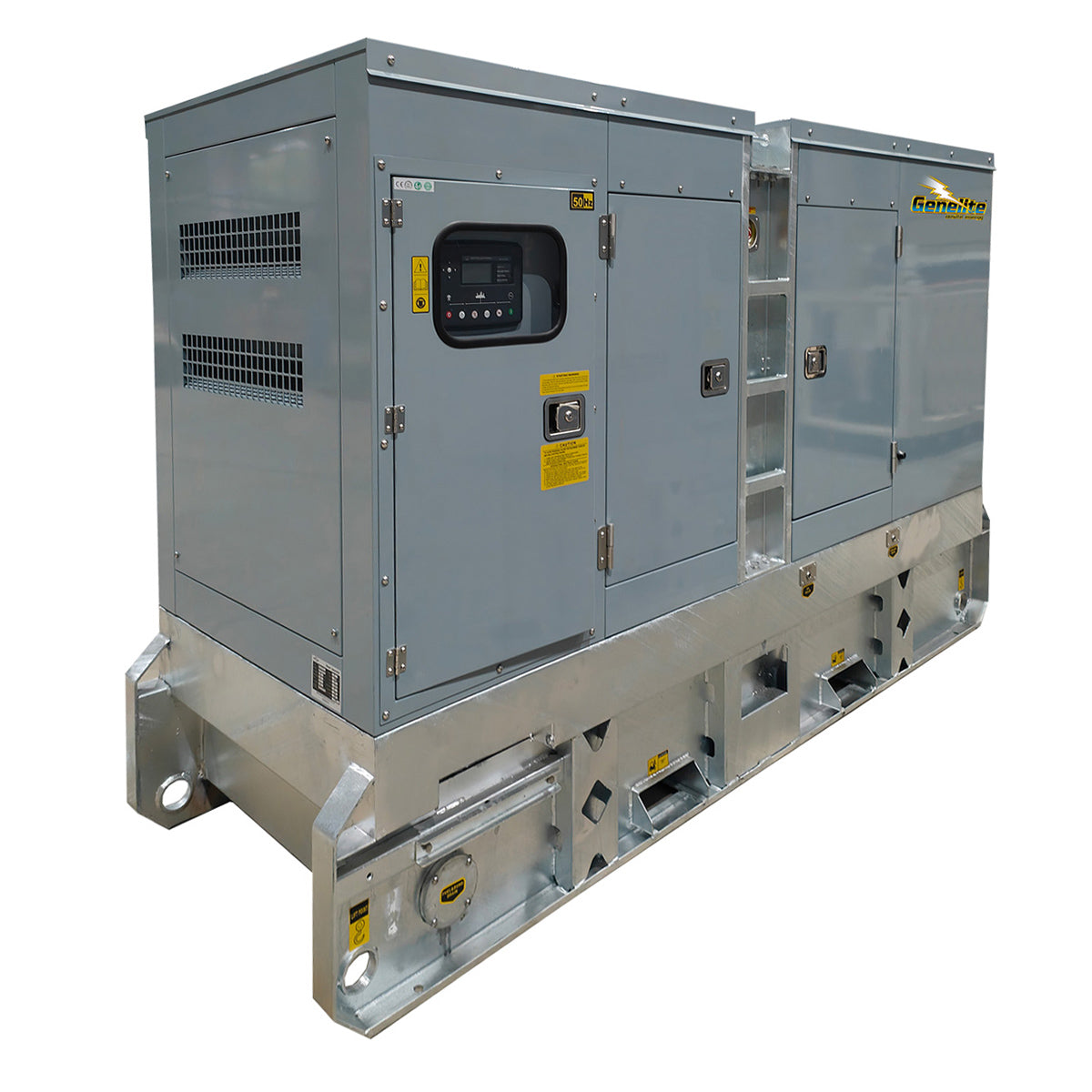

413kVA Cummins Diesel Generator GCM375S

The GCM375S is a three phase, 415V, 50Hz diesel generator set powered by a Cummins NTAA855G7, a six cylinder, 14 litre, turbo aftercooled engine running at 1500 rpm. It is rated at 375kVA / 300kW prime power (PRP) and 413kVA / 330kW standby power (ESP). The alternator is a brushless Mecc Alte ECO40-1S4A with an AVR.

Key features

• The electronic governor holds engine speed steady as the load changes.
• Harmonic distortion of less than 5% makes the supply suitable for sensitive electronic equipment.
• The silenced canopy is rated at 75 dB(A) at 7 m, so you can plan the site around a measured noise figure.
• The 1500 litre fuel tank is bunded, which helps contain any leak.
• A heavy duty skid base with integrated fork pockets suits forklift handling, and the canopy is galvanised and powder coated to resist corrosion.
• A Deep Sea 7320 MKII controller and a four pole circuit breaker provide monitoring, control and output protection.
• A battery charger and isolator are fitted, so the starting battery stays charged and can be disconnected for servicing.

Engine oil capacity is 38.6 litres and coolant capacity is 45 litres. Each set has been load and function tested and comes with a fuel and oil filter kit.

What it will run

At 300kW prime (330kW standby), the GCM375S typically suits large three phase loads: process plant, chillers, pumps, compressors and the starting load of big motors. Size it from a site load schedule rather than the nameplate, and ask an electrician or engineer to assess running loads, motor starting and balance across the phases. The compliance plate on each large motor gives its running and starting load. Prime power (PRP) is for variable load for unlimited hours a year at an average 75% load factor, with 10% overload for one hour in twelve. Standby power (ESP) is for emergency supply at an average 85% load factor, with no overload and a limit of 400 hours a year. A building is connected through a changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GCM375S suits factories, shopping centres and large commercial buildings, cold storage, quarries, pumping stations and major construction sites.

Price on application. Sets this size are quoted to your configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 375 kVA prime / 413 kVA standby, three-phase, 1500 RPM diesel generator
• Cummins NTAA855G7 engine, Mecc Alte alternator
• 1500 L bunded fuel tank, up to 24 hours runtime at 75% load
• Silenced canopy rated 75 dB(A) @ 7m
• Heavy-duty skid base with integrated fork pockets
• Deep Sea 7320 MKII controller with battery charger, isolator, 4-pole breaker
• Free fuel and oil filter kit included
• Supplied fluids-filled, load & function tested, ready to run
• Weight: 4850 kg
• Dimensions (L x W x H): 466 x 164 x 240 cm
• Prime power (PRP): 375kVA / 300kW
• Standby power (ESP): 413kVA / 330kW
• Voltage and frequency: 415V, 50Hz, three phase
• Engine configuration: 6 cylinder, 14 L, turbo aftercooled
• Governor: Electronic
• Alternator: Mecc Alte ECO40-1S4A, brushless with AVR
• Harmonic distortion: Less than 5%
• Insulation class: Class H
• Fuel consumption: 83.8 L/h at 100% load, 62 L/h at 75% load, 42 L/h at 50% load
• Capacities: Engine oil 38.6 L, coolant 45 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
