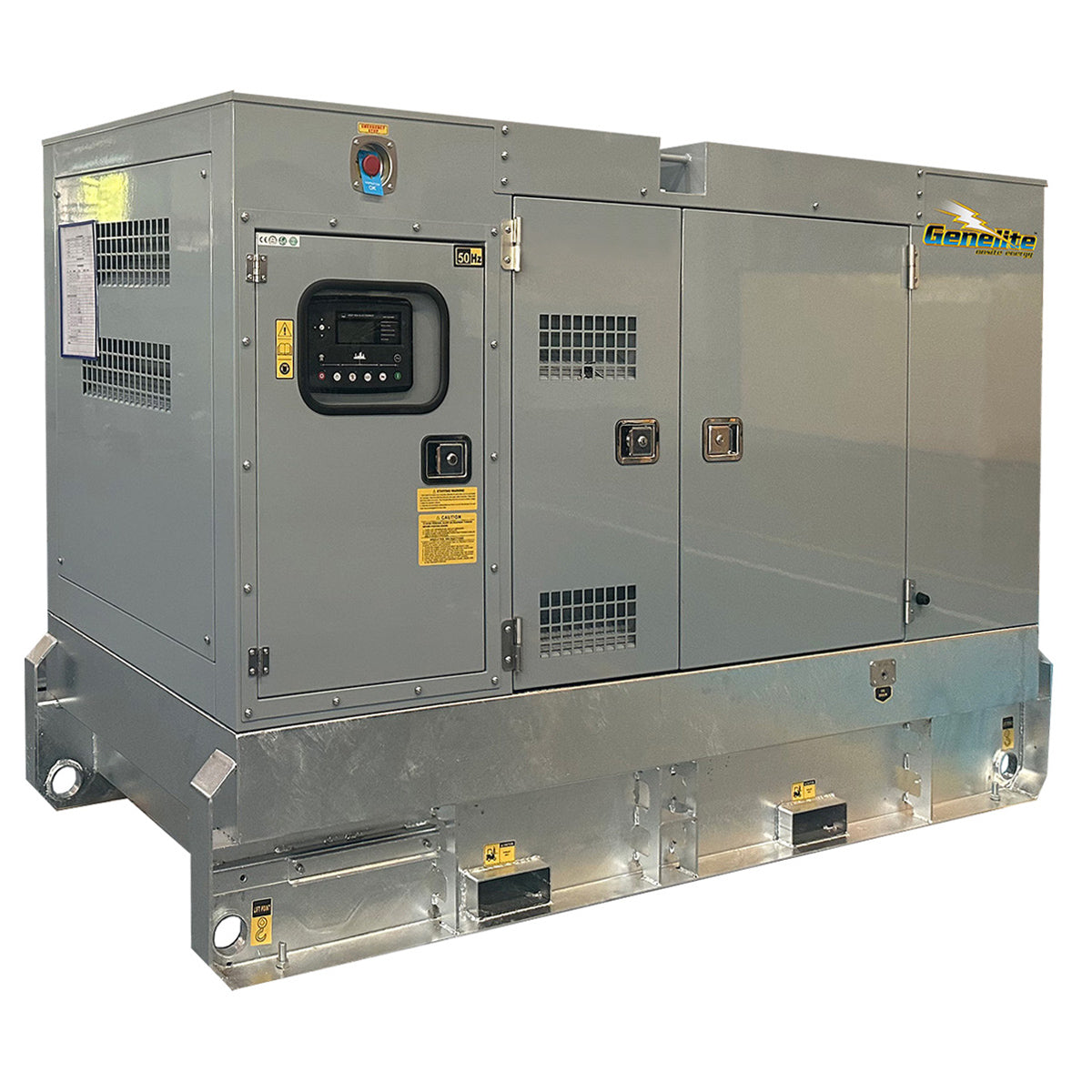

33kVA Cummins Diesel Generator GCM30S

The GCM30S is a three phase, 415V, 50Hz diesel generator set built around a Cummins 4B3.9G1, a four cylinder, 3.9 litre, naturally aspirated engine running at 1500 rpm. It is rated at 30kVA / 24kW prime power (PRP) and also carries a standby (ESP) rating. The alternator is a Mecc Alte ECP28VL4A, brushless with an AVR.

Key features

• The mechanical governor keeps engine speed steady as the load changes.
• Harmonic distortion of less than 5% makes the supply suitable for sensitive electronic equipment.
• A four pole circuit breaker protects the output and switches all three phases and the neutral, and a Deep Sea 7320 MKII controller looks after monitoring and control.
• The silenced canopy is rated at 72 dB(A) at 7 m, a measured figure you can use when choosing where to place the set.
• The fuel tank is bunded, which helps contain any leak.
• The hot-dip galvanised skid base has fork pockets for forklift handling, and the canopy is galvanised and powder coated to resist corrosion.
• A battery charger and isolator are fitted, so the starting battery stays charged and can be disconnected for servicing.

The 280 litre tank runs the set for 54 hours at 75% load. Fuel consumption is 6.7 litres an hour at 100% load, 5.2 at 75% and 4 at 50%. Engine oil capacity is 11 litres and coolant capacity is 12.5 litres.

What it will run

At 24kW prime, the GCM30S typically suits a workshop, farm or small factory on a three phase supply: lighting, refrigeration, pumps, compressors and machinery. Add up the running and starting load of each appliance from its compliance plate, and allow headroom for the largest motor, which can draw several times its running current at start. Balance the load across the three phases. Prime power (PRP) is for variable load for unlimited hours a year at an average 75% load factor, with 10% overload for one hour in twelve. Standby power (ESP) is for emergency supply at an average 85% load factor, with no overload and a limit of 400 hours a year. A building is connected through a changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GCM30S suits workshops, packing sheds, cold storage, pumping stations and small commercial buildings that need three phase power.

Key specifications

• Three phase, 1500 RPM diesel generator
• Cummins 4B3.9G1 engine
• 30 kVA prime / 33 kVA standby power
• Bunded 280 litre fuel tank
• Hot-dip galvanised skid base with fork pockets
• Deep Sea 7320 MKII controller with four-pole circuit breaker
• Noise level 72 dB(A) at 7m
• Delivered pre-tested with fluids, ready to run
• Weight: 1448 kg
• Dimensions (L x W x H): 246 x 101 x 169.5 cm
• Prime power (PRP): 30kVA / 24kW
• Voltage and frequency: 415V, 50Hz, three phase
• Engine configuration: 4 cylinder, 3.9 L, naturally aspirated
• Governor: Mechanical
• Alternator: Mecc Alte ECP28VL4A, brushless with AVR
• Harmonic distortion: Less than 5%
• Insulation class: Class H
• Fuel consumption: 6.7 L/h at 100% load, 5.2 L/h at 75% load, 4 L/h at 50% load
• Run time: 54 hours at 75% load
• Capacities: Engine oil 11 L, coolant 12.5 L
