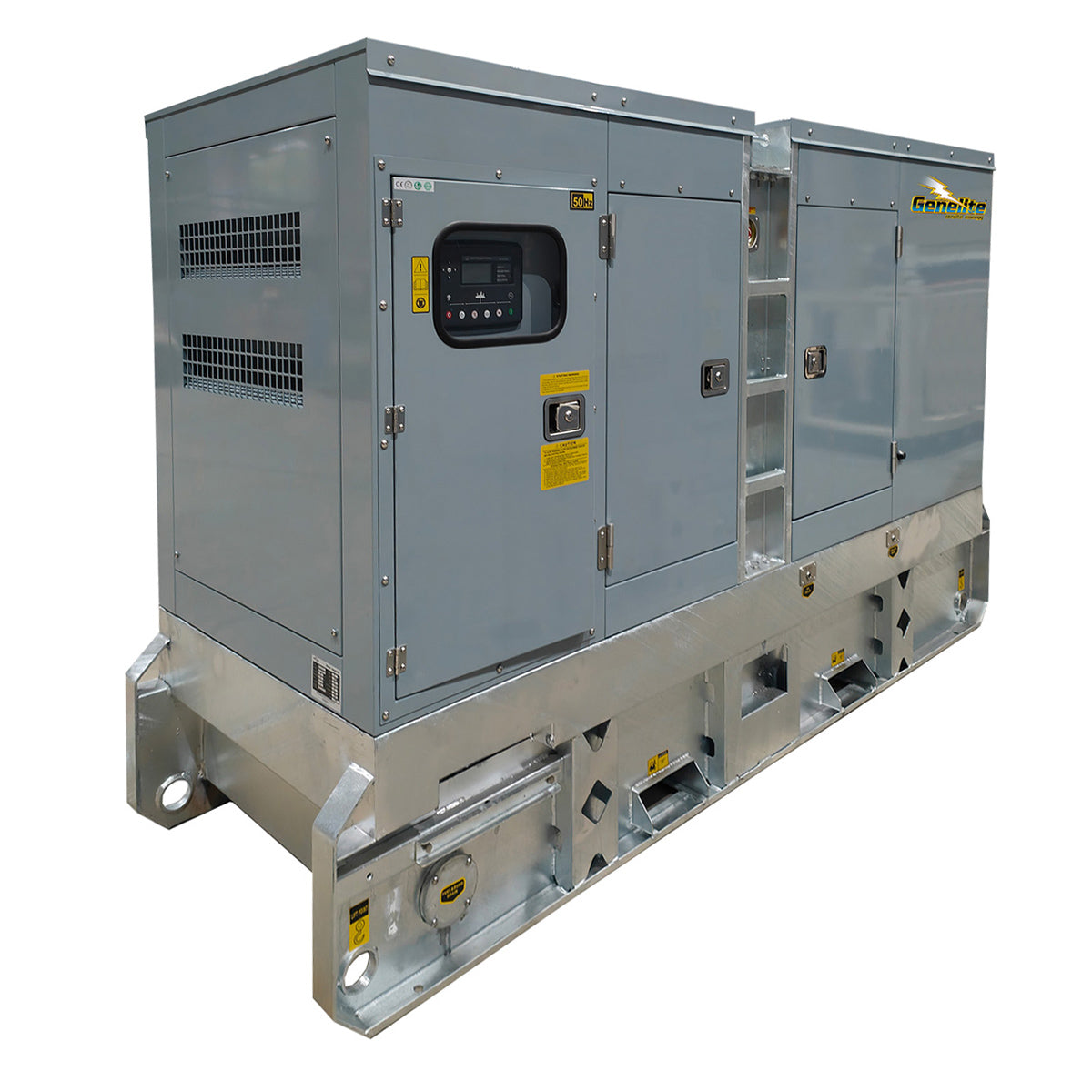

125kVA Cummins Diesel Generator GCM113S

The GCM113S is a Cummins-powered three phase generator set rated at 113kVA (90kW) prime and 125kVA (100kW) standby at 415V and 50Hz. The engine is the 6BT5.9G2, a six cylinder, 5.9 litre turbocharged diesel running at 1500rpm with an electronic governor. The alternator is a brushless Mecc Alte ECP34-1L4A with AVR and Class H insulation, and a Deep Sea 7320 MKII controller and four pole circuit breaker handle control and output switching.

Key features

• The silenced canopy is rated at 73 dB(A) at 7 m, so you can compare it with the noise limits that apply at your site.
• A 600 litre bunded tank gives about 35 hours of running at 75% load between refuels.
• The canopy has a galvanised powder-coat finish, which protects the steelwork against corrosion.
• A hot-dip galvanised skid base with fork pockets allows the set to be handled with a forklift.
• The brushless alternator with AVR regulates voltage as the load changes, and harmonic distortion below 5% keeps the waveform suitable for electronic loads.
• The four pole circuit breaker switches the three phases and neutral together.
• A battery charger and isolator keep the starting battery ready and allow it to be isolated for servicing.

At full load the set uses 22 litres an hour, which gives about 27 hours from the tank. At 75% load it uses 17 litres an hour and at 50% load 11. Oil capacity is 16 litres and coolant capacity is 19.7 litres.

What it will run

At 113kVA prime and 125kVA standby, the GCM113S typically suits the site loads of a processing shed, workshop complex, pumping plant or commercial building: lighting, motors, refrigeration and general power on three phase. Add up the running loads, then check the starting current of your largest motor, which can be several times its running current, against the rating you plan to use. The compliance plate on each machine gives its running and starting figures. Standby power (ESP) is an emergency supply at an average load factor of 85% with no overload capability and a limit of 400 hours a year. Prime power (PRP) is continuous operation at variable load for unlimited hours a year at an average load factor of 75%, with 10% overload for 1 hour in 12. Have an electrician or engineer assess the site's load schedule before the set is specified, and send us your load list for sizing help.

The GCM113S suits agricultural and industrial sites, quarries, water and pumping plants, workshops and commercial buildings that need three phase backup or site power.

Key specifications

• 3-phase, 1500 RPM Cummins 6BT5.9G2 engine
• 113 kVA prime / 125 kVA standby power
• 600L bunded fuel tank
• Up to 35 hours runtime at 75% load
• 73 dB(A) @ 7m noise level
• Hot-dip galvanised skid base with fork pockets
• Deep Sea 7320 MKII controller
• Free fuel and oil filter kit included
• Weight: 2085 kg
• Dimensions (L x W x H): 286 x 111 x 196.5 cm
• Rated output (kW): 90kW prime / 100kW standby
• Voltage and frequency: 415V, 50Hz, three phase
• Engine configuration: 6 cylinders, 5.9L, turbocharged
• Governor: Electronic
• Alternator: Mecc Alte ECP34-1L4A, brushless with AVR, Class H insulation
• Harmonic distortion: Less than 5%
• Circuit breaker: Four pole
• Fuel consumption: 22 L/h at 100% load, 17 L/h at 75% load, 11 L/h at 50% load
• Capacities: Lube oil 16 L, coolant 19.7 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
