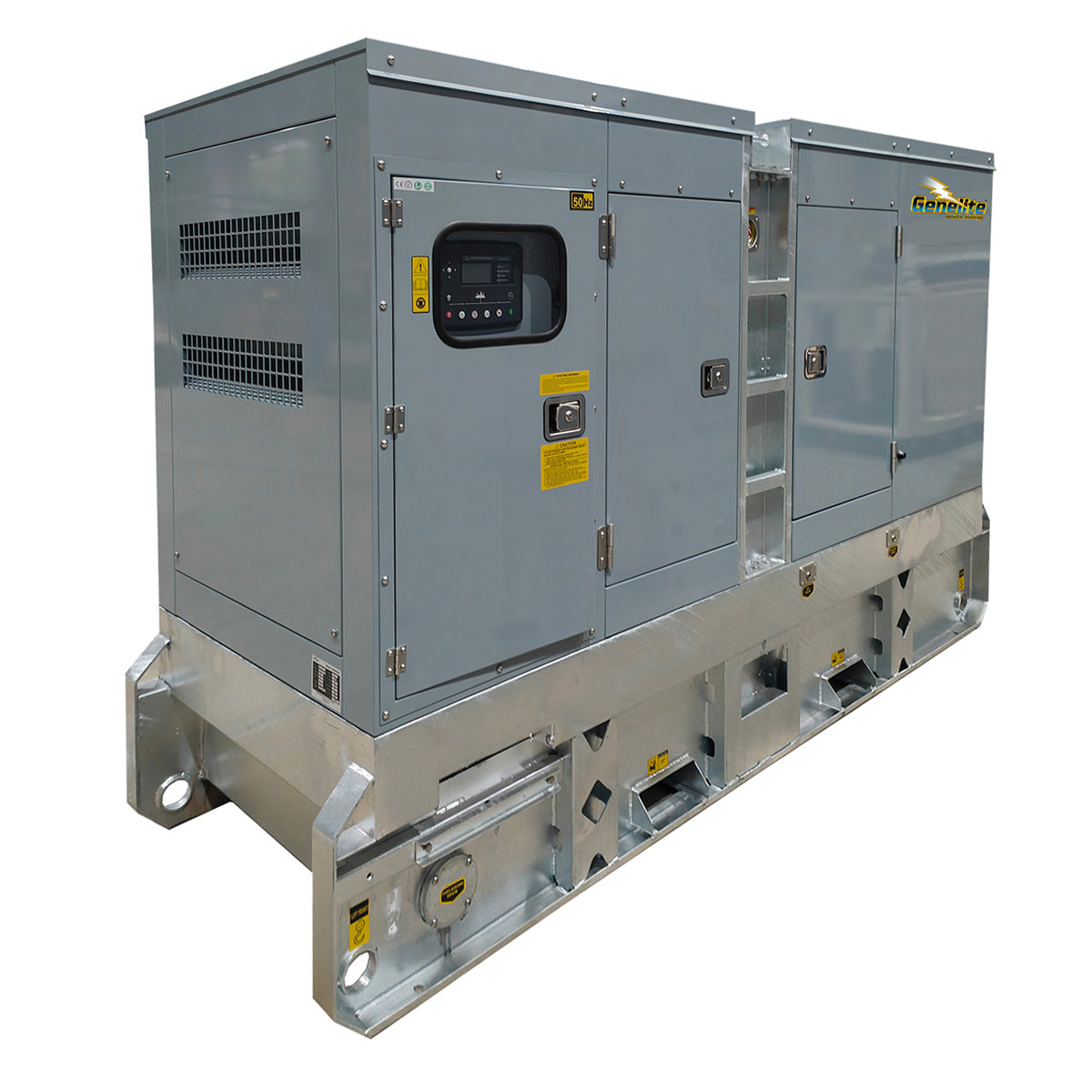

110kVA Cummins Diesel Generator GCM100S

The GCM100S is a three phase diesel generator set rated at 100kVA (80kW) prime and 110kVA (88kW) standby at 415V and 50Hz. It is powered by a Cummins 6BT5.9G2, a six cylinder, 5.9 litre turbocharged diesel running at 1500rpm under an electronic governor, and the alternator is a brushless Mecc Alte ECP34-2S4A with AVR and Class H insulation. A Deep Sea 7320 MKII controller and a four pole circuit breaker complete the electrical package.

Key features

• Electronic governing holds engine speed, and so frequency, steady as the load changes.
• Total harmonic distortion below 5% gives a clean supply that suits electronic equipment as well as motors.
• A four pole circuit breaker switches all three phases and the neutral together.
• The 600 litre bunded tank is built to contain spills and runs the set for about 35 hours at 75% load.
• A silenced canopy with a galvanised powder-coat finish reduces noise and resists corrosion.
• A hot-dip galvanised skid base with fork pockets lets a forklift move the set.
• A battery charger keeps the starting battery topped up between runs, and an isolator disconnects it for servicing.

Fuel consumption is 22 litres an hour at 100% load, 17 at 75% load and 11 at 50% load, so the tank lasts about 27 hours at full load. Oil capacity is 16 litres and coolant capacity is 19.7 litres.

What it will run

At 100kVA prime and 110kVA standby, the GCM100S typically suits the site loads of a workshop, farm, pumping station or commercial building: lighting, pumps, compressors, refrigeration and general power on three phase. Spread single phase loads evenly across the phases, and allow for the starting current of your largest motor, which can be several times its running current. Check the compliance plates on your equipment for running and starting loads. Prime power is continuous operation at variable load for unlimited hours a year at an average load factor of 75%, with 10% overload for 1 hour in any 12. Standby power is an emergency supply at an average load factor of 85%, with no overload capability and a limit of 400 hours a year. An electrician or engineer should assess the site's load schedule before the set is specified. Send us your load list and we will help with sizing.

The GCM100S suits factories, workshops, farms, pumping stations, construction projects and commercial buildings that need three phase standby or site power.

Key specifications

• 3-phase, 1500 RPM Cummins 6BT5.9G2 engine
• 100 kVA prime / 110 kVA standby power
• 600L bunded fuel tank
• Up to 35 hours runtime at 75% load
• 73 dB(A) @ 7m noise level
• Hot-dip galvanised skid base with fork pockets
• Deep Sea 7320 MKII controller
• Free fuel and oil filter kit included
• Weight: 2035 kg
• Dimensions (L x W x H): 286 x 111 x 196.5 cm
• Rated output (kW): 80kW prime / 88kW standby
• Voltage and frequency: 415V, 50Hz, three phase
• Engine configuration: 6 cylinders, 5.9L, turbocharged
• Governor: Electronic
• Alternator: Mecc Alte ECP34-2S4A, brushless with AVR, Class H insulation
• Harmonic distortion: Less than 5%
• Circuit breaker: Four pole
• Fuel consumption: 22 L/h at 100% load, 17 L/h at 75% load, 11 L/h at 50% load
• Capacities: Lube oil 16 L, coolant 19.7 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
