938kVA Cummins or Perkins Diesel Generator GC900S / GP900S

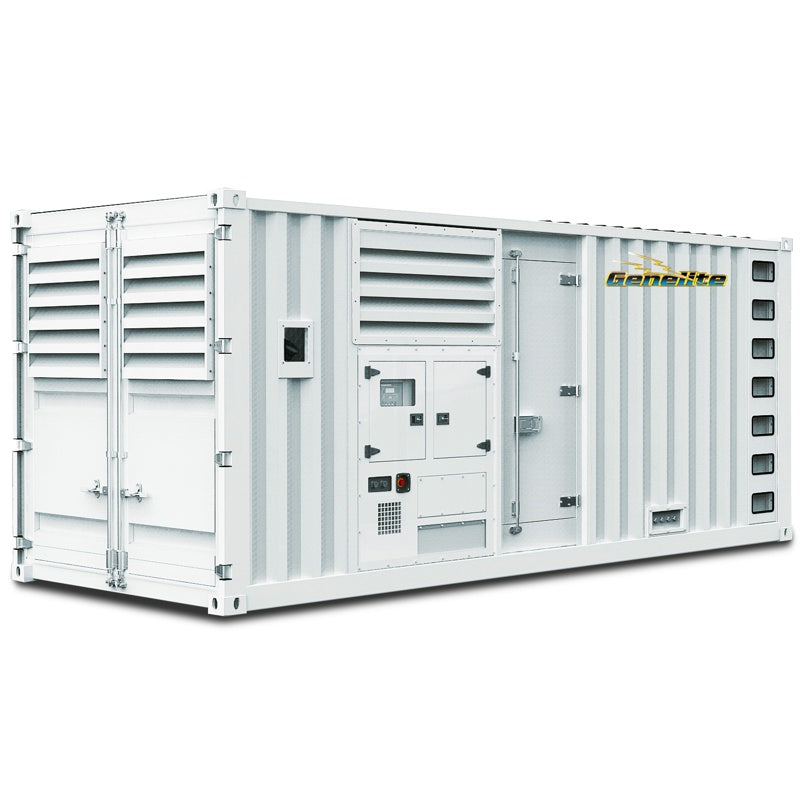

This page covers the 938kVA class in two engine options, the Cummins-powered GC900S and the Perkins-powered GP900S, both 1500rpm three phase diesel generator sets. The GC900S is built around a Cummins KTA38G2A, a twelve cylinder, 38 litre, turbocharged and aftercooled engine with an electronic governor, driving a Stamford LV634D brushless alternator with AVR at 415V and 50Hz. It is rated 900kVA / 720kW prime and 938kVA / 750kW standby, and it comes in a silenced 20 ft container.

Key features

• In its silenced container the GC900S is rated at 78.8dB(A) at 7 metres, a figure to check against site noise limits.
• The GC900S bunded tank holds 1405 litres and runs the set for 9.5 hours at 75% load, so outages that run longer need a refuelling plan.
• The GC900S is fitted with a DeepSea 7420 MKII controller and a four pole circuit breaker, which switches the neutral along with the three phases.
• The GC900S alternator is brushless, and its AVR holds output voltage steady as the load changes.
• Harmonic distortion on the GC900S is under 5%, which suits sensitive electronic equipment.
• On the GC900S, a battery charger keeps the starting battery topped up, and an isolator lets it be disconnected for servicing.

The GC900S uses 191 litres an hour at full load, 147 at 75% load and 98 at 50% load. Its oil capacity is 103 litres and coolant capacity is 98 litres. The GC900S prime rating is continuous running at variable load, at an average load factor of 75%, with 10% overload available for one hour in any 12. Its standby rating is for emergency supply at an average load factor of 85%, with no overload and a limit of 400 hours a year.

What it will run

At 900kVA prime and 938kVA standby, the GC900S is sized for large site loads such as process plant, pumping stations, compressed air and chillers. Work from a load schedule rather than a single figure: what runs together, which motors start hardest, and how the load divides across the three phases. Motor starting demand typically drives the sizing, so consider staged starting or soft starters for the largest motors. An electrician or engineer should assess the schedule, and connection to site wiring should go through a changeover or transfer switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GC900S suits mine and quarry sites, heavy industry, major construction projects, water and wastewater works, data and telecommunications facilities, and large commercial buildings.

Price on application. Each set is quoted to its engine option (Cummins GC900S or Perkins GP900S), enclosure and options. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 938 kVA three-phase diesel generator
• Choice of Cummins or Perkins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open and silenced (S) canopy configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Weight: 12220 kg
• Dimensions (L x W x H): 605.8 x 244 x 273 cm
• GC900S prime power: 900kVA / 720kW
• GC900S standby power: 938kVA / 750kW
• GC900S engine: Cummins KTA38G2A, 12 cylinders, 38 L, turbocharged and aftercooled, electronic governor
• GC900S alternator: Stamford LV634D, brushless with AVR
• GC900S voltage and frequency: Three phase, 415V, 50Hz
• GC900S fuel consumption: 191 L/h at 100% load, 147 L/h at 75% load, 98 L/h at 50% load
• GC900S controller: DeepSea 7420 MKII, four pole circuit breaker
• GC900S noise level: 78.8 dB(A) at 7 m (silenced container)
• GC900S enclosure: 20 ft ISO container
• GC900S fuel capacity: 1405 L, 9.5 hours run time at 75% load
• GC900S capacities: Oil 103 L, coolant 98 L
• GC900S harmonic distortion: Under 5%

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
