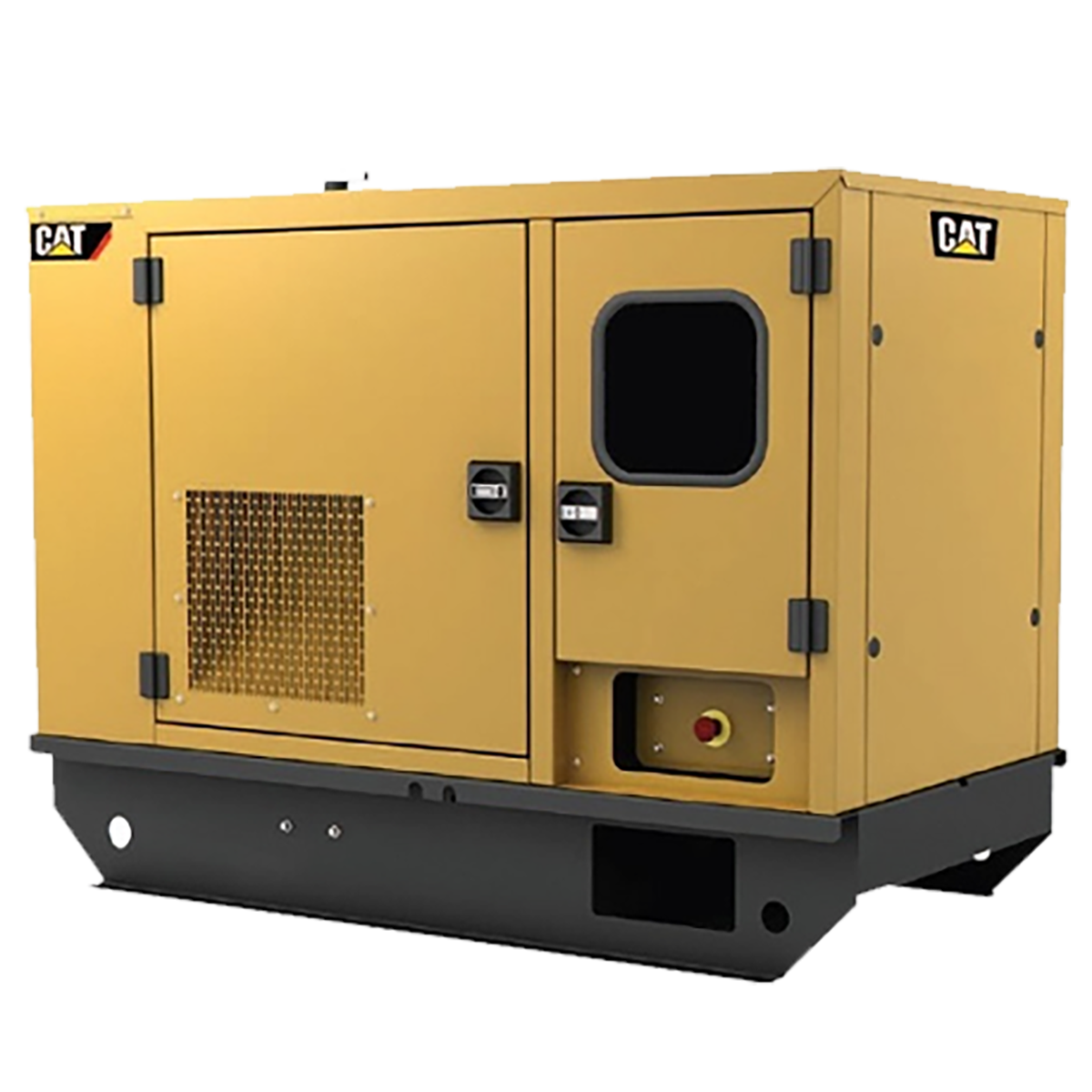

9.5kVA CAT Diesel Generator DE9.5 ENCL

The DE9.5 is a stationary, three phase diesel generator set with an output of 9.5 kVA, powered by a water cooled Cat C1.1 engine and fitted with an LC1114B alternator.

Key features

• The Cat C1.1 is a four-stroke diesel with three cylinders in line, 1.1 litres of displacement and natural aspiration, so there is no turbocharger to look after.
• Mechanical governing keeps engine speed regulation simple, with no electronics involved.
• The alternator windings use class H insulation, and its IP23 rating covers finger-sized objects and water spray.
• Shunt excitation and an R220 automatic voltage regulator hold steady state voltage regulation to plus or minus 1.0%.
• A spin-on, full-flow oil filter and a replaceable-element fuel filter keep routine servicing simple.
• Cooling is designed for ambient conditions up to 50°C, so a hot day on site is still inside the design range.

The engine runs on Class A2 diesel or BS EN 590 fuel and uses API CH4 15W-40 engine oil. The engine electrical system is 12 V negative earth.

What it will run

A 9.5 kVA three phase set typically suits light three phase workshop machinery, pumps, cool rooms and commercial circuits, with single phase loads spread evenly across the phases. Add up the loads that must run together, then allow for motor starting, because pumps and compressors draw several times their running current as they start. Starting the biggest motor first and adding the rest in steps keeps the demand manageable. Read each item's compliance plate for its running and starting figures. Connection to the switchboard, with a changeover switch, must be made by a licensed electrician. Send us your load list and we will help with sizing.

The DE9.5 suits standby power for commercial and industrial sites on a three phase supply, including workshops, pumping, cool rooms, farm infrastructure and small plant.

Price on application. Stationary diesel sets are quoted to the job, since configuration, options and site requirements all change the price. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Power output: 9.5kVA
• Engine: CAT Diesel Engine C1.1
• Phase: Three phase
• Fuel tank: 55 litres
• Run time: 84.5 Hour Run @ 75% Load
• Dimensions (L x W x H): 170.4 x 87.6 x 126.8 cm
• Weight: 575 kg
• Engine configuration: 3 cylinder in-line, 4-stroke, naturally aspirated, water cooled
• Engine displacement: 1.1 litres
• Compression ratio: 23:1
• Governor: Mechanical
• Alternator model: LC1114B
• Alternator insulation and protection: Class H insulation, IP23
• Excitation and AVR: Shunt excitation, AVR R220
• Voltage regulation: ±1.0% at steady state
• Engine electrical system: 12 V, negative earth
• Recommended fuel: Class A2 diesel or BS EN 590
• Engine oil: API CH4 15W-40
• Filters: Spin-on, full-flow oil filter; replaceable element fuel filter
