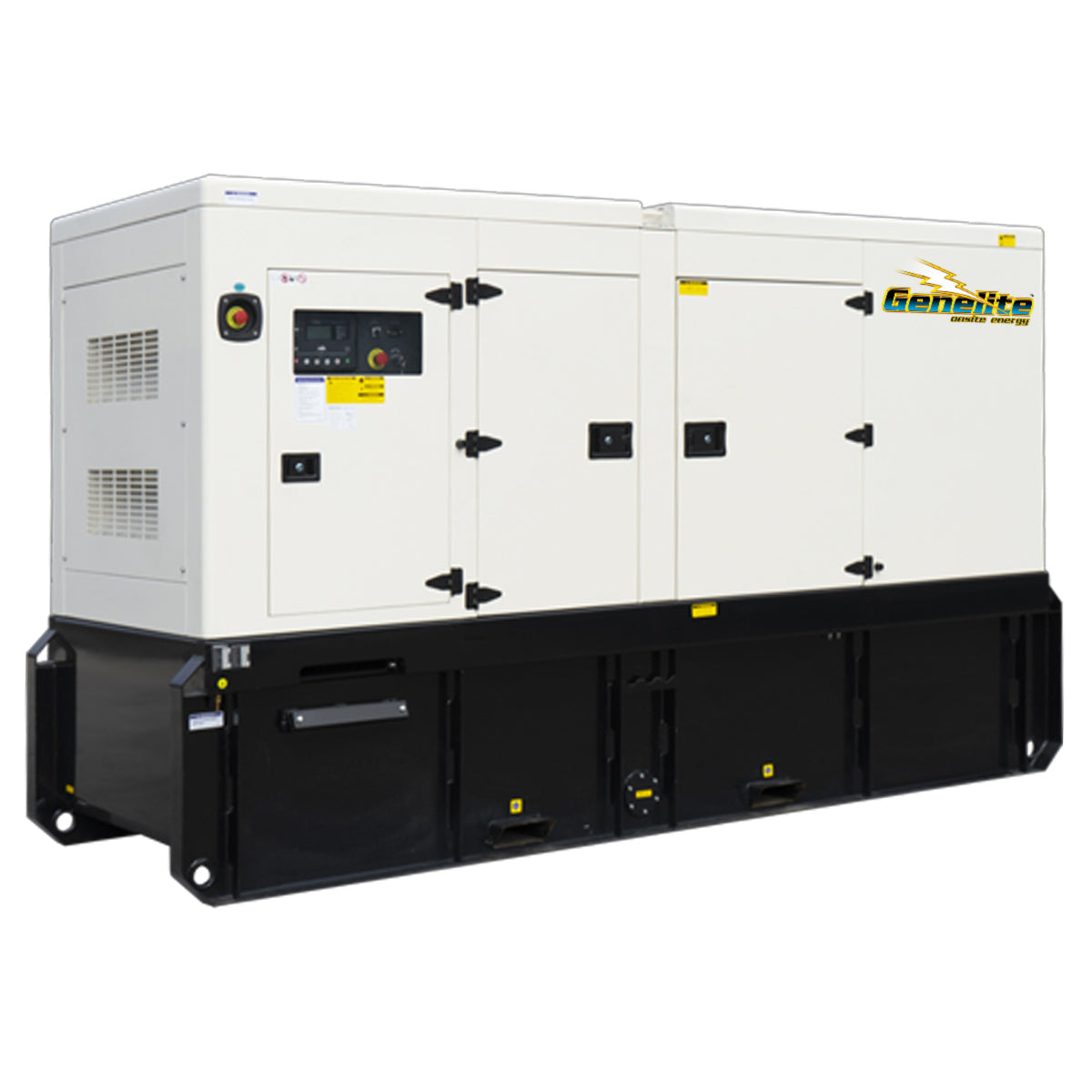

88kVA Cummins or Perkins Diesel Generator GC80S / GP80S

Two 1500rpm three phase diesel generator sets in the 88kVA class, custom-built in Australia, share this page: the Cummins-powered GC80S and the Perkins-powered GP80S. The GC80S runs a Cummins 4BTA3.9-G11, a four cylinder, 3.9 litre, turbocharged and aftercooled engine, driving a Stamford UC1224G brushless alternator with AVR at 415V and 50Hz. It is rated 80kVA / 64kW prime and 88kVA / 70kW standby.

Key features

• The GC80S silenced canopy is rated at 68.2dB(A) at 7 metres, which can be checked against a site's noise limit.
• The 450 litre bunded tank on the GC80S gives 34 hours at 75% load, which is more than a day of running before refuelling.
• The GC80S is fitted with a DeepSea 7420 MKII controller and a four pole circuit breaker, which switches the neutral as well as the phases.
• The GC80S engine has a mechanical governor, which regulates engine speed without relying on electronic control.
• The galvanised, powder coated canopy of the GC80S sits on a heavy duty skid base with fork pockets for forklift handling.
• A battery charger and isolator on the GC80S keep the starting battery charged and let it be disconnected for servicing.

At full load the GC80S uses 17.6 litres an hour, easing to 13.2 at 75% load and 9.1 at 50% load. Its oil capacity is 10.9 litres and coolant capacity is 29 litres. The GC80S prime rating is continuous running at variable load, at an average load factor of 75% with 10% overload for one hour in 12. Its standby rating is emergency supply at an average load factor of 85%, with no overload and a limit of 400 hours a year. Harmonic distortion on the GC80S is under 5%.

What it will run

At 88kVA standby (80kVA prime), the GC80S typically covers the essential circuits of a workshop, pumping station, building site or large property: lighting, pumps, compressors, refrigeration and three phase machinery. Add up the running load of everything that operates together, then leave headroom for the starting surge of your largest motor, which can draw several times its running current. Check the compliance plate on each machine, and spread single phase loads across the phases. Connection to a house or site should be through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GC80S suits industrial sites, pumping and irrigation, construction sites, mine sites and large residential properties.

Price on application. The price depends on the engine option (Cummins GC80S or Perkins GP80S), the options chosen and the site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 88 kVA output
• Cummins or Perkins engine option
• 1500 RPM multi-cylinder diesel engine
• Custom-built in Australia
• Suited to residential, industrial, pumping, construction and mine-site use
• Factory load and function tested with test certificate
• Free fuel and oil filter kit included
• Automatic transfer switch, ultra-silent, and site-compliance options available
• Weight: 1650 kg
• Dimensions (L x W x H): 268.8 x 105 x 178.9 cm
• GC80S prime power: 80kVA / 64kW
• GC80S standby power: 88kVA / 70kW
• GC80S engine: Cummins 4BTA3.9-G11, 4 cylinders, 3.9 L, turbocharged and aftercooled, mechanical governor
• GC80S alternator: Stamford UC1224G, brushless with AVR
• GC80S voltage and frequency: Three phase, 415V, 50Hz
• GC80S fuel consumption: 17.6 L/h at 100% load, 13.2 L/h at 75% load, 9.1 L/h at 50% load
• GC80S controller: DeepSea 7420 MKII, four pole circuit breaker
• GC80S noise level: 68.2 dB(A) at 7 m (silenced canopy)
• GC80S fuel capacity: 450 L, 34 hours run time at 75% load
• GC80S capacities: Oil 10.9 L, coolant 29 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
