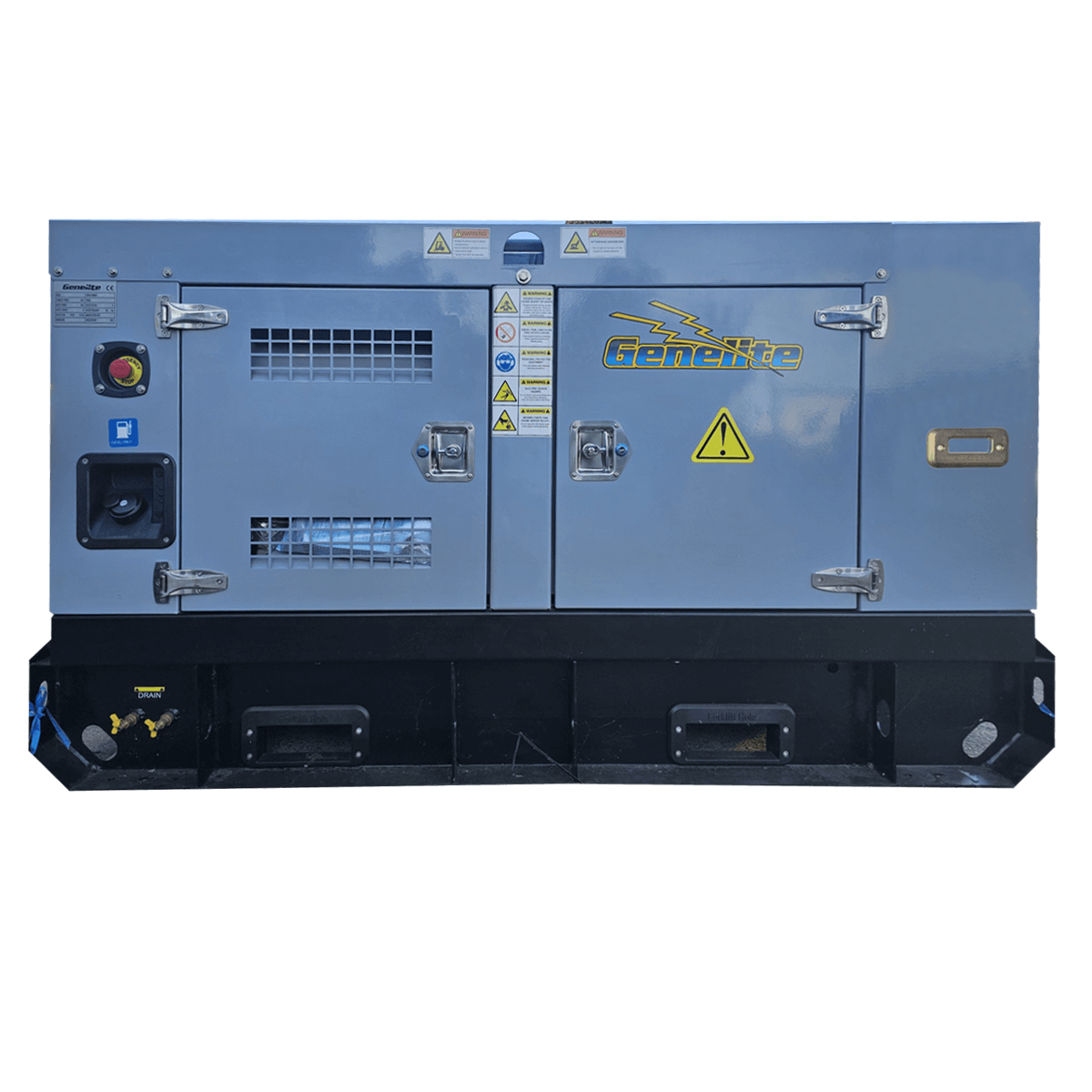

88kVA Cummins Diesel Generator LG80C

The LG80C is a three phase diesel generator set for 415V, 50Hz supply, rated 88kVA (70.4kW) standby and 80kVA (64kW) prime. It runs a Cummins 4BTA3.9G11, a four-cylinder, 3.9 litre turbocharged and aftercooled diesel, at 1500 rpm under a mechanical governor, with electric start. A brushless Leroy Somer TAL-A44-E alternator with an AVR (automatic voltage regulator) makes the power, and a four pole circuit breaker protects it.

Key features

• With harmonic distortion under 5%, the output suits electronic loads such as controls and computers.
• The 315 litre fuel tank is bunded, so a leak is held by a second containing wall rather than reaching the ground.
• A silenced canopy with a galvanised powder-coat finish encloses the engine and alternator.
• Fork pockets in the heavy duty skid base let a forklift handle the set during positioning.
• The battery charger maintains the starting battery between runs, and the isolator lets it be disconnected for servicing.
• A DeepSea 6120 controller looks after starting, stopping and monitoring.

Fuel use is 17.6 litres an hour at full load, 13.2 at 75% load and 9.1 at half load. At 75% load the tank runs the set for 23 hours. The silenced canopy is rated at 73 dB(A) at 7 m, and the outlets are two 15 amp 240V and one 32 amp 415V.

What it will run

Work from the site's real load: the total running at once, plus the starting surge of the largest motor, which can be several times its running current. At 88kVA the set typically covers the essential circuits of a mid-sized workshop, factory section, pumping site or commercial building. Choose the rating by duty. Standby suits emergency supply, with an average 85% load factor, no overload capability and up to 400 hours a year. Prime suits variable loads without an annual hour limit, at an average 75% load factor, with 10% overload for 1 hour in every 12. Spread the load evenly across the three phases and check the compliance plate on each appliance. Connection to a building's wiring must go through a changeover switch installed by a licensed electrician. Send through your load list and we will help you size the set.

The LG80C suits mid-sized commercial buildings, factories, farms and pumping or irrigation sites that need standby power, and temporary works that need three phase power for extended periods.

See the full large generator range.

Key specifications

• Power output: 88kVA
• Engine: Cummins Diesel Engine 4BTA3.9G11
• Phase: Three phase
• Fuel tank: 315 litres
• Run time: 23 Hour Run @ 75% Load
• Noise level: 73 dBA @ 7m
• Dimensions (L x W x H): 253.8 x 100 x 166 cm
• Weight: 1307 kg
• Standby rating: 88kVA / 70.4kW
• Prime rating: 80kVA / 64kW
• Voltage: 415V
• Frequency: 50Hz
• Engine speed: 1500 rpm
• Engine configuration: 4 cylinder, 3.9 litre, turbocharged and aftercooled
• Governor: Mechanical
• Alternator: Leroy Somer TAL-A44-E, brushless, AVR
• Fuel consumption: 17.6 L/h at 100% load, 13.2 L/h at 75% load, 9.1 L/h at 50% load
• Controller: DeepSea 6120
• Outlets: 2 x 15 amp 240V, 1 x 32 amp 415V
• Circuit breaker: Four pole
