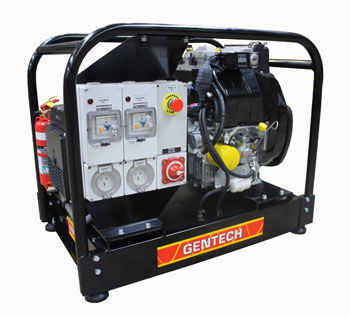

8.5kVA Gentech Mine Spec Diesel Generator ED8500KSRE-MINE
8.5kVA Gentech Mine Spec Diesel Generator ED8500KSRE-MINE
5.0 store rating, 100 Google reviews
- Single phase
- Electric start
GST included.
Delivery
Australia-wide
Free to capitals. Check your postcode:
Standard delivery is by truck with no tail lift, so you'll need a forklift or tractor forks to unload. Need a tail lift? Contact us before you order.
Allow up to 10 business days for dispatch. We email your tracking once it's dispatched.
Shipped from our store or direct from the supplier warehouse closest to you.
Add delivery instructions (optional)
These go to the warehouse and the driver with your order.
Secure checkout
Couldn't load pickup availability
Unsure if this is the right generator?
Our size calculator works out the kVA you need from your amps, watts, motor or welder.
- Authorised Genelite Master Dealer
- Full manufacturer warranty
- Advice before you buy: 07 4728 2796 or send a message
- 100 Google reviews, rated 5.0 out of 5
The ED8500KSRE-MINE is a Mine Spec single phase diesel generator with a maximum output of 8.5kVA at 0.8 power factor. A Kohler KD425 diesel engine drives a 9.5kVA-rated alternator at 230V, and the engine has electric start.
Key features
- A detachable fire extinguisher comes fitted, so the set carries its own fire response equipment.
- An emergency stop button shuts the set down fast, and a battery isolator switch disconnects the battery.
- Earth leakage protection comes from individual lockable RCD switches, fitted as standard.
- Its 34 L fuel tank is bunded to help contain spills, and the cap locks to secure the fuel.
- A centre point lifting bar is fitted for moving the set with lifting equipment.
- Two weatherproof 15 Amp outlets supply tools and lights.
The 34 L tank gives about 13.8 hours at 80% load, using about 2.46 L/h at that load; lighter loads use less fuel and run longer. Noise is 80 dBA at 7 m.
What it will run
At 8.5kVA and 0.8 power factor, the set gives about 6.8kW, which is about 28 amps in total. Typical loads are site lighting, hand tools, small pumps, a fridge and a workshop compressor within that figure. Motors draw several times their running load at start, so allow headroom for the largest motor and read the compliance plate on each appliance. Mine site induction and equipment requirements vary, so check yours against the fit-out before you buy. Send us your load list and we will help with sizing.
The ED8500KSRE-MINE suits contractors and operators on mine sites, and it also works as a maintenance or standby set in other settings such as workshops and building sites. It is built for standby use and is not rated for prime or continuous duty.
Key specifications
- Duty rating: Standby only, not rated for prime or continuous power
- Maximum output: 8.5kVA @ 0.8PF
- Engine: Kohler KD425
- Start type: Recoil/Electric
- Fuel: Diesel
- Fuel tank: 34 L
- Run time: 13.8 hrs @ 80% Load
- Noise level: 80 dBA @ 7m
- Outlets: 2 x 15 Amp
- Phase: 1-Phase
- AVR / RCD: Individual lockable RCD switches fitted standard as a mine-safety feature
- Dimensions (L x W x H): 87.6 x 54.6 x 70 cm
- Weight: 172 kg
- Warranty: 24 months frame/alternator (Gentech); 12 months engine (Kohler)
- Mine spec fit-out: Detachable fire extinguisher; Battery Isolator switch; Individual lockable RCD switches; 15amp weatherproof outlets; Emergency stop button; Bunded fuel tank with lockable cap; Centre point lifting bar.
- Alternator rating: 9.5 kVA
- Voltage: 230 V
- Fuel consumption: 2.46 L/hr at 80% load
Gentech generators are backed Australia-wide with national parts and service support.
