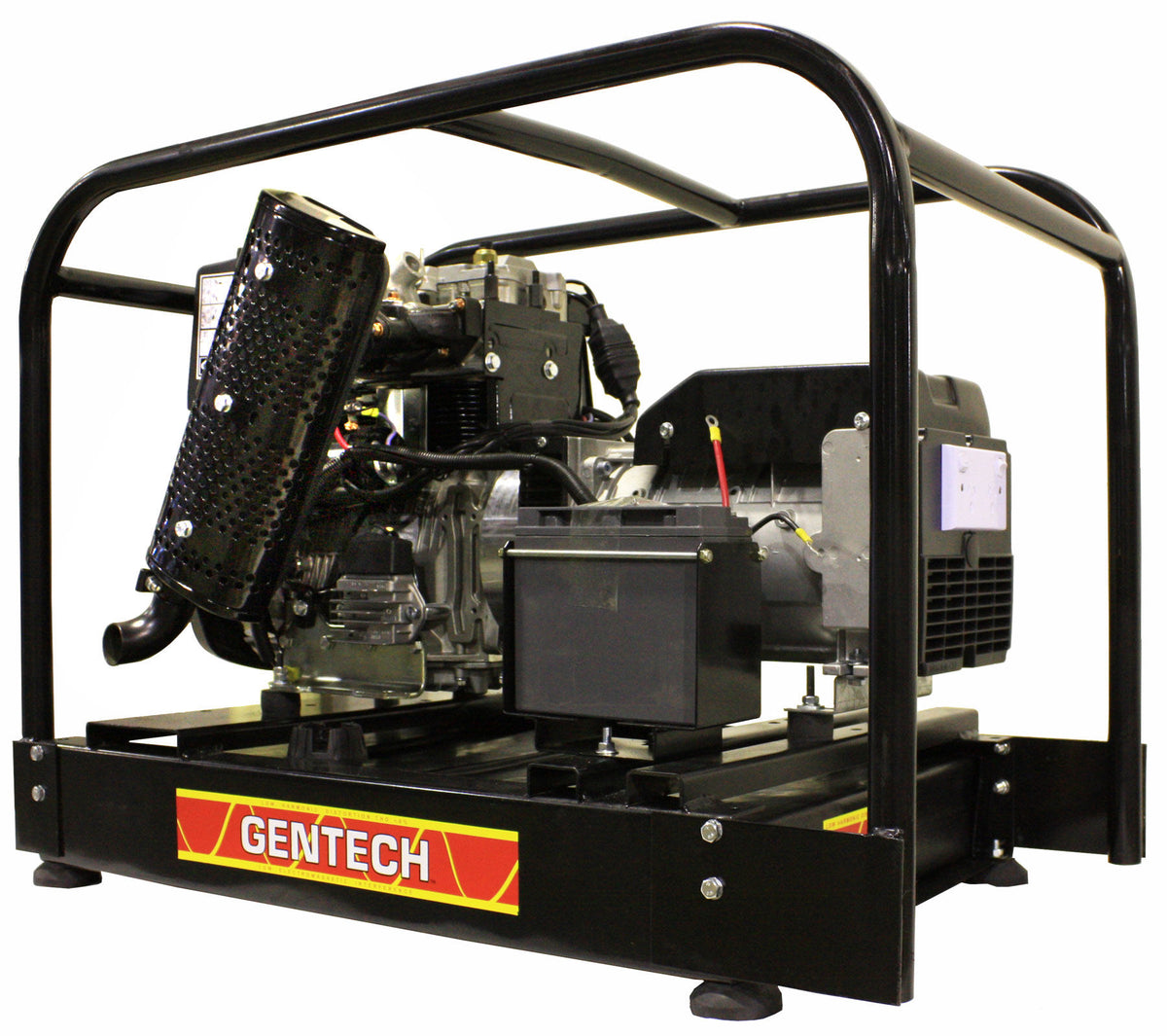

8.5kVA Gentech Diesel Generator ED8500KSRE
8.5kVA Gentech Diesel Generator ED8500KSRE
5.0 store rating, 100 Google reviews
- Single phase
- Electric start
GST included.
Delivery
Australia-wide
Free to capitals. Check your postcode:
Standard delivery is by truck with no tail lift, so you'll need a forklift or tractor forks to unload. Need a tail lift? Contact us before you order.
Allow up to 10 business days for dispatch. We email your tracking once it's dispatched.
Shipped from our store or direct from the supplier warehouse closest to you.
Add delivery instructions (optional)
These go to the warehouse and the driver with your order.
Secure checkout
Couldn't load pickup availability
Unsure if this is the right generator?
Our size calculator works out the kVA you need from your amps, watts, motor or welder.
- Authorised Genelite Master Dealer
- Full manufacturer warranty
- Advice before you buy: 07 4728 2796 or send a message
- 100 Google reviews, rated 5.0 out of 5
The ED8500KSRE is a single phase diesel generator with a maximum output of 8.5kVA at 0.8 power factor. A Kohler KD425 diesel engine runs at 3000 rpm and drives a 9.5kVA-rated alternator at 230V, and the engine has electric start. No RCD is fitted as standard.
Key features
- A 34 L tank runs the set for about 13 hours at 80% load, enough for a full working day at that load without refuelling.
- Electric start brings the Kohler engine up without pulling a cord.
- The alternator is rated at 9.5kVA against an 8.5kVA maximum output, so size your loads to the lower figure.
- Two 15 Amp outlets take tools, lights and appliances straight from the set.
- Kohler covers the engine for 12 months, and Gentech covers the frame and alternator for 24 months.
- The optional ELB IP56 RCD (32 Amp) can be added for earth leakage protection.
Fuel use is about 2.60 L/h at 80% load, and lighter loads use less. Noise is 80 dBA at 7 m.
What it will run
At 8.5kVA and 0.8 power factor, the ED8500KSRE gives about 6.8kW, which is about 28 amps in total. It typically runs lights, a fridge and freezer, pumps, a workshop compressor and common power tools, as long as the combined load stays under that figure. Motors draw several times their running load at start, so allow headroom for the largest motor and read the compliance plate on each appliance. To power a property during an outage, connect through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.
The ED8500KSRE suits workshops, farms, pumping and refrigeration backup, small commercial premises and building sites. It is built for standby use and is not rated for prime or continuous duty.
Key specifications
- Duty rating: Standby only, not rated for prime or continuous power
- Maximum output: 8.5kVA @ 0.8PF
- Engine: Kohler KD425, 3000 rpm, 12.5 hp
- Start type: Recoil/Electric
- Fuel: Diesel
- Fuel tank: 34 L
- Run time: 13.0 hr @ 80% Load (approx fuel consumption 2.60 L/hr @ 80% Load)
- Noise level: 80 dBA @ 7m
- Outlets: 2 x 15 Amp
- Phase / voltage: 1-Phase, 230 V
- AVR / RCD: RCD not standard - 'ELB IP56 RCD 32 Amp' optional accessory only
- Dimensions (L x W x H): 87.6 x 54.6 x 70 cm
- Weight: 165 kg
- Warranty: 24 months frame/alternator (Gentech); 12 months engine (Kohler)
- Alternator rating: 9.5 kVA
Gentech generators are backed Australia-wide with national parts and service support.
