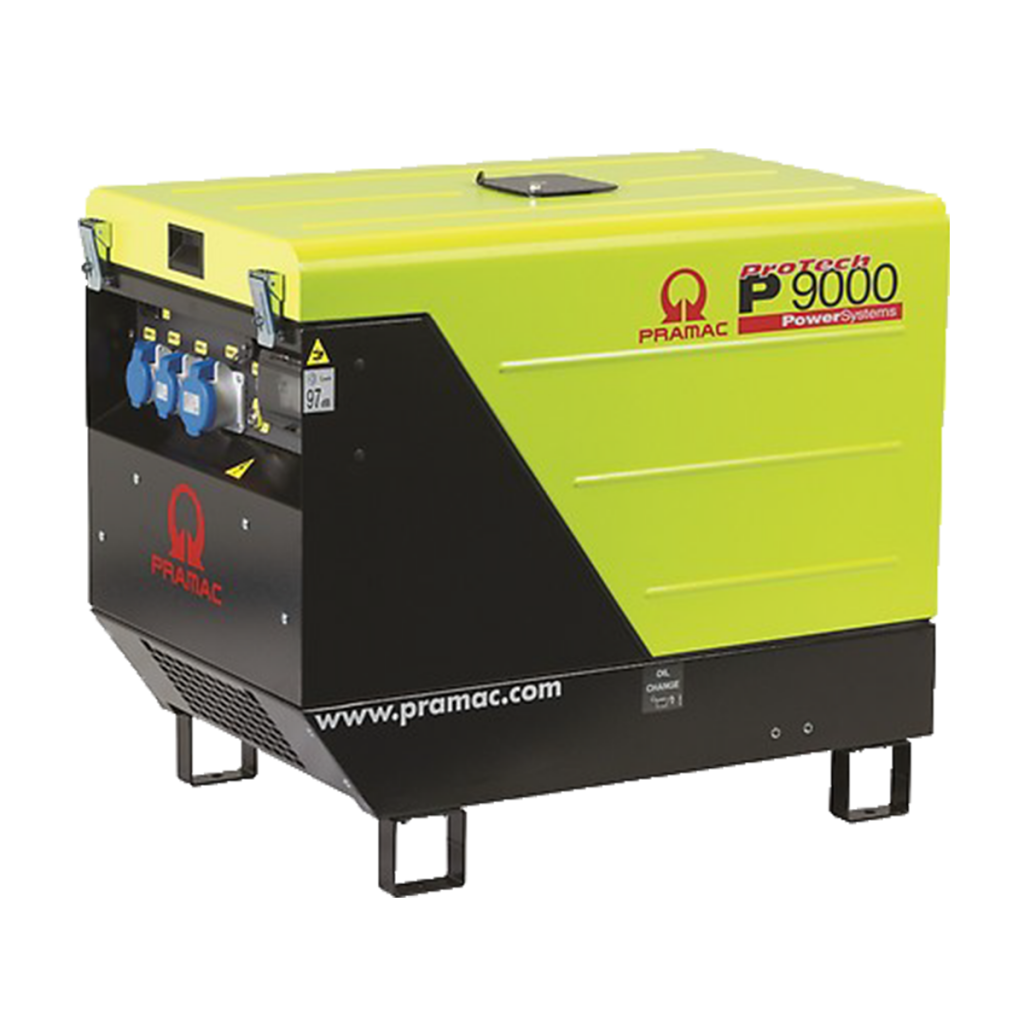

8.8kVA Pramac Diesel Generator P9000

The P9000 is a single phase diesel generator rated 8.8kVA (7.9kW) standby (LTP) at 50Hz, with a power factor of 0.9. It is powered by a Lombardini 25LD330, an air-cooled, naturally aspirated 654cm³ diesel running at 3000 rpm under a mechanical governor, and it starts electrically from a 12V circuit. The alternator is a brushless two pole unit with Class H insulation, IP23 protection and an AVR 860 voltage regulator.

Key features

• A key start selector with OFF, ON and START positions gives a simple, clear starting sequence.
• A voltmeter, hour counter and frequency meter on the control panel show output voltage, running time and frequency at a glance.
• A circuit breaker, differential protection (DPP) and Oil Guard protect the output circuit and the engine.
• A connector for AMF (automatic mains failure) and RSS (remote start/stop) accessories is built into the control panel, so those accessories can be added to the set.
• AVR 860 regulation holds the output voltage within 2%, so the supply stays steady as the load changes.
• The brushless alternator has no brushes to wear, and Class H insulation gives the windings thermal headroom.

The 24 litre tank gives 11.06 hours at 75% load and 8.28 hours at 100% load, using 2.17L/h and 2.90L/h. Noise is 69 dB(A) at 7 m.

What it will run

At 7.9kW standby the P9000 supplies about 33A at 240V (7.9kW / 240V, approximate). That typically covers lighting, refrigeration or a cool room, a pressure pump and workshop power tools on one single phase supply, as long as the larger motors are not all starting at once. Motors in pumps and compressors draw several times their running current at start, so size the set against your largest motor first. Check the compliance plate on each appliance for its running and starting figures, then add them up. Connecting the set to a building's wiring, including the changeover arrangement, must be done by a licensed electrician. Send us your load list and we will help you size it.

The P9000 suits backup power for shops and workshops, farm sheds, pumping and cool rooms, and intermittent power on worksites. It is built for standby use and is not rated for prime or continuous duty.

Price on application. The accessories, options and site requirements all shape the specification of a set like this, so each one is quoted. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Duty rating: Standby only, not rated for prime or continuous power
• Power output: 8.8kVA
• Engine: Lombardini Diesel Engine 25LD330
• Phase: Single phase
• Fuel tank: 24 litres
• Run time: 11.06 Hour Run @ 75% Load
• Noise level: 69 dBA @ 7m
• Dimensions (L x W x H): 99 x 60.2 x 82.6 cm
• Weight: 204 kg
• Standby rating (LTP): 8.8kVA / 7.9kW
• Frequency: 50Hz
• Power factor: 0.9
• Engine type: Air-cooled, naturally aspirated, 654cm³, 3000 rpm, mechanical governor
• Starting: Electric, 12V
• Alternator: Brushless, 2 poles, Class H insulation, IP23
• Voltage regulation: AVR 860, voltage tolerance 2%
• Fuel consumption: 2.17L/h at 75% load; 2.90L/h at 100% load
• Run time at 100% load: 8.28 hours
• Sound power level (LWA): 97 dB(A)
• Control panel: Key start selector (OFF, ON, START), voltmeter, hour counter, frequency meter, circuit breaker, differential protection (DPP), Oil Guard, AMF/RSS connector

Part of the Pramac range at Gen4Sale.
