7kVA Gentech Three Phase Diesel Generator ED7000LSRE-3

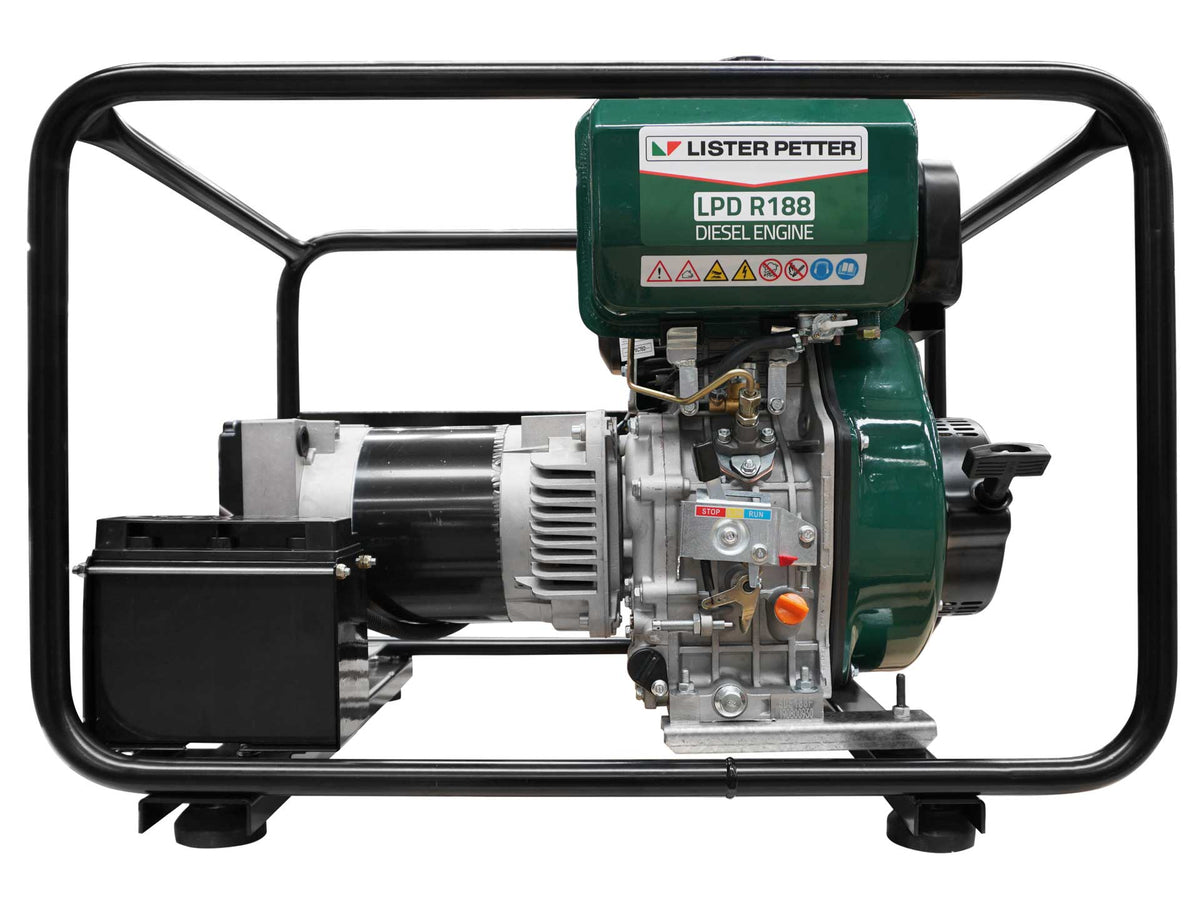

The ED7000LSRE-3 is a three phase diesel generator with a maximum output of 7kVA at 0.8 power factor. Power comes from a Lister Petter LPDR188 diesel engine running at 3000 rpm, coupled to an NSM Italian alternator. Starting is electric, with the battery included, and no RCD is fitted as standard.

Key features

• A 20 Amp five-pin outlet runs three phase equipment directly from the set.
• Two 15 Amp single phase outlets (a double GPO) cover tools and lights from the same unit.
• A roll over frame surrounds the set to protect it from knocks.
• The starting battery comes included, so there is no extra battery to source for the electric start.
• Gentech covers the frame and alternator for 24 months, and Lister Petter covers the engine for 12 months.
• Fitting the optional ELB IP56 RCD (32 Amp) adds earth leakage protection.

At 80% load the 5 L tank lasts about 2.94 hours, a burn rate of about 1.7 L/h.

What it will run

This set suits sites that mix three phase and single phase loads. A three phase bore pump or machine can run from the five-pin outlet while lights and tools use the 15 Amp outlets. The 7kVA maximum output is the total for both, so add the three phase and single phase loads together. A three phase motor draws several times its running current at start, so have an electrician or engineer check each motor against the set and read the compliance plate on every appliance. Connection to fixed wiring should go through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The ED7000LSRE-3 suits farms, workshops and work sites that run a three phase pump or machine alongside single phase tools. It is built for standby use and is not rated for prime or continuous duty.

Key specifications

• Duty rating: Standby only, not rated for prime or continuous power
• Maximum output: 7kVA @ 0.8PF
• Engine: Lister Petter LPDR188, 3000 rpm
• Start type: Electric
• Fuel: Diesel
• Fuel tank: 5 L
• Run time: 2.94 hrs @ 80% Load
• Outlets: 1 x 20 Amp 3PH 5PIN, 2 x 15Amp 1PH
• Phase: 3-Phase
• AVR / RCD: RCD not standard - 'ELB IP56 RCD 32 Amp' optional accessory only
• Dimensions (L x W x H): 81 x 55 x 60 cm
• Weight: 110 kg
• Warranty: 24 months frame/alternator (Gentech); 12 months engine (Lister Petter)
• Alternator: NSM Italian alternator
• Frame: Roll over frame
• Battery: Included

Gentech generators are backed Australia-wide with national parts and service support.
