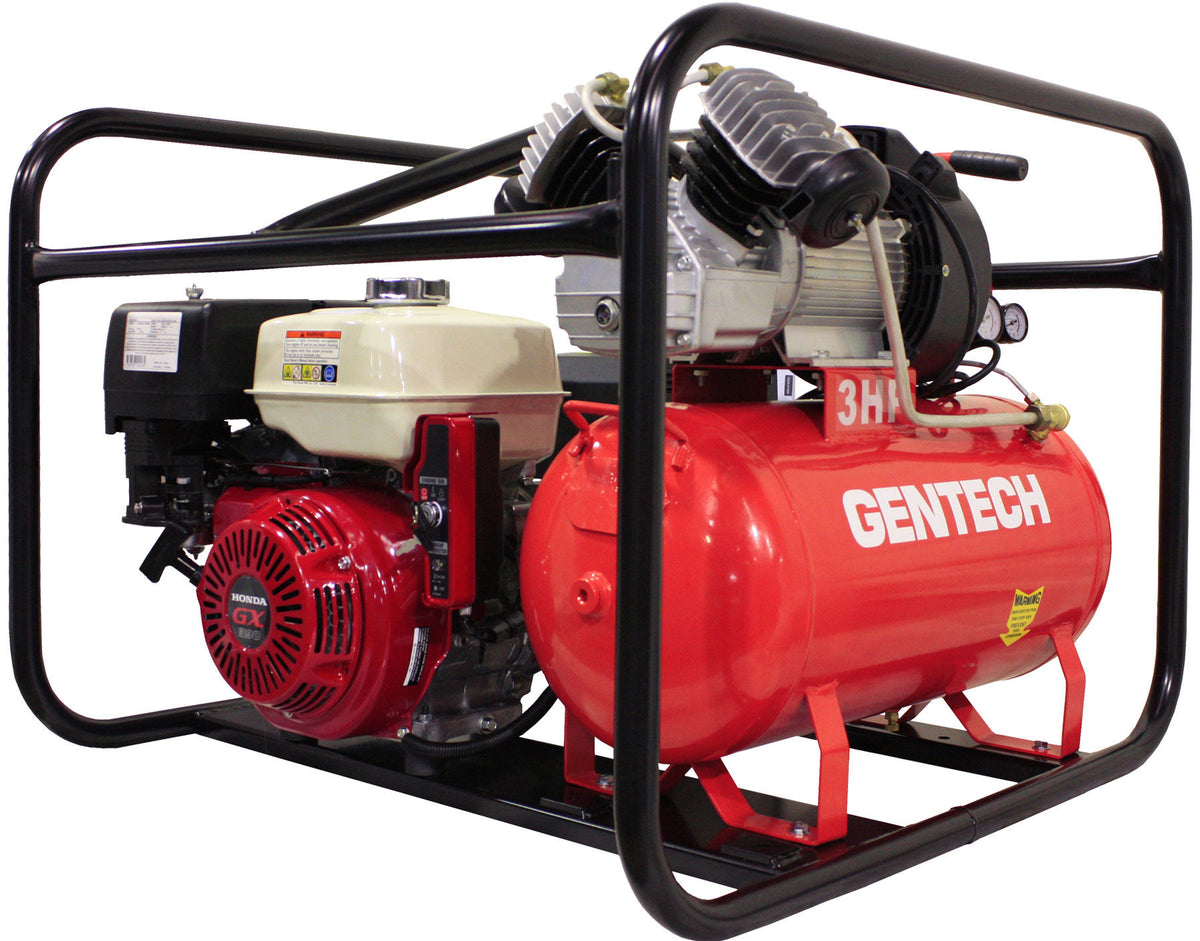

7kVA Gentech Petrol Workstation WS200-14-10HSRE

The WS200-14-10-HSRE is a petrol workstation with electric start. One Honda petrol engine runs a single phase generator with a maximum output of 7kVA at 0.8 power factor, a 200 amp AC welder at a 60% duty cycle, a 14 CFM air compressor with a 50 L air tank and a 10 amp battery charger. The engine starts by recoil or electric start.

Key features

• Electric start saves pulling a cord, and recoil start remains as the alternative.
• One engine and one fuel supply run all four functions, which keeps the number of machines to fuel and maintain down.
• The welder gives 200 amps of AC output at a 60% duty cycle, so it can weld at full current for about six minutes in every ten.
• The 14 CFM compressor, with its 50 L air tank, runs air tools on site.
• The built-in 10 amp charger recharges flat batteries.
• Its brushless alternator does away with carbon brushes and the wear that comes with them.
• A centre point lift is fitted so the unit can be raised with lifting equipment.

Fuel use is about 2.44 L/h at 80% load, which gives about 2.5 hours from the 6.1 L tank. Noise is 69 dBA at 7 m, and power comes out through two 15 Amp plugs.

What it will run

The generator side has a rated output of 5.6kW, which typically covers site lighting, a pump and power tools. A motor draws several times its running load as it starts, so check the compliance plate on each appliance and allow for the largest. Match each air tool's CFM requirement to the compressor's 14 CFM. Welding, air and generator loads share one engine, so send us your load list if you plan to use them together and we will help with sizing.

The WS200-14-10-HSRE suits breakdown and plant maintenance, fencing and rural contracting, and workshops where welding, air and power are needed together.

Key specifications

• Maximum output: 7kVA @ 0.8PF
• Welding output: Welder 200 Amp (AC), Duty Cycle 60%; Compressor 14 CFM, Air Tank Capacity 50 L; Battery Charger 10 Amp; welding leads not included
• Engine: Honda IGX390
• Start type: Recoil/Electric
• Fuel: Unleaded/Petrol
• Fuel tank: 6.1 L
• Run time: Approx. 2.5 hrs @ 80% load
• Noise level: 69 dBA @ 7m
• Outlets: 2 x 15 Amp plugs
• Phase / voltage: 1-Phase; 240 V
• Dimensions (L x W x H): 90 x 87 x 68 cm
• Weight: 110 kg
• Warranty: Generators 24 months; Honda GX engine 36 months
• Rated output: 5600 W
• Frequency: 50 Hz
• Alternator: Brushless
• Fuel consumption: 2.44 L/hr at 80% load
• Auto decompressor: Yes
• Centre point lift: Yes

Gentech generators are backed Australia-wide with national parts and service support.
