825kVA Cummins Diesel Generator GC750S

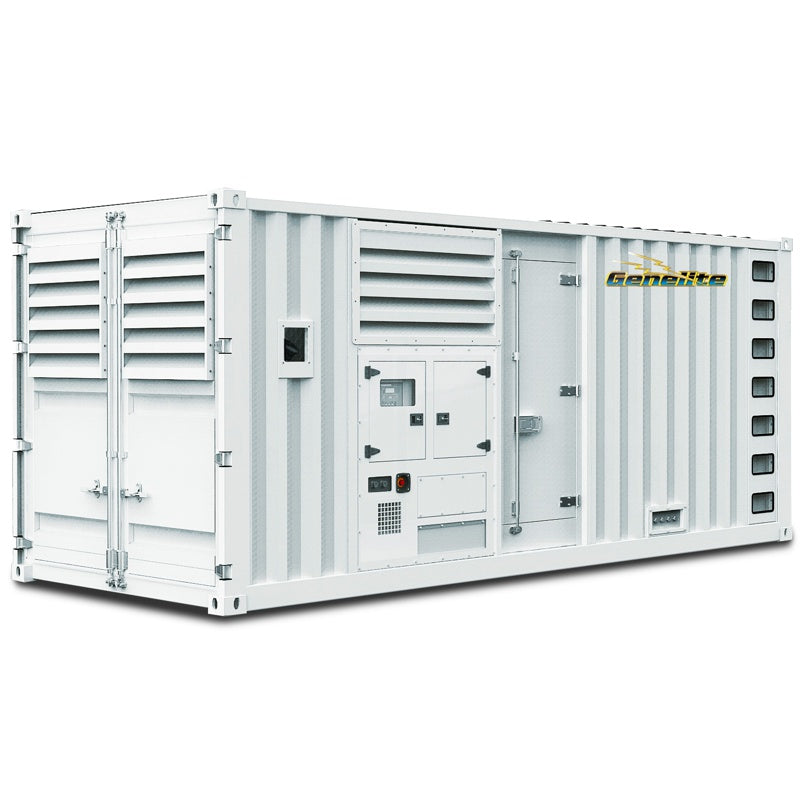

The GC750S is a three phase diesel generator set powered by a Cummins KTA38G2B, a twelve cylinder, 37.5 litre, turbocharged and aftercooled engine running at 1500rpm. A Leroy Somer LSA49.3M8 brushless alternator with AVR supplies 415V at 50Hz. Ratings are 750kVA / 600kW prime and 825kVA / 660kW standby, and the set is housed in a silenced 20 ft container.

Key features

• In its silenced container the set is rated at 78.8dB(A) at 7 metres, a figure to set against site noise limits.
• The 1450 litre bunded tank gives 12 hours at 75% load, and its bund is designed to contain fuel leaks.
• A DeepSea 7420 MKII controller and a four pole circuit breaker are fitted, the breaker switching the neutral as well as the phases.
• An electronic governor on the turbocharged, aftercooled engine regulates speed as the load changes.
• A battery charger and isolator keep the starting battery charged and let it be disconnected for servicing.
• Harmonic distortion is under 5%, which suits sensitive electronic equipment.

Full load fuel use is 160 litres an hour, easing to 120 at 75% load and 83 at 50% load. Oil capacity is 135 litres and coolant capacity is 194 litres. The prime rating is continuous running at variable load, at an average load factor of 75% with 10% overload for one hour in 12. The standby rating is emergency supply at an average load factor of 85%, with no overload and a limit of 400 hours a year.

What it will run

Sizing a 750kVA prime, 825kVA standby set starts with the site load schedule. It typically feeds a main switchboard supplying plant such as pump stations, compressors, chillers, conveyors and crushers, along with lighting and control systems. Add up the running load of everything that operates together, then check the starting demand of the largest motors and decide whether staged starting or soft starters are needed. Spread single phase loads evenly across the phases. Connection to site wiring should go through a changeover or transfer switch installed by a licensed electrician, and an electrician or engineer should assess the load schedule. Send us your load list and we will help with sizing.

The GC750S suits mine sites, large industrial plants, ports and logistics hubs, water and wastewater works and major construction projects.

Price on application. Sets of this size are quoted to their configuration, options and installation site. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 825 kVA three-phase diesel generator
• Cummins heavy-duty 1500 RPM multi-cylinder diesel engine
• Available in open (GC750) and silenced (GC750S) configurations
• Suitable for backup or prime power duty
• Optional mine/construction compliance, automatic transfer switches and ultra-silent configuration
• Free fuel and oil filter kit included
• Delivered load- and function-tested, ready to run once fuel is added
• Comes with a local load test certificate and factory warranty
• Weight: 11776 kg
• Dimensions (L x W x H): 605.8 x 243.8 x 259.1 cm
• Rated output: Prime 750kVA / 600kW, standby 825kVA / 660kW
• Engine: Cummins KTA38G2B, 12 cylinders, 37.5 L, turbocharged and aftercooled, electronic governor
• Alternator: Leroy Somer LSA49.3M8, brushless with AVR
• Voltage and frequency: Three phase, 415V, 50Hz
• Fuel consumption: 160 L/h at 100% load, 120 L/h at 75% load, 83 L/h at 50% load
• Controller: DeepSea 7420 MKII, four pole circuit breaker
• Noise level: 78.8 dB(A) at 7 m (silenced container)
• Enclosure: 20 ft ISO container
• Fuel capacity: 1450 L, 12 hours run time at 75% load
• Capacities: Oil 135 L, coolant 194 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
