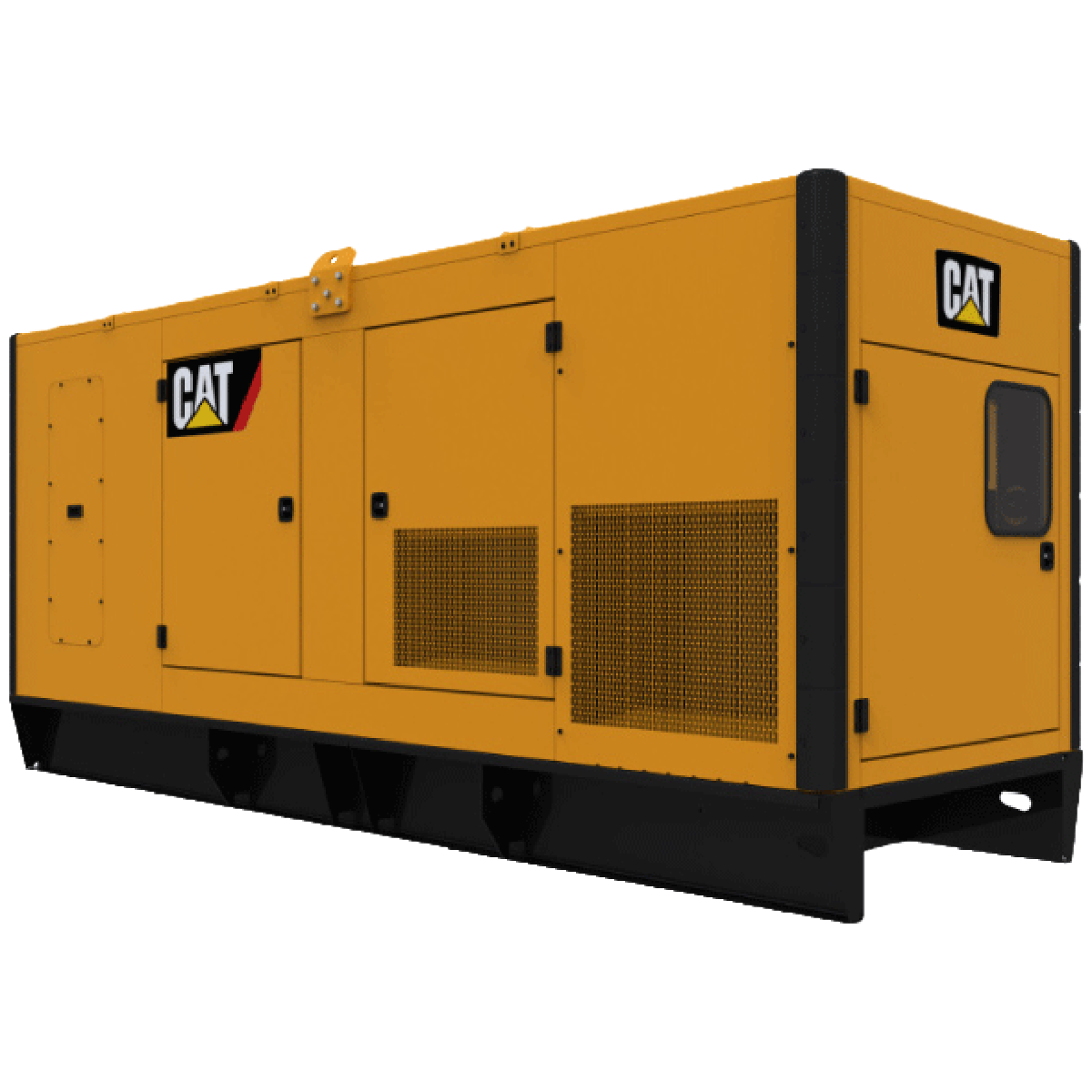

715kVA CAT Diesel Generator DE715 ENCL

The DE715 is a Cat C18 diesel generator set rated at 715 kVA / 572 kW standby and 650 kVA / 520 kW prime. The standby rating applies at 50 Hz, 415 V and a power factor of 0.8, with the engine running at 1500 rpm on the Low Fuel Consumption strategy. The engine is the Cat C18 ATAAC, an in-line six cylinder, four-stroke, 18.13 litre diesel, and the alternator is a Leroy Somer unit.

Key features

• The C18 has a 14.5:1 compression ratio and runs at 1500 rpm to produce 50 Hz output.
• A Cat Electronic Governor (ADEM A4) controls engine speed electronically.
• The EMCP 4.2 control system is standard on the set.
• The alternator (frame LC7234H) uses permanent magnet excitation and has a temperature rise of 163°C.
• Motor starting capability is 1581 skVA (995 A) at a 30% voltage dip, a figure to check against your largest motors.
• Starting is on a 24 V electrical system.
• Maximum exhaust back pressure is 10.0 kPa, which gives the installer a limit to design the exhaust against.

Fuel consumption is 146.1 L/h at full load including the fan, 108.0 L/h at 75% load, 73.2 L/h at 50% and 41.1 L/h at 25%, so running costs can be estimated for your duty cycle. Run time is 11.1 hours at 75% load. Noise is 73 dBA at 7 m. Coolant capacity is 20.8 litres.

What it will run

At 715 kVA / 572 kW standby, this set is sized for site loads rather than single circuits: process plant, large air conditioning and refrigeration, pumping and general distribution. Build the load schedule from running loads, then test it against motor starting, because the largest motors and their starting method decide how much of the 1581 skVA is used. Have an engineer or electrician assess the schedule. Connection to the site switchboard, including any automatic transfer switch, must be installed by a licensed electrician. Send us your load list and we will help with sizing.

The DE715 suits factories and processing plants, large commercial and retail buildings, data and telecommunications facilities, cold storage and distribution centres, water and pumping infrastructure, and large construction or civil projects that need standby power.

See the full large generator range.

Price on application. Sets at this scale are quoted to your configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Standby output: 715kVA / 572kW
• Prime output: 650kVA / 520kW
• Engine: CAT Diesel Engine C18
• Alternator: Leroy Somer
• Run time: 11.1 Hour Run @ 75% Load
• Noise level: 73 dBA @ 7m
• Dimensions (L x W x H): 532 x 192 x 224.5 cm
• Weight: 5824 kg
• Frequency and voltage: 50Hz, 415V
• Engine speed: 1500 rpm
• Power factor: 0.8
• Engine configuration: C18 ATAAC, in-line 6 cylinder, 4-stroke diesel, 18.13 litres, 14.5:1 compression ratio
• Fuel consumption: 146.1 L/h at 100% load (with fan), 108.0 L/h at 75%, 73.2 L/h at 50%, 41.1 L/h at 25%
• Governor: Cat Electronic Governor (ADEM A4)
• Control system: EMCP 4.2
• Alternator excitation: Permanent magnet, frame LC7234H, 163°C temperature rise
• Motor starting: 1581 skVA, 995 A at 30% voltage dip
• Starting battery: 24V
• Coolant capacity: 20.8 litres
