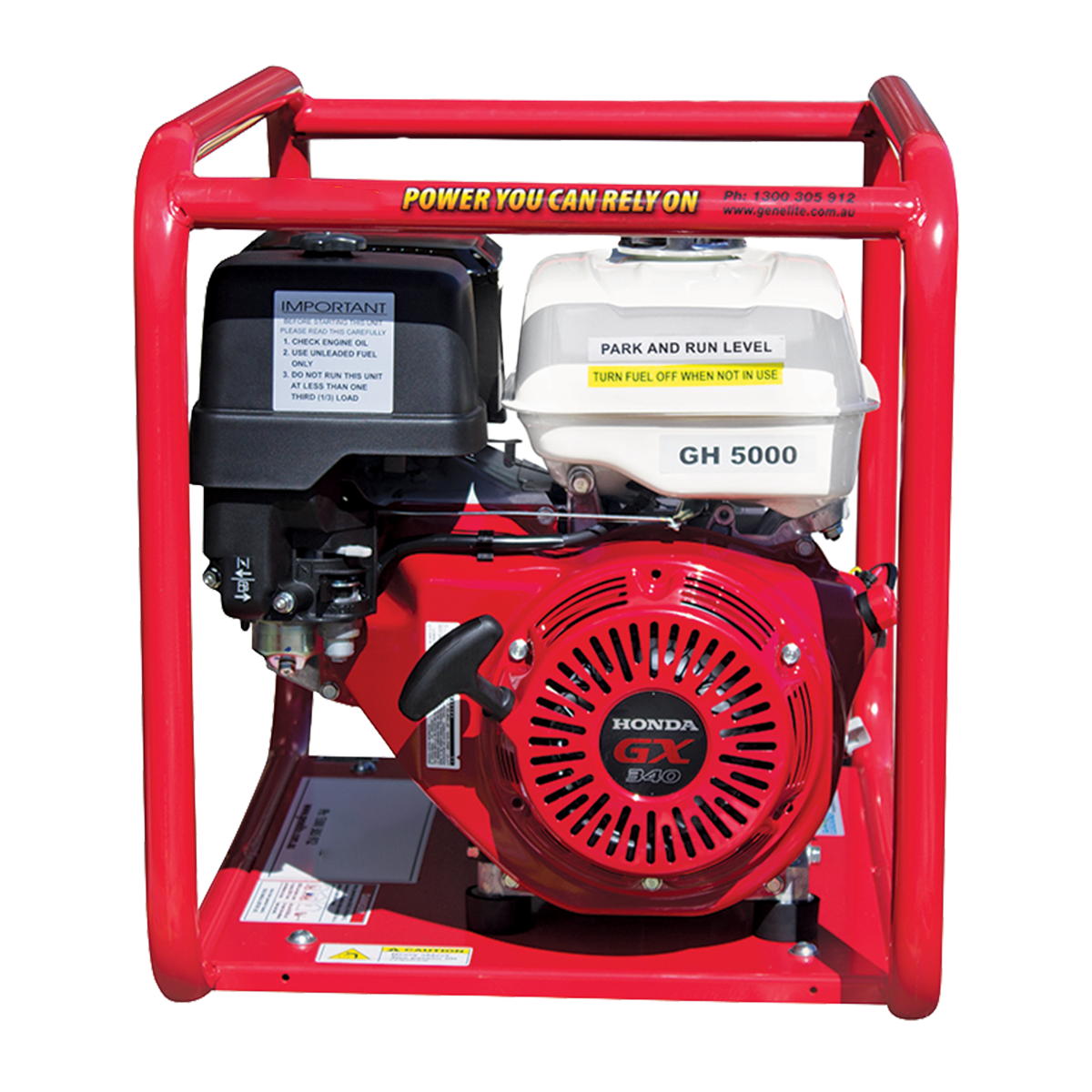

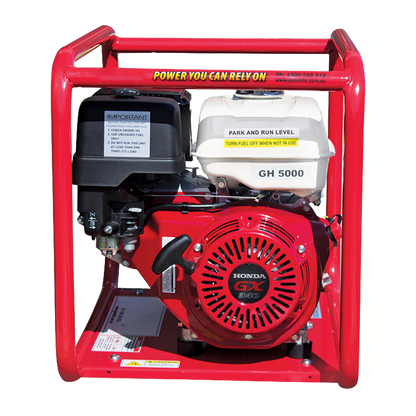

6kVA Honda Petrol Generator GH5000

Powered by a Honda GX340 single cylinder overhead valve (OHV) engine of 337cc, the Honda GH5000 is a single phase petrol generator with a 6kVA (5kW) output. An AC synchronous brushless alternator supplies 240V at 50Hz, the engine runs at 3000rpm, and starting is by recoil pull cord.

Key features

• Two switched 15A 240V GPO outlets share the output, and thermal overload protection helps guard against sustained overload.
• Harmonic distortion is less than 5%, which makes the output suitable for sensitive electronics such as laptops, TVs and phone chargers.
• The brushless alternator carries Class H insulation, a high temperature class for the windings, and has no carbon brushes to wear out.
• Recoil starting works without a battery, which suits a set that may sit unused between jobs.
• A large roll frame surrounds the set to protect the engine and alternator from knocks.
• A 3 year limited engine warranty applies to the Honda engine.

The 6.1 litre tank gives 3 hours at full load and 4.2 hours at 60% load, which is about 2 litres an hour at full load and about 1.5 at 60%. Noise is 72 dB(A) measured at 7 m.

What it will run

The 5kW rating is about 21A at 240V, and the 6kVA figure is about 25A. That typically suits a workshop or site set-up of a bench grinder or drop saw, lighting, a fridge and a water pump, with the running total kept inside the rating. Compressors, pumps, fridges and saw motors draw a surge at start, so allow headroom above the running total. Read the compliance plate on each appliance for its rated watts or amps and add up everything that will run at once. Home backup must go through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size it.

The GH5000 suits building sites, workshops, farms, events and home backup: anywhere you need 240V for tools, pumps and lighting beyond the reach of the mains.

Key specifications

• Maximum output: 6kVA/ 5kW
• Engine: Honda GX340
• Phase: Single phase
• Fuel tank: 6.1 litres
• Run time: 3 hrs @ 100%, 4.2 hrs @ 60% load
• Noise level: 72 dB(A) @ 7m
• Weight: 56 kg
• Dimensions (L x W x H): 76 x 50 x 57 cm
• Voltage and frequency: 240V, 50Hz
• Engine speed: 3000 rpm
• Alternator: AC synchronous brushless
• Harmonic distortion: Less than 5%
• Starting: Recoil
• Outlets: 2 x 15A 240V GPO, switched, with thermal overload
• Warranty: 3 year limited engine warranty
• Frame: Large roll frame
• Engine type: O.H.V. single cylinder
• Engine capacity: 337cc
• Engine oil capacity: 1.1 litres
• Insulation class: Class H
