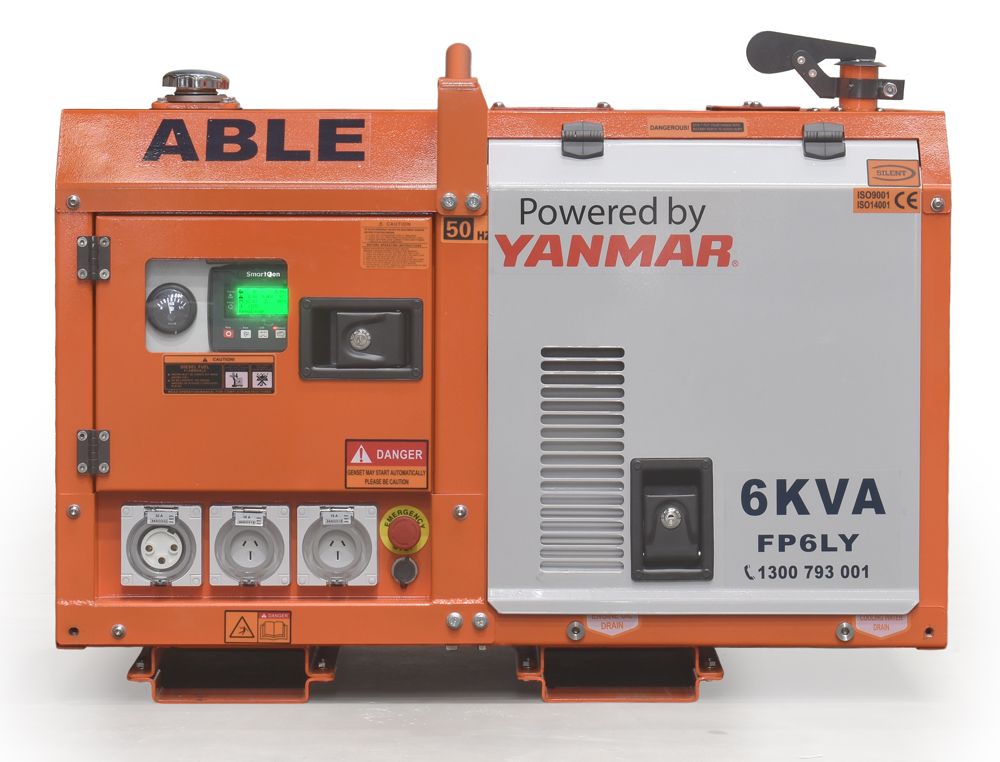

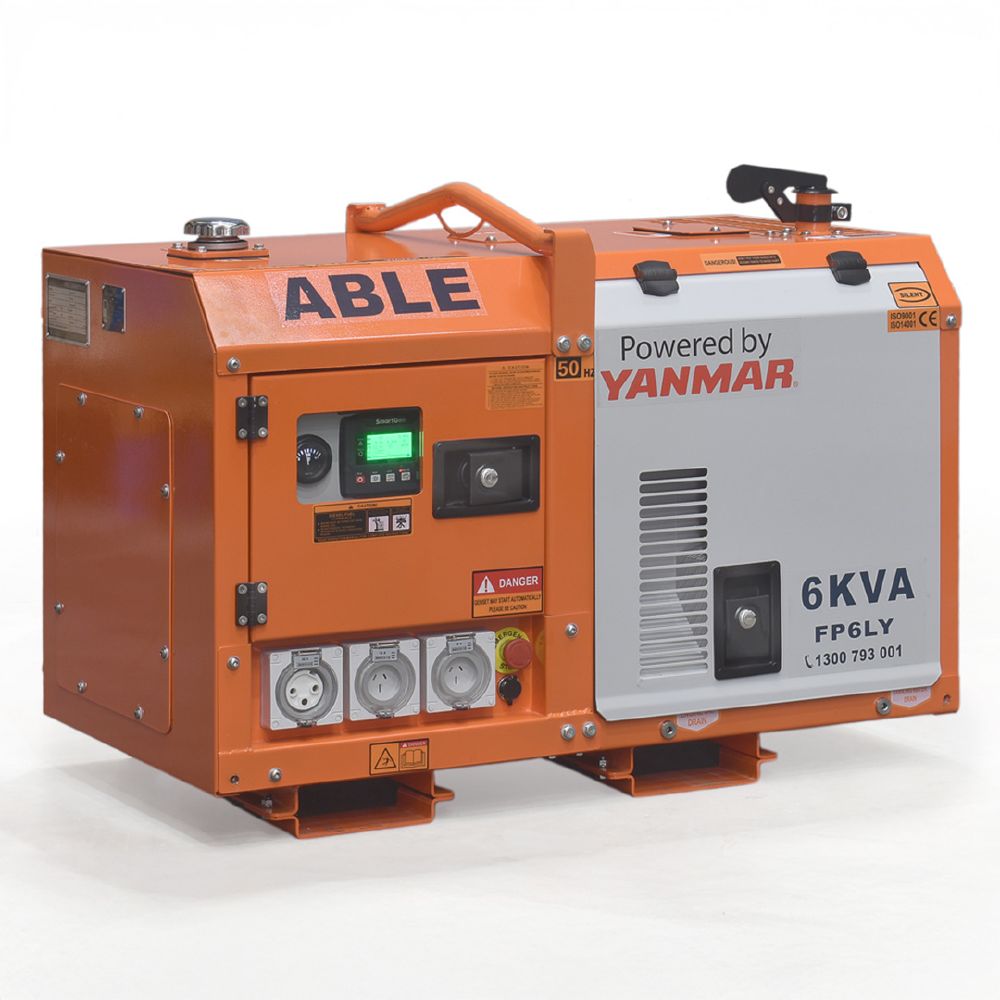

6kVA ABLE Yanmar Low Profile Diesel Generator FP6LY

The FP6LY is a 6kVA single phase low profile diesel generator rated 5.5kVA (5.5kW) prime and 6kVA (6kW) standby at 240V, 50Hz and a power factor of 1.0. It is powered by a Yanmar 2TNV70-HGE, a two cylinder, water-cooled diesel running at 3000 rpm, and drives a two-pole brushless synchronous alternator with AVR. Starting is electric at 12 volts with the battery included, and protection is an IP67-enclosed RCD.

Key features

• The low profile build keeps the height of the set down, which helps where headroom is limited.
• The engine runs at 3000 rpm and drives a two-pole alternator, the pairing that produces a 50Hz supply.
• The alternator is brushless, so there are no brushes to wear, and its AVR holds the output voltage steady as the load changes.
• A two-wire remote start input on the ComAp AMF5 controller lets an external switch or controller start the set.
• One 32A outlet and two 15A outlets are rated IP66 (dust tight and protected against powerful water jets).
• The canopy is sound deadened throughout and finished in a weather-resistant powder coat with stainless steel fittings.

At 2.4 litres an hour at prime load, the 28 litre tank lasts about 12 hours. Noise is 68 dB(A) at 7 m.

What it will run

At 5.5kW prime the FP6LY supplies about 23A at 240V, and at a power factor of 1.0 the kVA and kW figures are the same. Typically that suits lighting, fridges and freezers, a pressure pump, power tools and a small air conditioner, so long as the loads running together stay within the rating. A motor in a pump, compressor or air conditioner can draw several times its running current as it starts, so allow headroom for the largest one. The compliance plate on each appliance gives its running and starting power. To use it as home backup, have a licensed electrician install an inlet and changeover switch. Send us your load list and we will size it with you.

The FP6LY suits home backup, farm pumps and buildings, and work sites that need power for tools and lighting. With both a prime and a standby rating, it can cover a mains outage or run for regular periods.

Key specifications

• Output: 5.5kVA (5.5kW) prime, 6kVA (6kW) standby @ 1.0PF
• Rated current: 23 Amps (prime)
• Engine: Yanmar 2TNV70-HGE two-cylinder diesel, 3000rpm, water cooled
• Alternator: Single phase 2-pole brushless synchronous alternator with AVR
• Controller: ComAp AMF5, two-wire remote start
• Start type: 12 volt electric, battery included
• Phase / voltage: Single phase, 240V, 50Hz
• Fuel: Diesel
• Fuel tank: 28 L
• Fuel use: 2.4 L/hr at prime load
• Run time: 12 hrs continuous at prime load
• Noise level: 68 dB(A) @ 7m
• Outlets: 1 x 32 Amp and 2 x 15 Amp IP66 outlets
• Hardwire terminals: No
• Protection: RCD to Australian Standards (IP67 enclosed)
• Canopy: Sound deadened throughout, weather-resistant powder coat, stainless steel fittings
• Mine spec: Mine spec upgrade available
• Dimensions (L x W x H): 107 x 62 x 70 cm
• Weight: 298 kg
• Warranty: 2 years or 2,000 hours

Part of the ABLE Power range at Gen4Sale.
