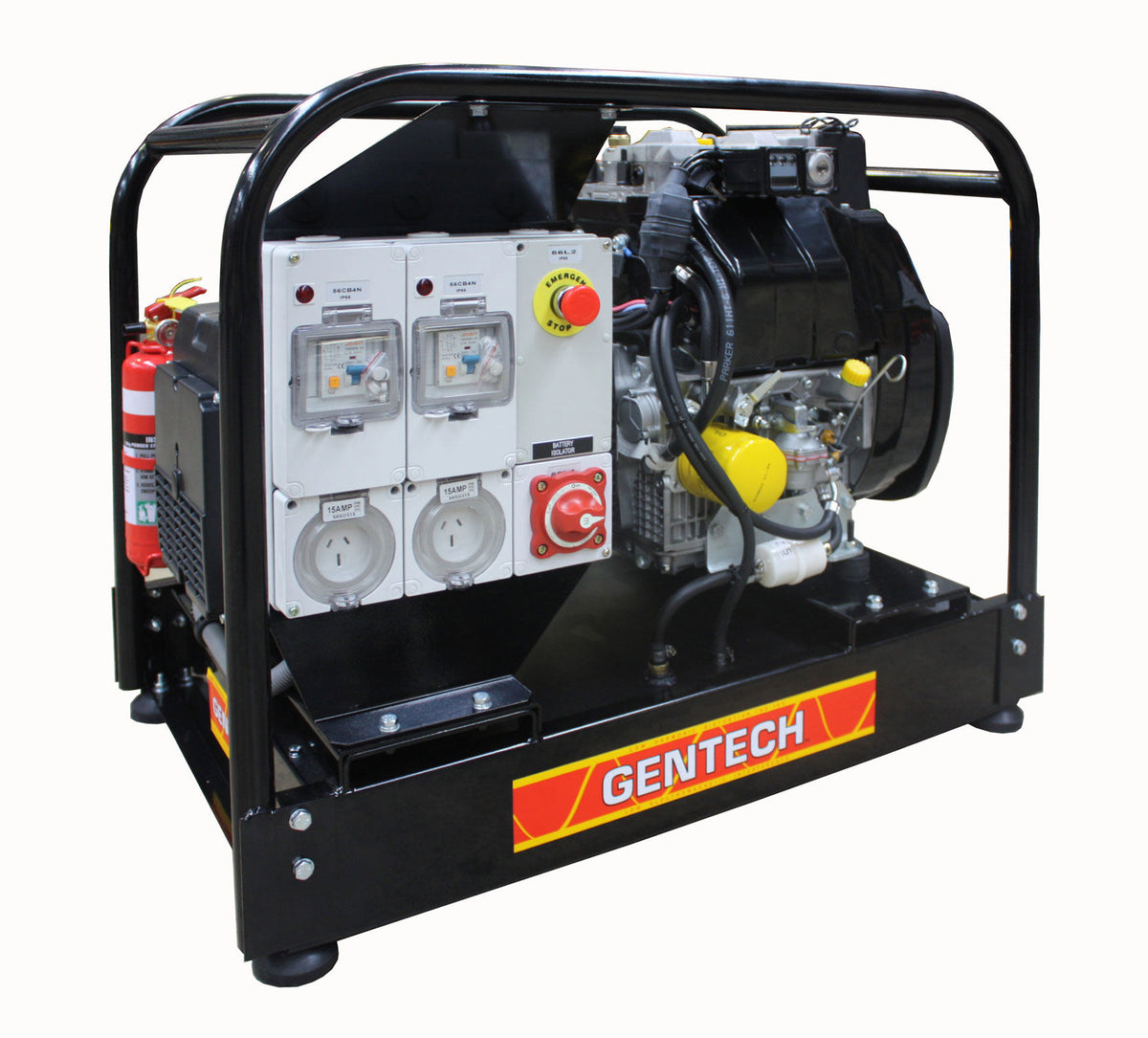

6.8kVA Gentech Mine Spec Diesel Generator ED6800YSRE-MINE

The ED6800YSRE-MINE is a Mine Spec single phase diesel generator with a maximum output of 6.8kVA at 0.8 power factor. A Yanmar L100N5 diesel engine drives a 7kVA-rated alternator at 230V, and the engine starts by recoil or electric start.

Key features

• A detachable fire extinguisher is fitted, so fire response equipment stays with the generator.
• A battery isolator switch and an emergency stop button let you isolate the battery and stop the set in an emergency.
• Individual lockable RCD switches are fitted as standard for earth leakage protection.
• The bunded fuel tank has a lockable cap, which helps contain spills and secure the fuel.
• A centre point lifting bar is fitted for handling with lifting equipment.
• Recoil and electric start give two ways to start the engine, so a flat battery does not stop you starting the set.

The 34 L tank gives about 21 hours at 80% load, using about 1.62 L/h at that load. Noise is 80 dBA at 7 m. Output is through two weatherproof 15 Amp outlets.

What it will run

At 6.8kVA and 0.8 power factor, the set gives about 5.4kW, which is about 23 amps in total. It typically runs site lighting, hand tools and small pumps within that figure. Motors draw several times their running load at start, so allow headroom for the largest motor and read the compliance plate on each appliance. Requirements differ between mines, so check your site's induction and equipment requirements against the fit-out before you buy. Send us your load list and we will help with sizing.

The ED6800YSRE-MINE suits contractors and operators working on mine sites, and it also works as a maintenance or standby set elsewhere. It is built for standby use and is not rated for prime or continuous duty.

Key specifications

• Duty rating: Standby only, not rated for prime or continuous power
• Maximum output: 6.8kVA @ 0.8PF
• Engine: Yanmar L100N5, 8.8 hp
• Start type: Recoil/Electric
• Fuel: Diesel
• Fuel tank: 34 L
• Run time: 21 hrs (approx) @ 80% Load
• Noise level: 80 dBA @ 7m
• Outlets: 2 x 15 Amp
• Phase: 1-Phase
• AVR / RCD: Individual lockable RCD switches fitted standard as a mine-safety feature
• Dimensions (L x W x H): 87.6 x 54.6 x 70 cm
• Weight: 165 kg
• Warranty: 24 months frame/alternator (Gentech); 12 months engine (Yanmar)
• Mine spec fit-out: Detachable fire extinguisher; Battery Isolator switch; Individual lockable RCD switches; 15amp weatherproof outlets; Emergency stop button; Bunded fuel tank with lockable cap; Centre point lifting bar. 'Built tough, this generator is fitted with all the specifications required for the mine site and is first when it comes to mining safety.'
• Alternator rating: 7 kVA
• Voltage: 230 V
• Fuel consumption: 1.62 L/hr at 80% load

Gentech generators are backed Australia-wide with national parts and service support.
