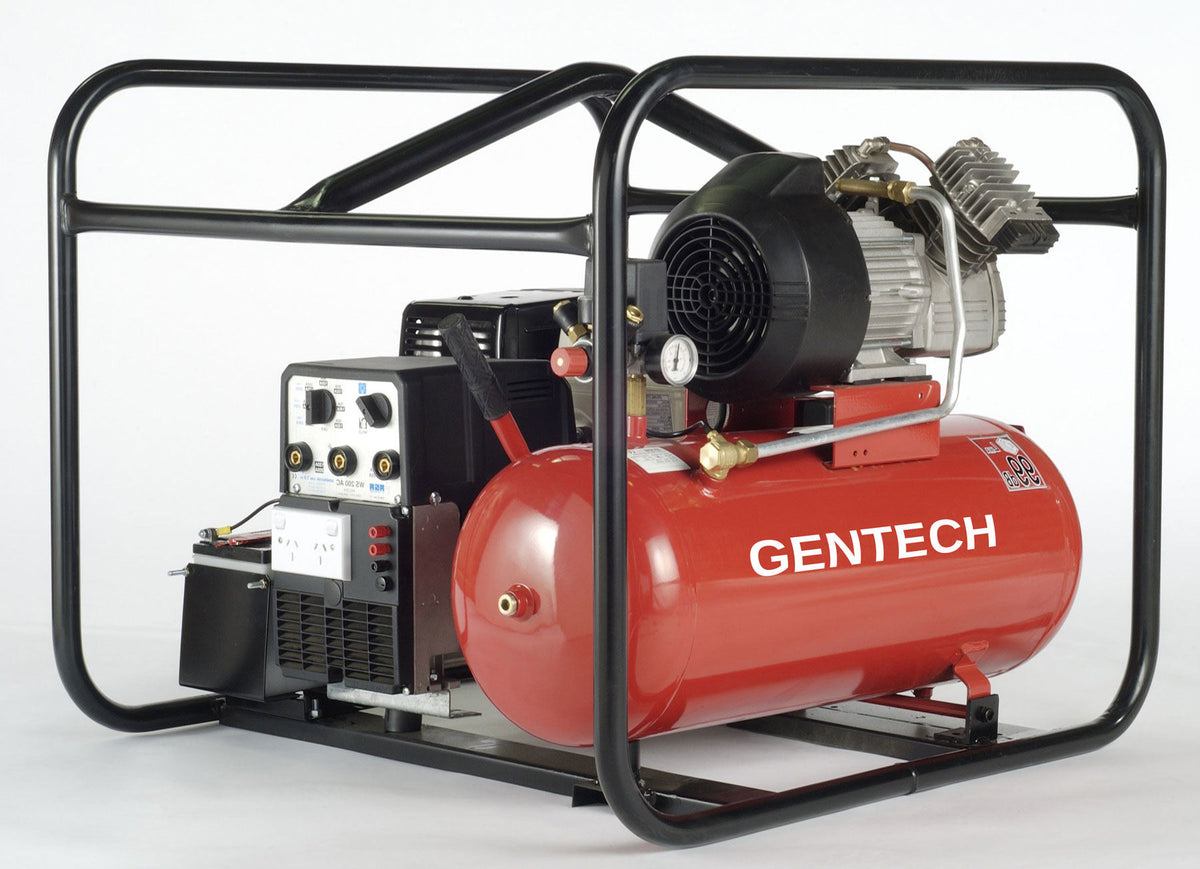

6.8kVA Gentech Diesel Workstation WS160-14-10YSRDE

The WS160-14-10-YSRDE is a diesel workstation that runs four machines from one Yanmar L100N5 engine: a single phase 230V generator with a maximum output of 6.8kVA at 0.8 power factor, a 160 amp AC welder at a 60% duty cycle, a 14 CFM air compressor with a 50 L air tank and a 10 amp battery charger. The engine starts by recoil or electric start.

Key features

• One engine and one fuel supply drive the generator, welder, compressor and charger, so there is a single engine to fuel and maintain.
• The AC welder gives 160 amps at a 60% duty cycle, which means about six minutes of full-current welding in every ten.
• The 14 CFM compressor and its 50 L air tank supply air tools on site.
• The built-in 10 amp charger recharges a flat battery without separate equipment.
• A brushless alternator has no carbon brushes to wear.
• An automatic decompressor reduces the effort of turning the engine over when starting.
• A centre point lift is fitted for handling with lifting equipment.

Fuel use at 80% load is about 1.65 L/h, which gives about 3.3 hours from the 5.4 L tank. Output is through two 15 Amp plugs. No RCD is fitted as standard; an ELB IP56 32 Amp RCD is an optional accessory.

What it will run

The generator side, at 6.8kVA and 0.8 power factor, gives about 5.4kW. It typically runs site lighting, a pump and power tools within that figure. Motors draw several times their running load at start, so read the compliance plate on each appliance. Compare each air tool's CFM demand with the compressor's 14 CFM. Everything shares one engine, so add up what you will use at the same time, or send us your load list and we will help with sizing.

The WS160-14-10-YSRDE suits field service crews, rural contractors, plant maintenance teams and workshops that need welding, air, power and battery charging from one unit. It is built for standby use and is not rated for prime or continuous duty.

Key specifications

• Maximum output: 6.8kVA @ 0.8PF
• Welding output: Welder 160 Amp (AC); Duty Cycle 60%. Also: Compressor 14 CFM, Air Tank Capacity 50 L; Battery Charger 10 Amp
• Engine: Yanmar L100N5
• Start type: Recoil/Electric
• Fuel: Diesel
• Fuel tank: 5.4 L
• Run time: 3.3 hrs @ 80% Load
• Noise level: 80 dBA @ 7m
• Outlets: 2 x 15 Amp plugs
• Phase / voltage: Single Phase, 230 V
• AVR / RCD: RCD not standard - 'ELB IP56 RCD 32 Amp' optional accessory only
• Dimensions (L x W x H): 90 x 87 x 68 cm
• Weight: 130 kg
• Warranty: 24 months frame/alternator (Gentech); 12 months engine (Yanmar)
• Rated output: 5440 W
• Frequency: 50 Hz
• Alternator: Brushless
• Auto decompressor: Yes
• Centre point lift: Yes

Gentech generators are backed Australia-wide with national parts and service support.
