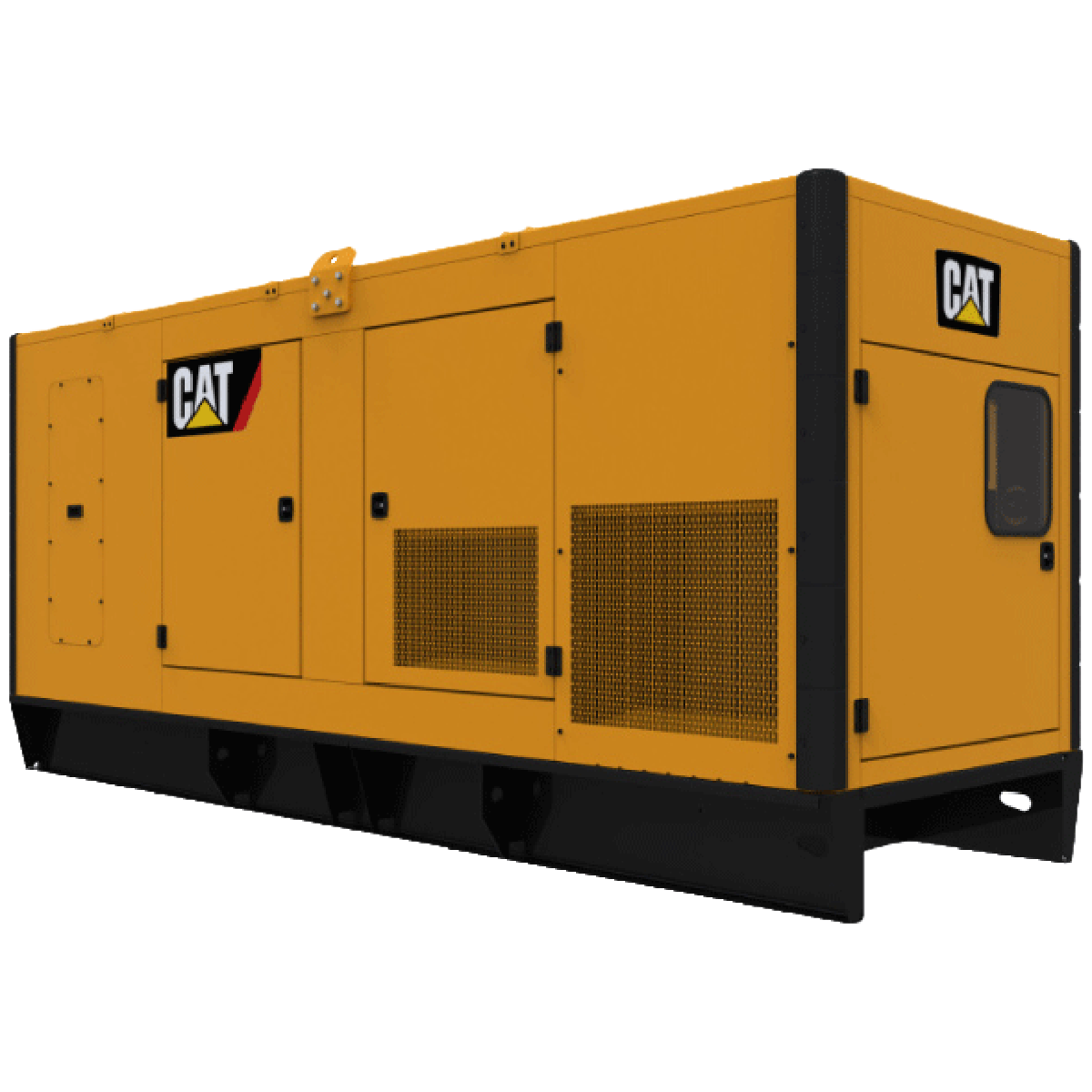

605kVA CAT Diesel Generator DE605 ENCL

The DE605 is a Cat C18 diesel generator set with a Leroy Somer alternator, rated at 605 kVA / 484 kW standby and 550 kVA / 440 kW prime.

Key features

• The set carries both a standby and a prime rating, so it can be sized against either duty.
• In both ratings the kW figure is 80% of the kVA figure, a power factor of 0.8, so loads should be checked against both figures.
• It is a stationary set, intended for a fixed installation.

Run time is 12.9 hours at 75% load. Noise is 72.4 dBA at 7 m, a figure that can be checked against a site noise limit.

What it will run

A set of 605 kVA is selected from the site's load schedule, not the nameplate. Record the running load on every circuit, add the starting demand of the largest motors (a motor can draw several times its running current as it starts), and check how the load divides across the phases. An engineer or electrician should assess the schedule before the set is specified. Connection to the site switchboard, including any changeover or automatic transfer switch, must be installed by a licensed electrician. Send us your load list and we will help with sizing.

The DE605 suits factories and processing plants, large commercial and retail buildings, cold storage, water and pumping stations, and construction or civil projects that need standby power.

See the full large generator range.

Price on application. A set of this size is quoted to your configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Standby output: 605kVA / 484kW
• Prime output: 550kVA / 440kW
• Engine: CAT Diesel Engine C18
• Alternator: Leroy Somer
• Run time: 12.9 Hour Run @ 75% Load
• Noise level: 72.4 dBA @ 7m
• Weight: 5824 kg

Part of the CAT range at Gen4Sale.
