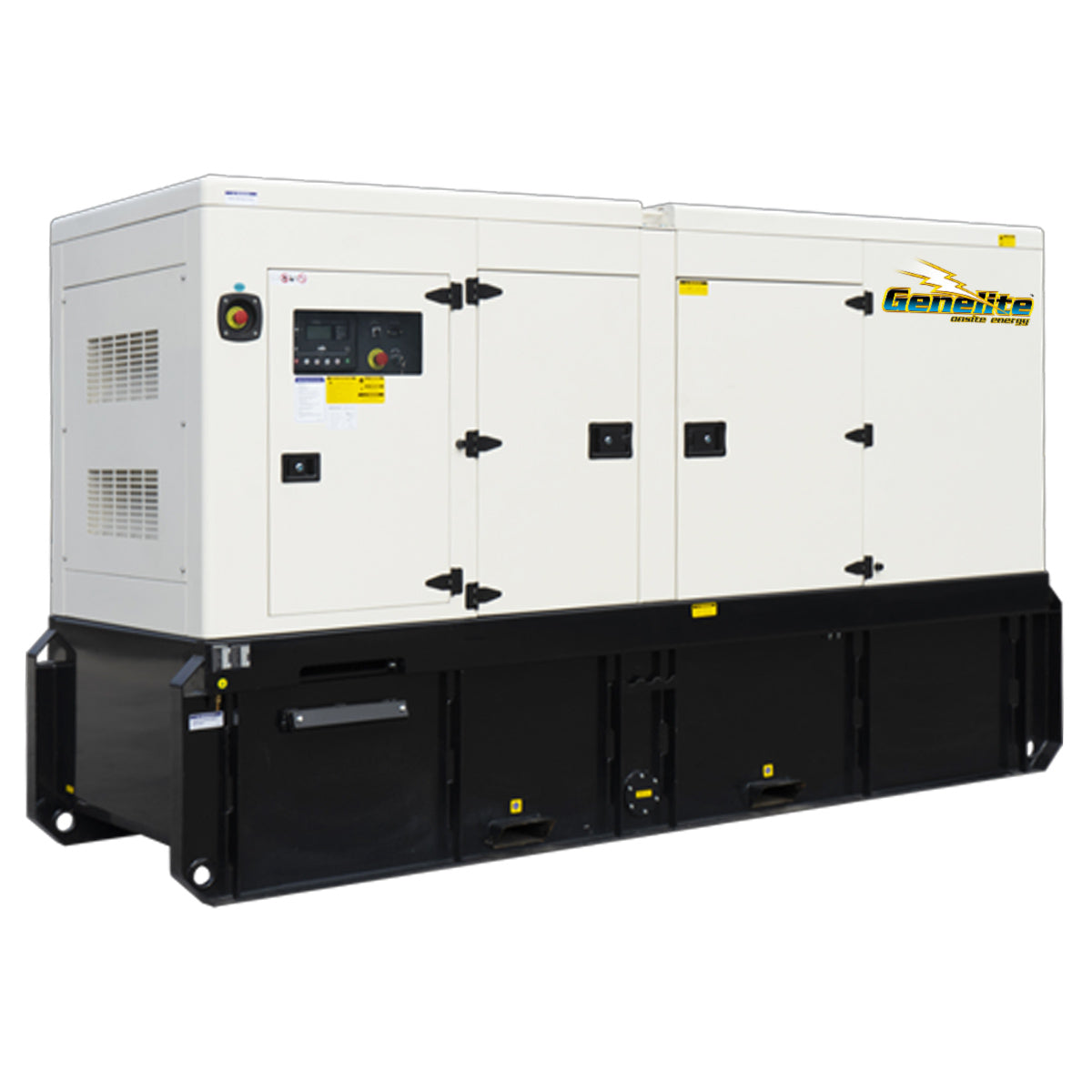

550kVA Cummins or Perkins Diesel Generator GC500S / GP500S

This page covers two 1500rpm three phase diesel generator sets in the 550kVA class: the Cummins-powered GC500S and the Perkins-powered GP500S. The GC500S runs a Cummins QSZ13-G3, a six cylinder, 13 litre, turbocharged and aftercooled engine, driving a Stamford S5L1D-D4 brushless alternator with AVR. It is rated 500kVA / 400kW prime and 550kVA / 440kW standby at 415V and 50Hz.

Key features

• An electronic governor on the turbocharged, aftercooled QSZ13-G3 holds engine speed steady as the load changes.
• The GC500S is fitted with a DeepSea 7420 MKII controller and a four pole circuit breaker, which switches all three phases and the neutral.
• The GC500S silenced canopy is rated at 77.4dB(A) at 7 metres, a figure to check against a site's noise limit.
• The 1650 litre fuel tank on the GC500S gives a run time of 22 hours at 75% load, most of a day between refuels.
• A battery charger and isolator on the GC500S keep the starting battery charged and let it be disconnected for servicing.
• The heavy duty skid base on the GC500S has fork pockets, so a forklift can handle the set on site.

At full load the GC500S uses 101 litres an hour, falling to 74.2 at 75% load and 48.9 at 50%. Its oil capacity is 45 litres and coolant capacity 65 litres. The GC500S prime rating is continuous variable-load running at an average load factor of 75%, with 10% overload for one hour in 12. Its standby rating is emergency supply at an average load factor of 85%, with no overload and a limit of 400 hours a year.

What it will run

At 550kVA standby (500kVA prime), the GC500S is sized around site loads rather than single appliances: lighting, pumps, compressors, air conditioning plant, workshop machinery and controls fed from a main switchboard. Add up everything that runs together, then allow for the starting surge of your largest motors, which can draw several times their running current. Spread single phase loads evenly across the phases. Connection to site wiring should go through a changeover or transfer switch installed by a licensed electrician, and an electrician or engineer should assess the load schedule before the set is specified. Harmonic distortion on the GC500S is under 5%, a figure that suits sensitive electronic equipment. Send us your load list and we will help with sizing.

The GC500S suits industrial plants, commercial buildings, mine and construction sites, water and wastewater works and large rural operations.

Price on application. The price depends on the engine option (Cummins GC500S or Perkins GP500S), the options chosen and the site, so each set is quoted individually. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 550kVA output, available Cummins- or Perkins-powered
• Open or silenced canopy configuration options
• Heavy-duty 1500 RPM multi-cylinder diesel engine
• Rated for 10,000+ hour lifespan in static/continuous installation
• Local load-test certificate, factory warranty and support
• Free fuel and oil filter kit included
• Optional automatic transfer switches and mine/construction-site compliance
• Supplied fluids-filled, load & function tested, ready to run
• Weight: 5227 kg
• Dimensions (L x W x H): 452 x 163.5 x 253.6 cm
• GC500S prime power: 500kVA / 400kW
• GC500S standby power: 550kVA / 440kW
• GC500S engine: Cummins QSZ13-G3, 6 cylinders, 13 L, turbocharged and aftercooled
• GC500S alternator: Stamford S5L1D-D4, brushless with AVR
• GC500S voltage and frequency: Three phase, 415V, 50Hz
• GC500S fuel consumption: 101 L/h at 100% load, 74.2 L/h at 75% load, 48.9 L/h at 50% load
• GC500S controller: DeepSea 7420 MKII, four pole circuit breaker
• GC500S noise level: 77.4 dB(A) at 7 m (silenced canopy)
• GC500S fuel capacity: 1650 L, 22 hours run time at 75% load
• GC500S capacities: Oil 45 L, coolant 65 L

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
