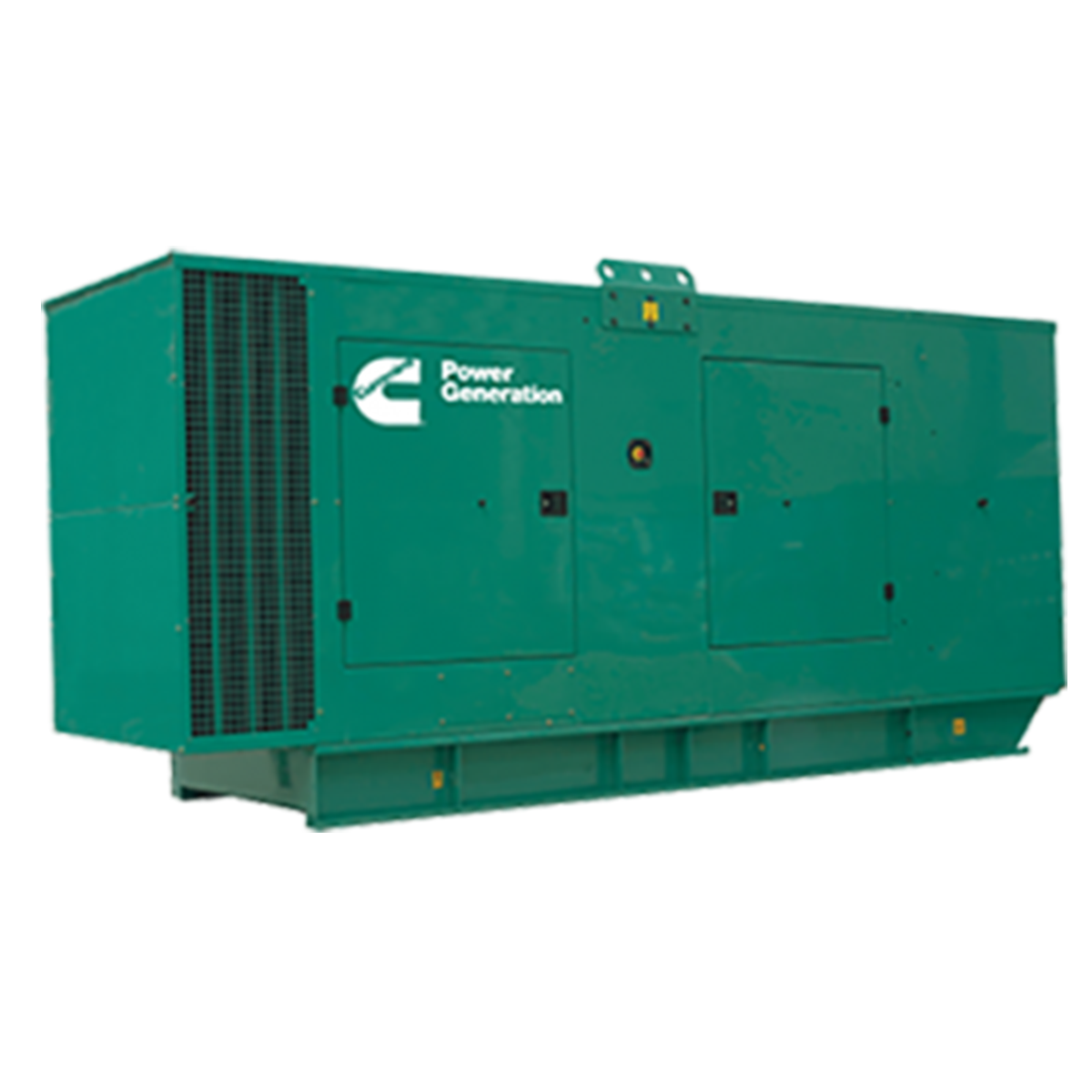

550kVA Cummins Diesel Generator C550D5

The C550 D5e is a three phase diesel generator set rated 550kVA (440kW) standby and 500kVA (400kW) prime at 50Hz. It runs on a Cummins QSX15 G8, a four-stroke, in-line, six-cylinder diesel that is turbocharged and charge air cooled, at 1500 rpm under an electronic governor with a 24V DC starting system. A set-mounted radiator cools the engine, and the alternator is a Stamford, wye connected.

Key features

• One set carries two ratings: standby for emergency supply, and prime for a varying load with no annual hour limit, with 10% overload capability available on prime.
• The QSX15 G8 compresses and then cools its intake air, which supports a gross engine output of 500 kWm at the standby rating and 444 kWm at the prime rating.
• Electronic governing keeps engine speed, and with it the 50Hz frequency, steady as loads come on and off.
• The radiator is mounted on the set and designed around a 50°C ambient, with 65.9 litres of coolant including the radiator.
• It comes as an open set for a plant room or in a sound-attenuated enclosure for an outdoor site.

The QSX15 G8 holds 91 litres of lube oil, and its maximum fuel flow of 424 litres an hour is the figure the fuel supply lines need to handle.

What it will run

For a set of this size the load schedule decides the specification. Total the running loads, note the starting current of the largest motors and any step loads, and have an electrician or engineer review the schedule before the set is ordered. Standby power (ESP) is for varying loads during a utility outage. Prime power (PRP) is for varying loads for unlimited hours. Balance the load across the three phases, and check the compliance plate on each item for its requirements. Connection to site wiring must go through a changeover or transfer switch installed by a licensed electrician. Send us your load list and we will help you size the set.

The C550 D5e suits heavy industrial sites, process and manufacturing plant, large pumping and water installations, cold chain facilities and commercial developments. Use it for standby cover, or as the prime supply on works where the mains is not available.

Price on application. Enclosure choice, configuration, options and the installation site all shape the price of a set this size. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• 550 kVA standby / 500 kVA prime, three-phase diesel generator
• Cummins QSX15 G8 engine, Stamford alternator
• Available as open set or sound-attenuated enclosure
• Genuine Cummins Worldwide Warranty
• Backed by Cummins' parts and service network
• Free fuel and oil filter kit included
• Supplied fluids-filled, load & function tested, ready to run
• Weight: 4137 kg
• Dimensions (L x W x H): 342.7 x 150 x 206.6 cm
• Model code: C550 D5e
• Rated output (kW): 440kW standby, 400kW prime
• Engine configuration: 6 cylinder, in-line, 4 stroke, turbocharged and charge air cooled
• Engine speed: 1500 rpm
• Frequency: 50Hz
• Governor: Electronic
• Starting voltage: 24V DC
• Gross engine power: 500 kWm standby, 444 kWm prime
• Lube oil capacity: 91 litres
• Coolant capacity (with radiator): 65.9 litres
• Cooling design ambient: 50°C
• Maximum fuel flow: 424 L/h
