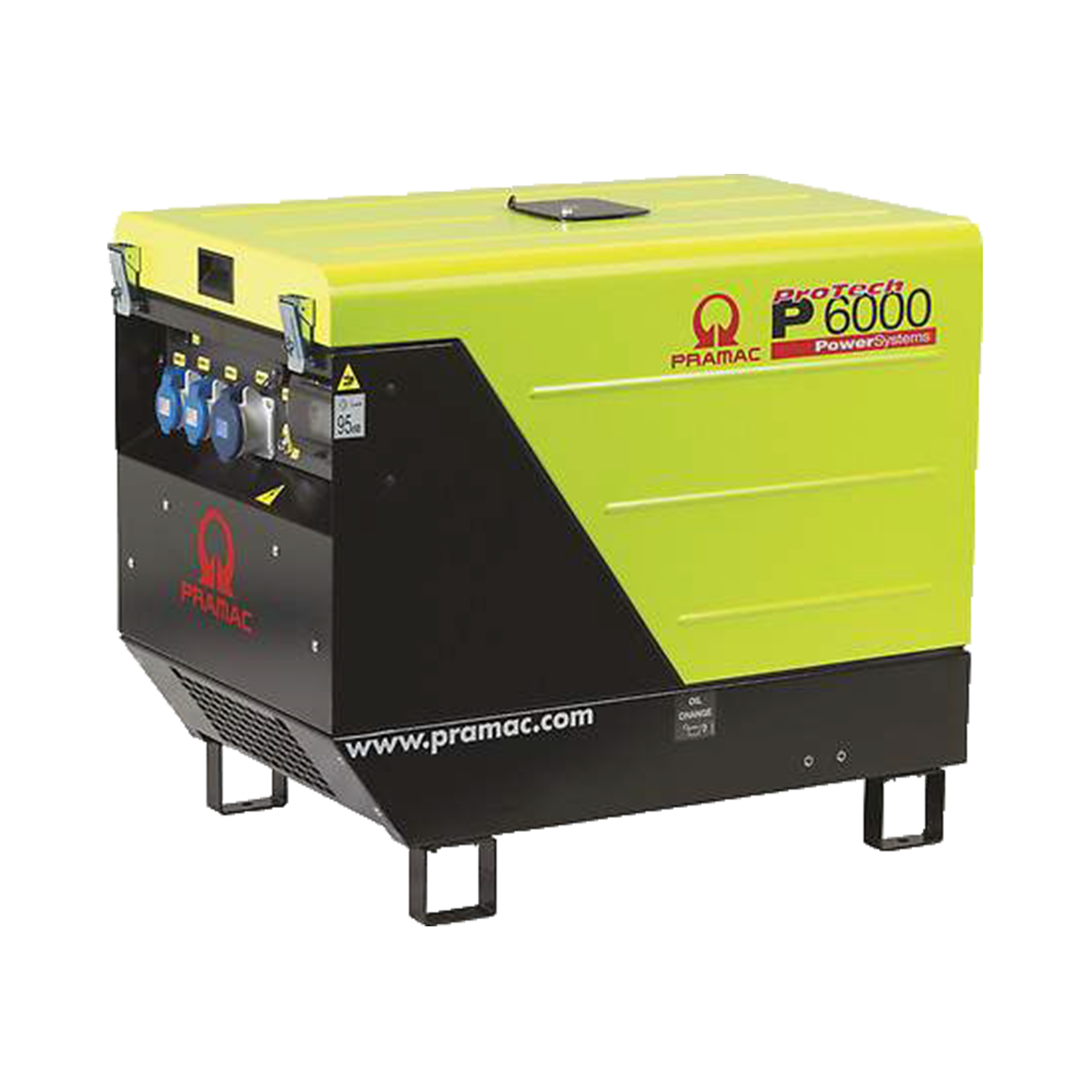

5.9kVA Pramac Diesel Generator P6000

The P6000 is a single phase diesel generator rated 5.9kVA (5.3kW) standby (LTP) at 50Hz, with a power factor of 0.9. It is powered by a Yanmar L100N, an air-cooled, naturally aspirated 435cm³ diesel running at 3000 rpm under a mechanical governor, and it starts electrically. The alternator is a two pole brush-type unit with Class H insulation, IP23 protection and AVR 520 electronic voltage regulation.

Key features

• Electric starting means the engine does not have to be cranked by hand.
• Air cooling means there is no coolant to check or top up.
• The mechanical governor holds the engine at 3000 rpm, which keeps the output at 50Hz as the load changes.
• AVR 520 electronic regulation holds the output voltage within 2%, so the supply stays steady as the load changes.
• Class H insulation gives the alternator windings thermal headroom.
• IP23 protection guards the alternator against larger solid objects and light water spray.

The 24 litre tank gives 16.44 hours at 75% load and 12.37 hours at 100% load, using 1.46L/h and 1.94L/h. Noise is 65 dB(A) at 7 m.

What it will run

At 5.3kW standby the P6000 supplies about 22A at 240V (5.3kW / 240V, approximate). That typically covers lighting, a fridge or cool room, a pressure pump and workshop power tools on one single phase supply, as long as the larger motors are not all starting at once. Motors in pumps and compressors draw several times their running current at start, so size the set against your largest motor first. Check the compliance plate on each appliance for its running and starting figures, then add them up. Connecting the set to a building's wiring needs an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size it.

The P6000 suits backup power for shops, workshops, farm sheds and site offices, and intermittent power on worksites. It is built for standby use and is not rated for prime or continuous duty.

Price on application. A set like this is quoted to suit the options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Duty rating: Standby only, not rated for prime or continuous power
• Power output: 5.9kVA
• Engine: Yanmar Diesel Engine L100N
• Phase: Single phase
• Fuel tank: 24 litres
• Run time: 16.44 Hour Run @ 75% Load
• Noise level: 65 dBA @ 7m
• Dimensions (L x W x H): 99 x 60.2 x 82.6 cm
• Weight: 186 kg
• Standby rating (LTP): 5.9kVA / 5.3kW
• Frequency: 50Hz
• Power factor: 0.9
• Engine type: Air-cooled, naturally aspirated, 435cm³, 3000 rpm, mechanical governor
• Starting: Electric
• Alternator: Brush type, 2 poles, Class H insulation, IP23
• Voltage regulation: Electronic (AVR 520), voltage tolerance 2%
• Fuel consumption: 1.46L/h at 75% load; 1.94L/h at 100% load
• Run time at 100% load: 12.37 hours
• Sound power level (LWA): 93 dB(A)
• Engine oil capacity: 1.6 litres

Part of the Pramac range at Gen4Sale.
