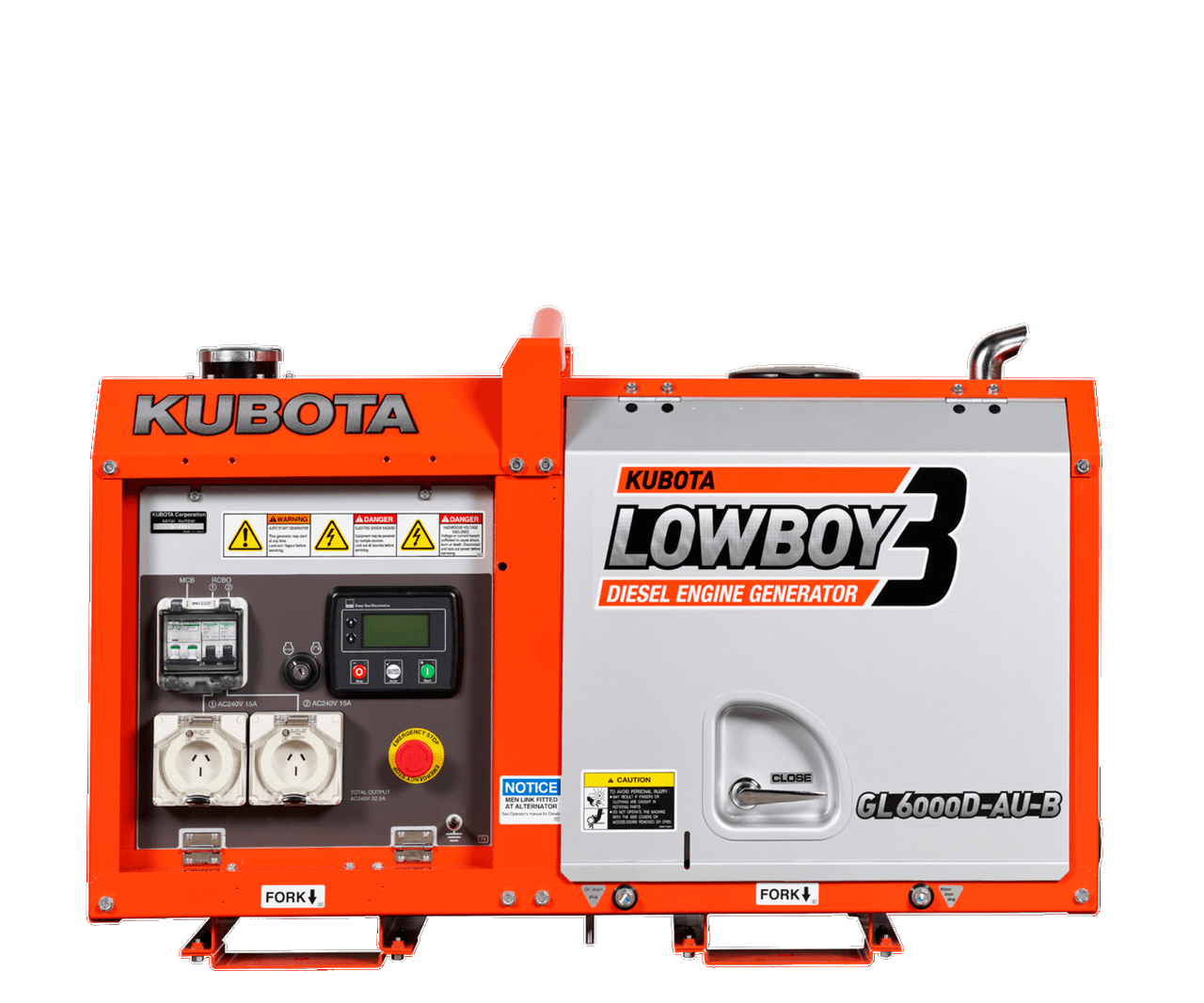

6kVA Kubota Diesel Generator GL6000

The GL6000 is a 5.5kVA single phase diesel generator powered by a Kubota Z482, a vertical, two cylinder, water-cooled, 4-cycle diesel running at 3000 rpm. Rated output (COP) is 5.5kVA and 5.5kW at 240V and 50Hz, with a power factor of 1. A salient-pole, revolving-field alternator with an AVR system is direct coupled to the engine, and starting is electric. Protection is a 25A MCB and two 16A 30mA RCBOs, with the MEN link made at the alternator.

Key features

• The Kubota Z482 is direct coupled to the alternator, so there is no drive belt to adjust.
• A 25A MCB and two 16A 30mA RCBOs are factory fitted, protecting against overload and electric shock.
• Automatic shutdown on high water temperature or low oil pressure, plus an emergency stop button and a shutdown if the engine room door is opened, protects the engine and the operator.
• Covers over the engine cooling fan and the generator, and a starter safety system that stops the starter engaging again once the engine is running, make for safer operation.
• Single-sided maintenance and a centrally located control panel make oil, fuel, coolant and battery checks a simple job.
• A large capacity sump extends oil change intervals to 200 hours, which reduces downtime.
• Double element air cleaners are standard, which suits dusty or sandy sites.

The 28 litre tank and a consumption of 2.4 litres an hour at full load give about 12 hours of running at full load. Rated current is 22.9A at 240V. Two 15A receptacles (IP66 rated) are fitted, and the starting battery is a 44B19R (12V, 27Ah). Engine oil capacity is 2.2 litres and coolant capacity is 3.7 litres. Forklift openings in the base and a one point lifting eye are built in for handling with lifting equipment.

What it will run

At 5.5kW and 22.9A, the GL6000 typically covers workshop and farm loads such as lighting, a fridge and freezer, a pressure pump and power tools, provided they are not all starting at once. Motors in pumps and compressors draw several times their running current at start, so allow headroom for your largest motor. Check the compliance plate on each appliance for its running and starting watts, then add them up. For home backup, connection is through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size it.

The GL6000 suits workshops, farms, small businesses and building sites, and it can back up a home through an outage.

Key specifications

• Power output: 5.5kVA
• Engine: Kubota Diesel Engine Z482
• Phase: Single phase
• Fuel tank: 28 litres
• Run time: 12 hours at full load
• Dimensions (L x W x H): 106.6 x 61.8 x 69.8 cm
• Weight: 235 kg
• Rated output (COP): 5.5kVA / 5.5kW
• Voltage and frequency: 240V, 50Hz
• Rated current: 22.9A
• Power factor: 100%
• Engine type: Vertical, water-cooled, 4-cycle diesel, 2 cylinders
• Engine speed: 3000 rpm
• Alternator: Salient-pole, revolving-field AC generator with AVR, direct coupled
• Voltage regulation: 5% (no load to full load)
• Fuel consumption: 2.4 L/h at full load
• Starting: Electric start, 44B19R (12V, 27Ah) battery
• Receptacles: 2 x 15A (IP66 rated)
• Electrical protection: 25A MCB (2 pole), 2 x 16A RCBO 30mA (2 pole), MEN link at alternator

Part of the Kubota range at Gen4Sale.
