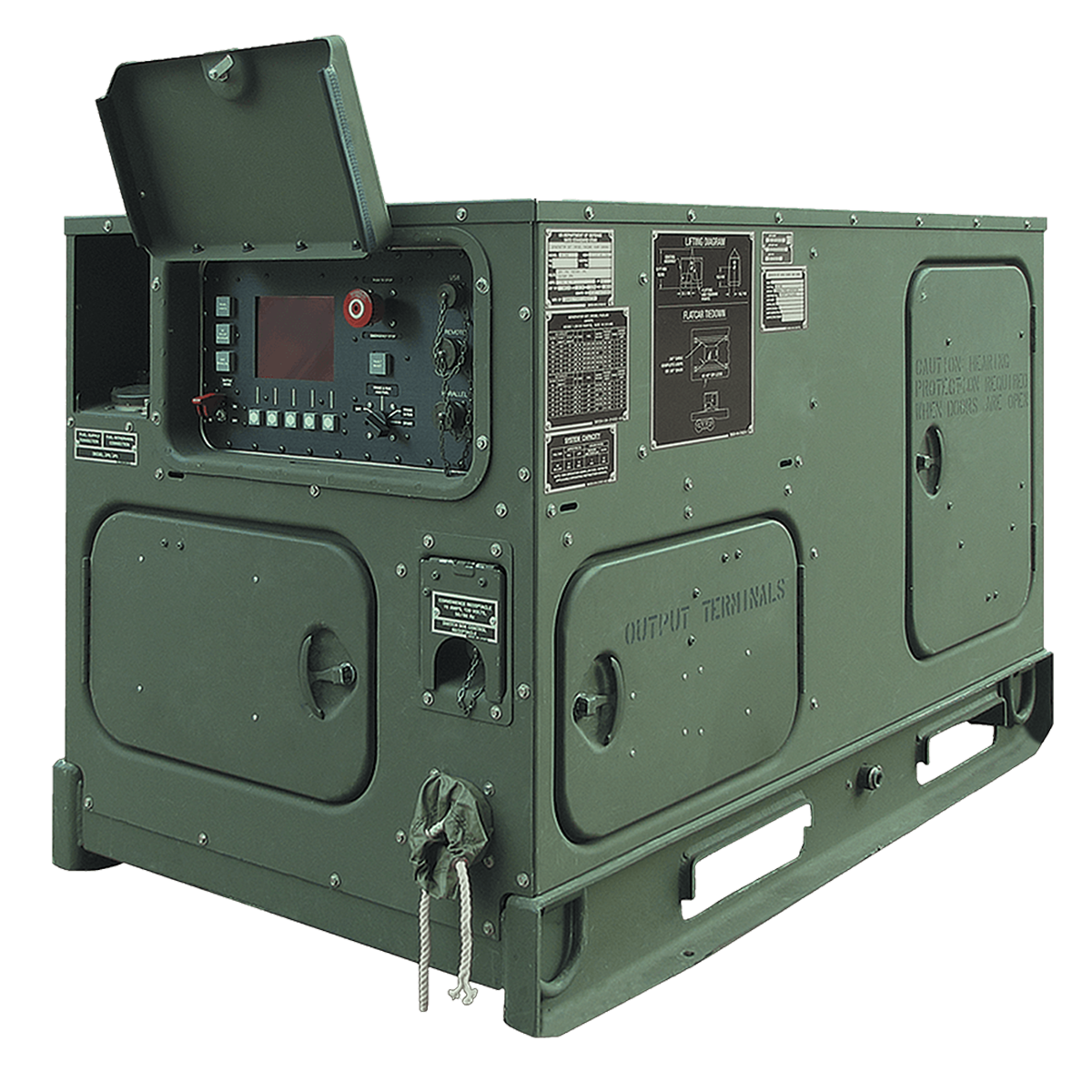

5.2kVA Cummins RMP Diesel Generator 5RMP-1030A

The 5RMP-1030A is a Cummins RMP (Rugged Mobile Power) diesel generator set for military use. It is rated at 5.2kVA at 50Hz and designed to the MIL-DTL-32496 military specification.

Key features

• Multi-fuel operation on JP-8, JP-4, DF-1, DF-2 and DF-A means the set is not tied to a single fuel grade.
• 24-volt starting with a NATO slave connection allows a start from another 24-volt source.
• Automatic two-button paralleling lets sets run together and share a load.
• Built-in diagnostics and prognostics support maintenance by showing the condition of the set.
• A low infrared signature makes the set harder to detect with infrared sensing.

What it will run

At 5.2kVA, this set typically suits a small group of loads: lighting, a fridge, battery charging and small power tools. Motors and compressors can draw several times their running current at start, so allow headroom for the largest one. Check the compliance plate on each appliance for its running and starting load, then add them up. Where the set feeds fixed wiring, connection is through a changeover switch installed by a licensed electrician. Send us your load list along with the voltage and phase you need, and we will help with sizing.

The 5RMP-1030A suits defence and military power supply, and other applications that need a small multi-fuel set designed to MIL-DTL-32496.

Price on application. This set is quoted to your configuration and requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Cummins Onan RMP model 5RMP-1030A
• Output (prime): 5.2kVA @ 50Hz; 5kW @ 60Hz
• Standards: Designed to MIL-DTL-32496; electromagnetic compatibility to MIL-STD-461F; radio frequency emissions MIL-STD-2169; NATO STANAG 4135
• Multi-fuel capable (JP-8, JP-4, DF-1, DF-2, DF-A)
• Fuel consumption: 1.62 L/h at 100% load
• Fuel tank: 8 hours fuel tank with auxiliary fuel connections
• 24V starting with NATO slave connection
• Battery charging alternator: 45 A
• Low infrared and noise signature
• Noise level: 68 dB(A) @ 7m at full load
• Automatic two-button paralleling
• Controller: RMP Advanced Digital Control System (AdvDCS) with Masterless Load Demand (MLD)
• Built-in diagnostics/prognostics
• Alternator: YD-6060-5: brushless, 4 pole synchronous, 2/3 pitch stator, two bearing rotor, Class F and H insulation
• Phase / voltage (50Hz): 120V single phase @ 43A; 120/240V single phase @ 22A; 120/208V three phase @ 14A
• Phase / voltage (60Hz): 120V single phase @ 52A; 120/240V single phase @ 26A; 120/208V three phase @ 17A
• Power factor: Operates between 0.8 lagging and 1.0
• Voltage regulation: ±3% of rated voltage, no load to full load
• Waveform distortion (THDV): Less than 5% no load to full linear load; less than 3% for any single harmonic
• Rating basis: Prime: maximum power at a variable load for an unlimited number of hours; 10% overload available for a limited time
• Operating temperature: -45°C to 57°C
• Weight: 355 kg
• Dimensions (L x W x H): 114.8 x 81.6 x 91.8 cm

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
