450kVA Cummins Diesel Generator C450D5

The C450D5 is a three phase diesel generator set rated 450kVA (360kW) standby, with a prime rating as well, running at 1500 rpm. A Cummins QSG12-G2 drives it: a six-cylinder, cast iron, turbocharged and aftercooled diesel with an electronic governor and 24V DC starting. The Stamford alternator is wye connected, with a voltage range of 190 to 220V and 380 to 440V.

Key features

• Two ratings suit two duties: standby for emergency supply, and prime for a varying load with no annual hour limit.
• The QSG12-G2 is turbocharged and aftercooled, so combustion air is compressed and then cooled before it enters the cylinders, which supports its output.
• An electronic governor controls engine speed, which keeps frequency steady as the load changes.
• The cooling system is designed around a 50°C ambient, and the engine holds 48 litres of coolant including the radiator.
• The alternator winding is wye connected, so it has a star point that serves as the neutral of the three phase supply.

At full load the set uses 92 litres of fuel an hour on the standby rating and 82 litres an hour on the prime rating. Lube oil capacity is 34.1 litres.

What it will run

Plan from the site's load schedule, not from a nameplate: list the running loads, the starting current of the largest motors and any step loads, then have an electrician or engineer assess the schedule before the set is specified. Standby power (ESP) supplies the site for the length of a utility interruption. Prime power (PRP) carries a varying load for unlimited hours, with 10% overload capability. Spread the load evenly across the three phases and check each item's compliance plate. Connection to site wiring must go through a changeover or transfer switch installed by a licensed electrician. Send us your load list and we will help you size the set.

The C450D5 suits large commercial developments, industrial plants, pumping stations and cold storage that need standby power, and sites that need a prime supply for a varying load.

See the full large generator range.

Price on application. Configuration, options and the installation site all affect a set of this size, so each one is quoted individually. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Standby output: 450kVA / 360kW
• Prime output: 409kVA / 327kW
• Voltage: 190-220V and 380-440V
• Alternator: Stamford

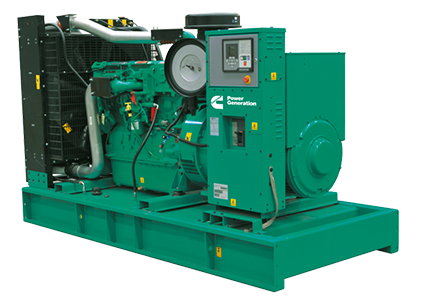

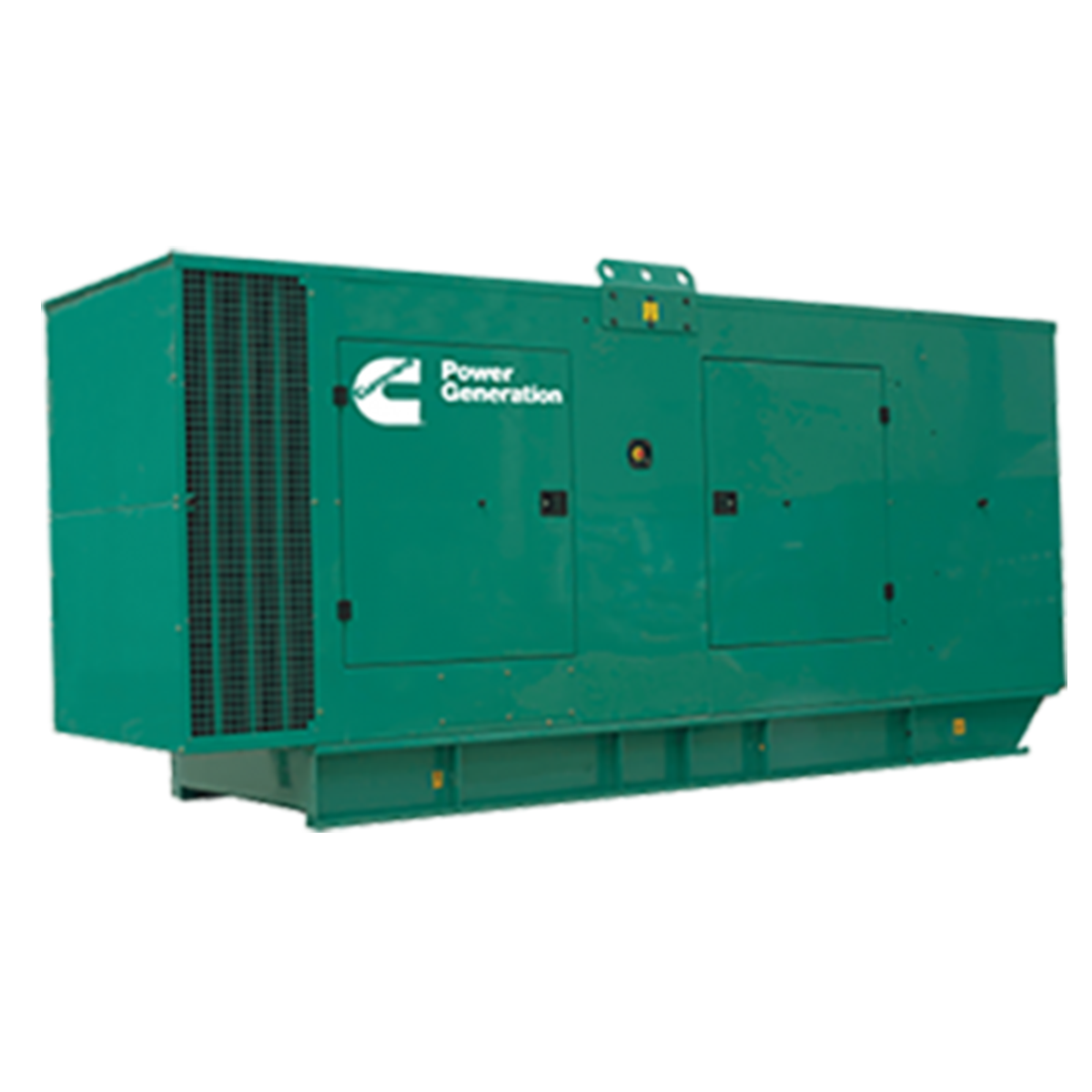

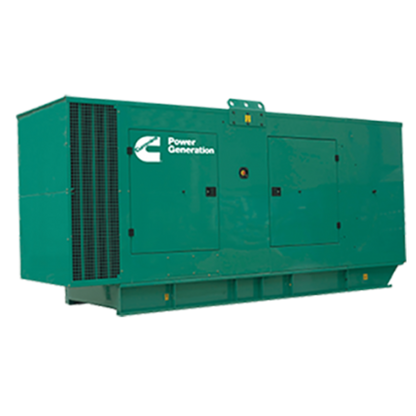

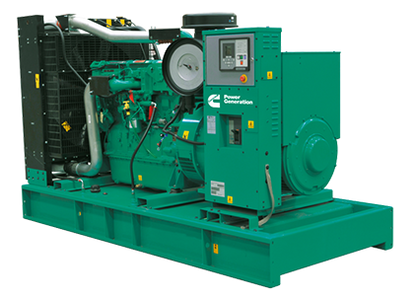

• Dimensions (L x W x H): 342.7 x 150 x 206.6 cm (open), 510.6 x 155.3 x 244.7 cm (enclosed)
• Weight: 3116 kg
• Engine: Cummins QSG12-G2, 6 cylinder, turbocharged and aftercooled
• Engine speed: 1500 rpm
• Frequency: 50Hz
• Governor: Electronic
• Fuel consumption (full load): 92 L/h standby, 82 L/h prime
• Lube oil capacity: 34.1 litres
• Coolant capacity (with radiator): 48 litres
• Starting voltage: 24V DC
• Cooling design ambient: 50°C
• Alternator connection: Wye, 3 phase
