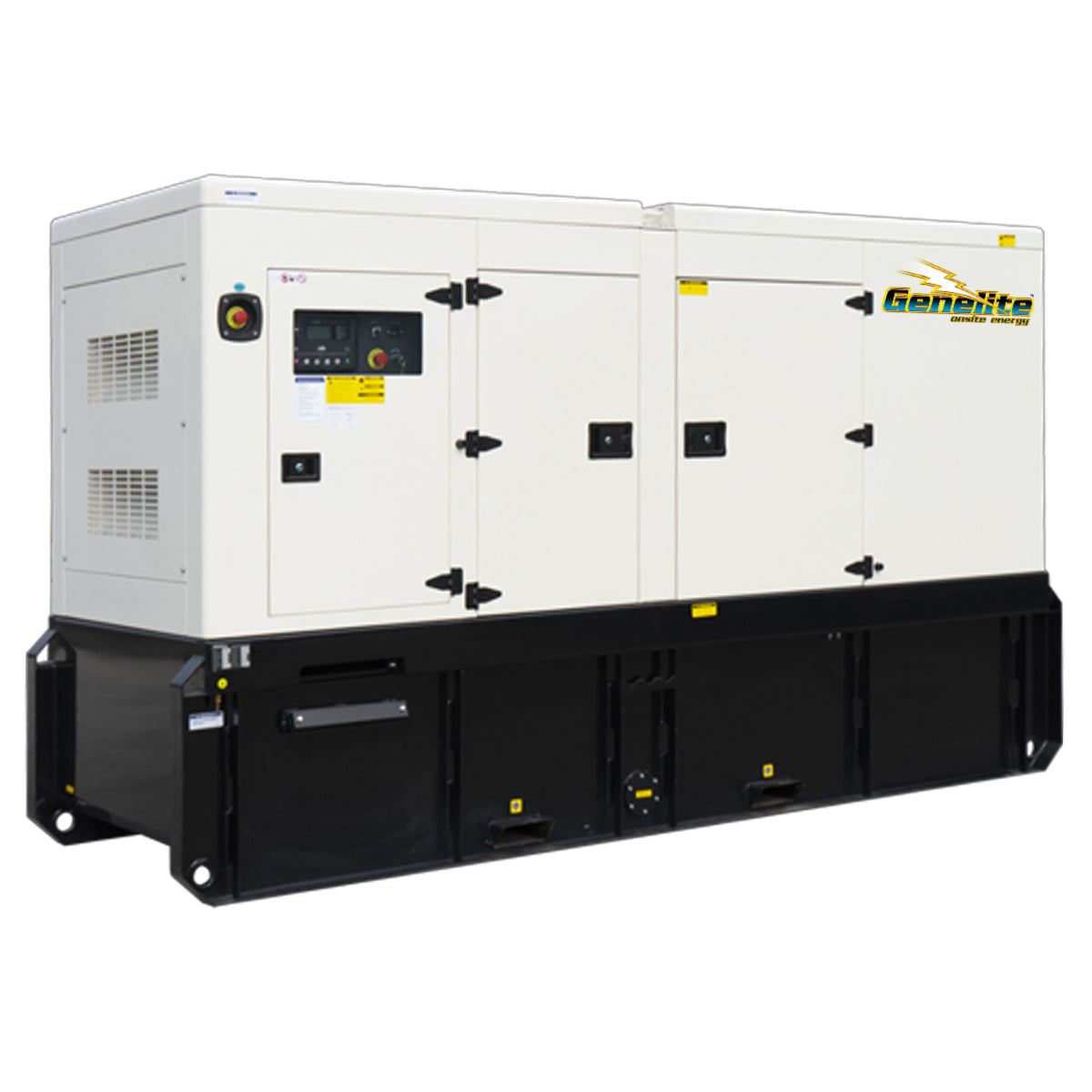

430kVA Perkins Diesel Generator GP400S

The GP400S is a three phase, 415V, 50Hz diesel generator set powered by a Perkins 2206C-E13TAG3, a six cylinder, 12.5 litre, turbocharged and aftercooled engine running at 1500 rpm. The alternator is a brushless Leroy Somer LSA47.2VS4 with an AVR.

Key features

• An electronic governor on the Perkins engine holds speed steady as the load changes.
• Harmonic distortion below 5% makes the supply suitable for sensitive electronic equipment.
• The silenced canopy is rated at 76.8 dB(A) at 7 m, so you can plan the site around a measured noise figure.
• The 1650 litre fuel tank is bunded, which helps contain any leak.
• A heavy duty skid base with fork pockets suits forklift handling, and the galvanised, powder coated canopy resists corrosion.
• A Deep Sea 7420 MKII controller and a four pole circuit breaker provide monitoring, control and output protection.
• A battery charger and isolator are fitted, so the starting battery stays charged and can be disconnected for servicing.

The tank gives 25 hours of running at 75% load. Fuel consumption is 85 litres an hour at 100% load, 65 at 75% and 46 at 50%. Engine oil capacity is 40 litres and coolant capacity is 51.4 litres. Each set comes with a local load-test certificate and a fuel and oil filter kit, and is load and function tested.

What it will run

The GP400S typically suits the combined three phase load of a plant or large building: production machinery, chillers, large pumps and compressors, and building services. Specify it from a site load schedule rather than the nameplate, and have an electrician or engineer assess running loads, motor starting and phase balance. The compliance plate on each large motor gives its running and starting load. The GP400S prime rating is for variable load at an average 75% load factor, with 10% overload for one hour in twelve, and its standby rating is for emergency supply at an average 85% load factor, with no overload and a limit of 400 hours a year. A building is connected through a changeover switch installed by a licensed electrician. Send us your load list and we will help with sizing.

The GP400S suits manufacturing plants, large commercial buildings, cold storage, quarries, pumping and treatment plants and major construction sites.

Price on application. Sets this size are quoted to your configuration, options and site requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Prime and standby ratings: 400kVA / 320kW prime, 430kVA / 344kW standby
• Custom-built for Australia's harsh environment
• Local load-test certificate and factory warranty included
• Free fuel and oil filter kit included
• Optional automatic transfer switches
• Available as ultra-silent model
• Supplied fluids-filled, load & function tested, ready to run
• Weight: 4785 kg
• Dimensions (L x W x H): 424.2 x 161.4 x 247.6 cm
• Engine: Perkins 2206C-E13TAG3, 6 cylinder, 12.5 L, turbocharged, aftercooled
• Voltage and frequency: 415V, 50Hz, three phase
• Alternator: Leroy Somer LSA47.2VS4, brushless with AVR, Class H insulation
• Harmonic distortion: Below 5%
• Governor: Electronic
• Fuel tank: 1650 L, bunded
• Fuel consumption: 85 L/h at 100% load, 65 L/h at 75% load, 46 L/h at 50% load
• Run time: 25 hours at 75% load
• Noise level: 76.8 dB(A) at 7 m (silenced canopy)
• Controller: Deep Sea 7420 MKII with four pole circuit breaker

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
