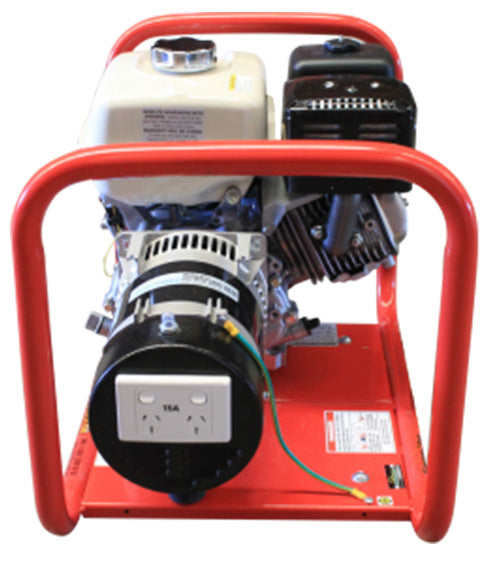

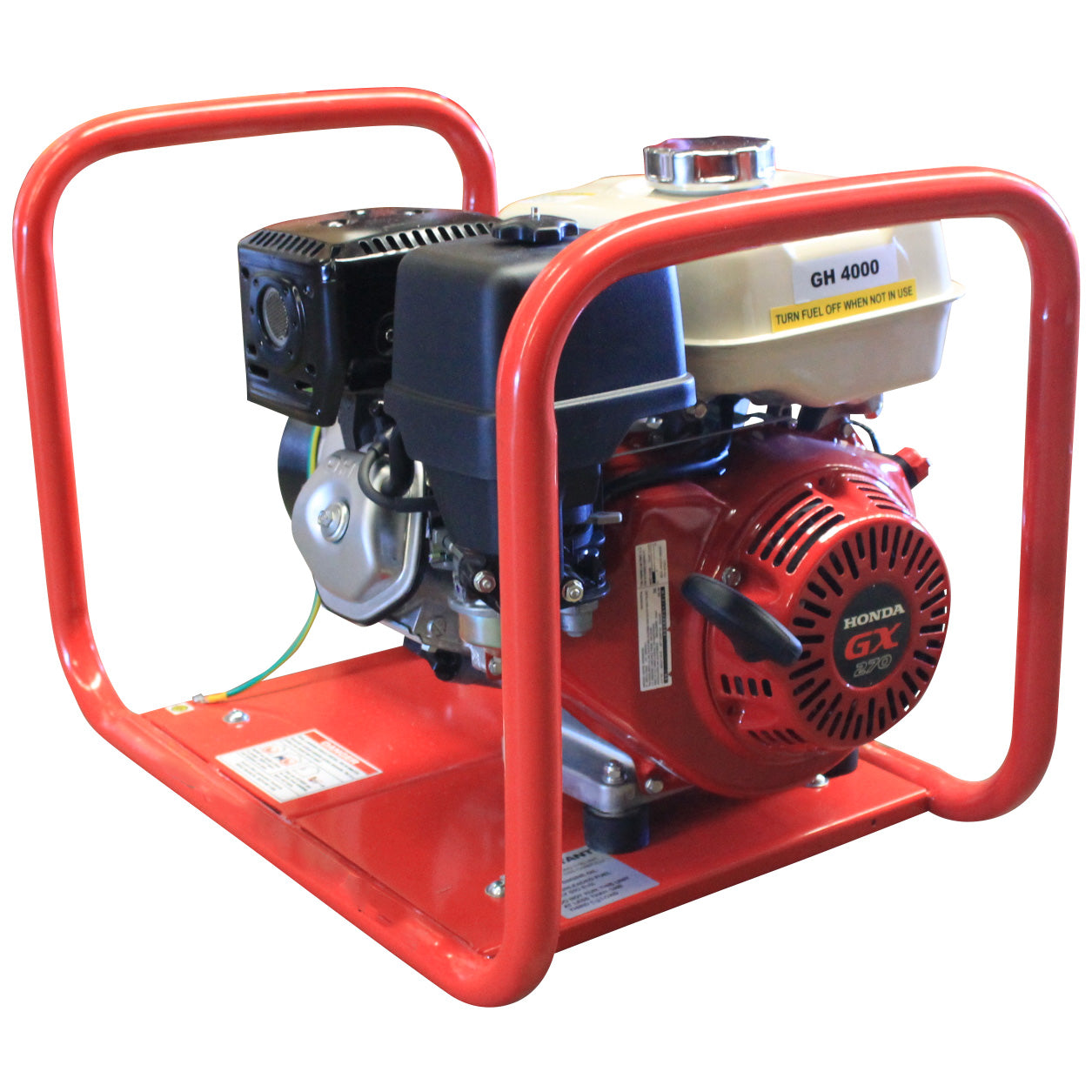

4.5kVA Honda Petrol Generator GH4000

The Honda GH4000 is a single phase petrol generator with a 4.5kVA (4kW) output, powered by a Honda GX270 single cylinder overhead valve (OHV) engine running at 3000rpm. Its AC synchronous brushless alternator produces 240V at 50Hz, the engine starts by recoil pull cord, and a small roll frame surrounds the set.

Key features

• Two switched 15A 240V GPO outlets let you run two tools or appliances at once, with thermal overload protection if the load climbs too high.
• Harmonic distortion is less than 5%, so the output suits sensitive electronics such as laptops, TVs and chargers.
• The brushless alternator has Class H insulation, a high temperature rating for the windings, and no carbon brushes to wear out.
• Recoil start needs no starting battery, so there is nothing to keep charged between jobs.
• The small roll frame protects the set from knocks while it works.
• A 3 year limited engine warranty applies to the Honda engine.

The 6 litre tank runs the GH4000 for 3.2 hours at full load and 4.5 hours at 60% load, which works out to about 1.9 litres an hour at full load and about 1.3 at 60%. Noise is 72 dB(A) at 7 m.

What it will run

At 4kW (about 17A at 240V), the GH4000 typically runs a mix of lighting, a fridge, a TV, a pump and a power tool or two, as long as the total stays inside the rating. Motors in pumps, compressors, fridges and saws draw a surge when they start, so leave headroom above the running total. Check the compliance plate on each appliance for its rated watts or amps, then add up everything that will run together. Home backup must go through an inlet and changeover switch installed by a licensed electrician. Send us your load list and we will help you size it.

The GH4000 suits home backup, trade work on site, workshops, farms and events: any job that needs 240V for tools, pumps and lighting away from mains power.

Key specifications

• Maximum output: 4.5kVA / 4kW
• Engine: Honda GX270
• Phase: Single phase
• Fuel tank: 6 litres
• Run time: 3.2 hrs @ 100%, 4.5hrs @60%
• Noise level: 72 db(A) @ 7m
• Weight: 50 kg
• Dimensions (L x W x H): 67 x 45 x 52 cm
• Voltage and frequency: 240V, 50Hz
• Engine speed: 3000 rpm
• Alternator: AC synchronous brushless
• Harmonic distortion: Less than 5%
• Starting: Recoil
• Outlets: 2 x 15A 240V GPO, switched, with thermal overload
• Warranty: 3 year limited engine warranty
• Frame: Small roll frame
• Engine type: O.H.V. single cylinder
• Engine capacity: 270cc
• Engine oil capacity: 1.1 litres
• Insulation class: Class H

Part of the Honda range at Gen4Sale.
