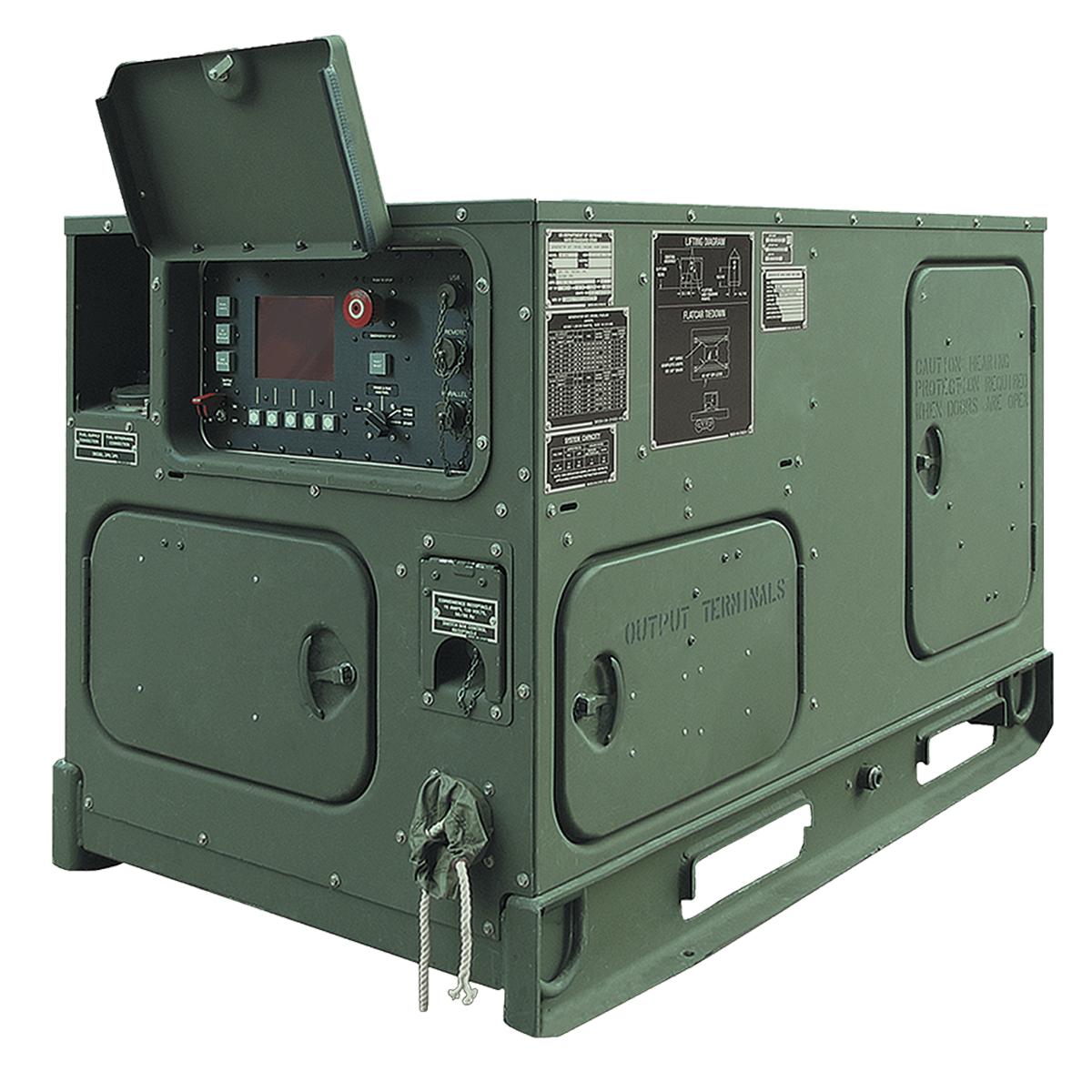

31kVA Cummins RMP Diesel Generator 30RMP-1060A

The 30RMP-1060A is a Cummins RMP diesel generator set rated at 31kVA and built to the MIL-DTL-32496 military specification.

Key features

• Multi-fuel capability covers JP-8, JP-4, DF-1, DF-2 and DF-A, so the set is not tied to a single fuel grade.
• 24-volt starting with a NATO slave connection allows the set to be started from another 24-volt source.
• Automatic synchronisation with two-button paralleling lets sets run together and share a load.
• A low infrared signature makes the set harder to detect with infrared sensing.
• Built-in diagnostics and prognostics monitor the condition of the set to support maintenance.

What it will run

At 31kVA, this set typically supplies a group of loads rather than one large machine: lighting, refrigeration, pumps and workshop tools. Motors in pumps and compressors can draw several times their running current at start, so allow headroom for the largest one. Check the compliance plate on each appliance for its running and starting load, then add them up. Where the set feeds fixed wiring, connection is through a changeover switch installed by a licensed electrician. Send us your load list along with the voltage and phase you need, and we will help with sizing.

The 30RMP-1060A suits defence and military power supply, and any application that calls for a multi-fuel set built to MIL-DTL-32496.

Price on application. Sets like this are quoted to your configuration and requirements. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Output (prime): 31kVA @ 50Hz; 30kW @ 60Hz
• Standards: Designed to MIL-DTL-32496; electromagnetic compatibility to MIL-STD-461F; radio frequency emissions MIL-STD-2169; NATO STANAG 4135
• Multi-fuel capable (JP-8, JP-4, DF-1, DF-2, DF-A)
• Fuel consumption: 9.31 L/h at 100% load
• Fuel tank: 8 hours fuel tank with auxiliary fuel connections
• 24-volt starting with NATO slave connection
• Automatic synchronisation with two-button paralleling
• Controller: RMP Advanced Digital Control System (AdvDCS) with Masterless Load Demand (MLD)
• Low infrared and low noise signature
• Noise level: 70 dB(A) @ 7m at full load
• Other features: Low Velocity Air Drop (LVAD) capable; battle short mode; CAN (SAE J1939) network connection
• Built-in diagnostics/prognostics
• Engine configuration: 4-cycle, in-line, 3.3 L, Bosch electronic fuel injection, Tier 3
• Rating basis: Prime: maximum power at a variable load for an unlimited number of hours; 10% overload available for a limited time
• Power factor: Operates between 0.8 lagging and 1.0
• Frequency regulation: ±0.5% at 50Hz; ±3% at 60Hz
• Voltage regulation: ±3% of rated voltage, no load to full load
• Waveform distortion (THDV): Less than 5% no load to full linear load; less than 3% for any single harmonic
• Operating temperature: -45°C to 57°C
• Weight: 1005 kg
• Dimensions (L x W x H): 191.3 x 91.8 x 135.2 cm

Supplied through Genelite and supported Australia-wide by Gen4Sale, an Authorised Genelite Master Dealer.
