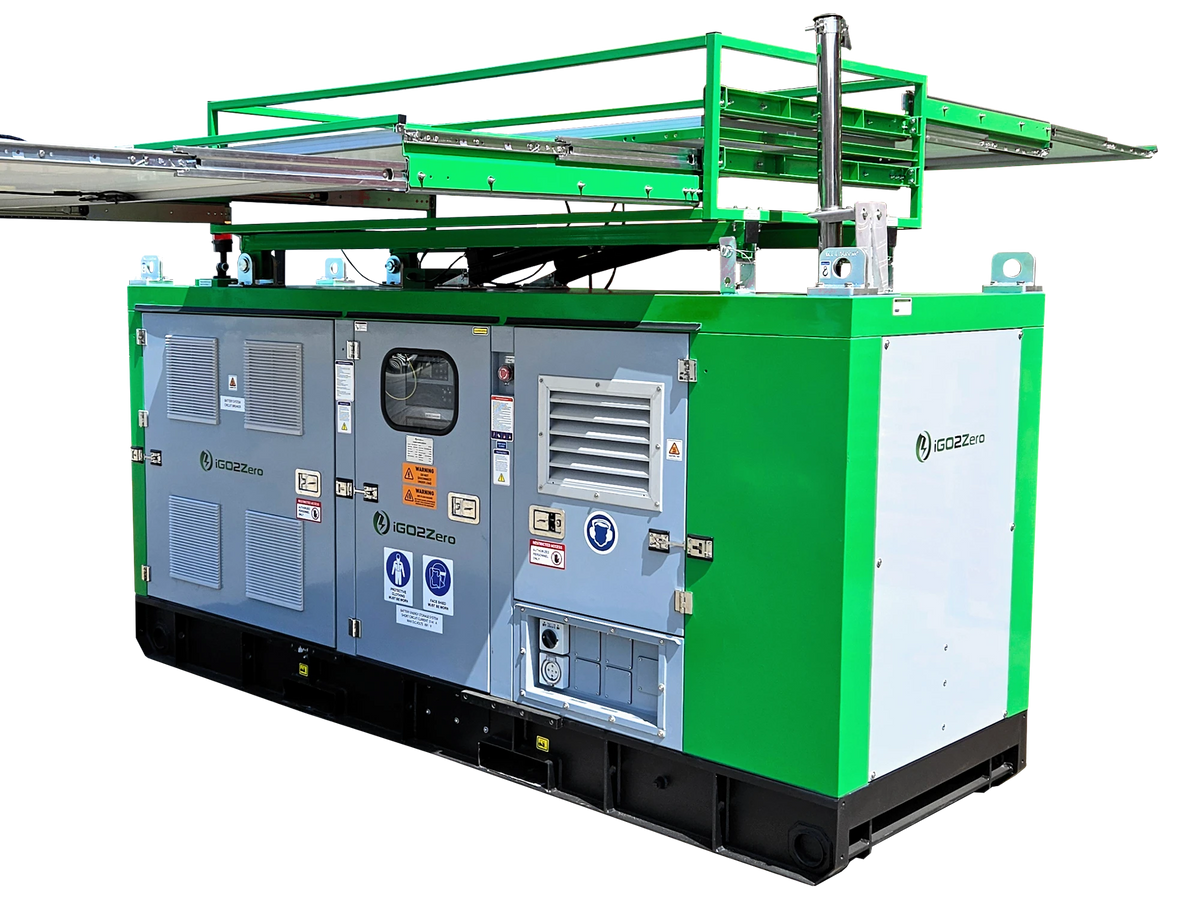

30kVA iGo2Zero Hybrid Generator PH30/60

The iGo2Zero PH30/60 is a 30kVA three phase hybrid generator (415V, 50Hz) that pairs a Yanmar 4TNV98 diesel generator with 60kWh of LiFePO4 battery storage and 5 x 460W solar panels in one integrated system. The Yanmar is a naturally aspirated, four cylinder, 3.319 litre engine running at 1500 rpm with a mechanical governor, driving a brushless Leroy Somer alternator with AVR. A DEIF AGC150 controller manages the unit, and a four pole circuit breaker provides protection.

Key features

• Solar, battery and diesel generator work as one system, so the battery and the solar panels (2,300W in total) take part of the load and the diesel generator runs for fewer hours.
• The 60kWh LiFePO4 (lithium iron phosphate) battery is built from 5.12kWh, 51.2V packs rated for at least 6,000 cycles at 80% depth of discharge.
• The alternator is brushless with an AVR (automatic voltage regulator) to hold output voltage steady, and harmonic distortion is less than 5%.
• A visualised smart control system and a remote monitoring control system show how the unit is operating.
• The canopy is silenced, with a rating of 60 dB(A) at 7 m.
• A mechanical governor regulates the engine's speed as the load changes.

The 100 litre fuel tank gives about 18.6 hours of run time at 75% load, working from the 5.37 L/hr consumption at that load.

What it will run

Site loads, not the kVA figure alone, set what a 30kVA hybrid system can run. The rating is apparent power, so the usable power in kW depends on the power factor of the loads. Add up what operates together, allow for the surge that motors, pumps and compressors draw at start-up, and work out the hours each item runs per day, because the stored energy in the battery and the fuel in the tank decide how long the system keeps going. Have an electrician or engineer assess the site, and have a licensed electrician make the connection to the switchboard. Send us your load list and we will help you size the system.

The PH30/60 suits stationary commercial sites such as farms, depots, remote worksites and construction camps, particularly where a diesel generator carries the load today and 60kWh of battery storage with solar can take over part of its running hours.

Price on application. The system is sized to the site and its configuration, so we quote each one. Use Add to Quote on this page and we will come back to you with a price.

Key specifications

• Combines solar power, diesel generator and battery storage in one unit
• Includes a visualised smart control system for monitoring
• Uses lithium iron phosphate (LiFePO4) battery storage
• Designed for integrated installation and easy transport/storage
• Marketed for off-grid/remote power independence
• Weight: 2936 kg
• Dimensions (L x W x H): 333 x 116.6 x 218.8 cm
• Rated output: 30 kVA
• Phase and voltage: Three phase, 415 V, 50 Hz
• Engine: Yanmar 4TNV98 diesel, 4 cylinders, 3.319 L, naturally aspirated, 1500 rpm
• Alternator: Leroy Somer, brushless with AVR
• Battery storage: 60 kWh LiFePO4
• Solar capacity: 5 x 460 W panels
• Fuel tank: 100 litres
• Fuel consumption: 5.37 L/hr at 75% load
• Controller: DEIF AGC150
• Circuit breaker: Four pole
• Noise level: 60 dB(A) at 7 m (silenced canopy)

Part of the iGo2Zero range at Gen4Sale.
