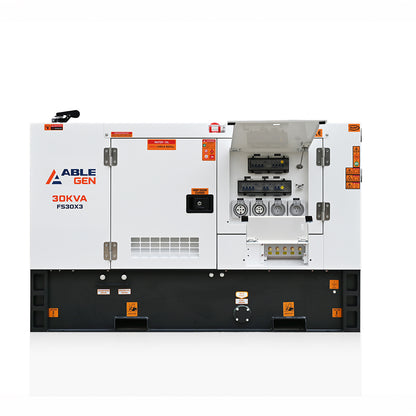

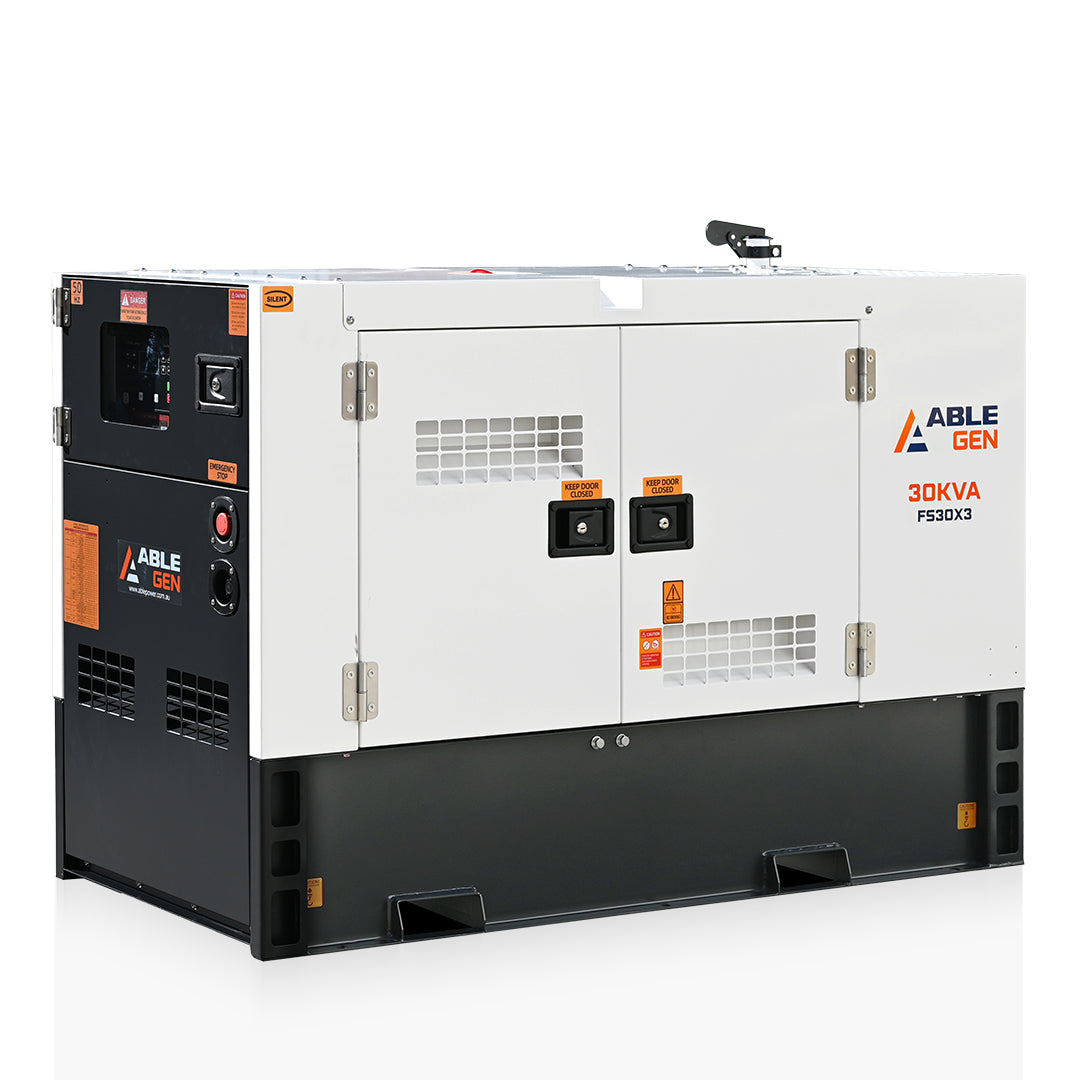

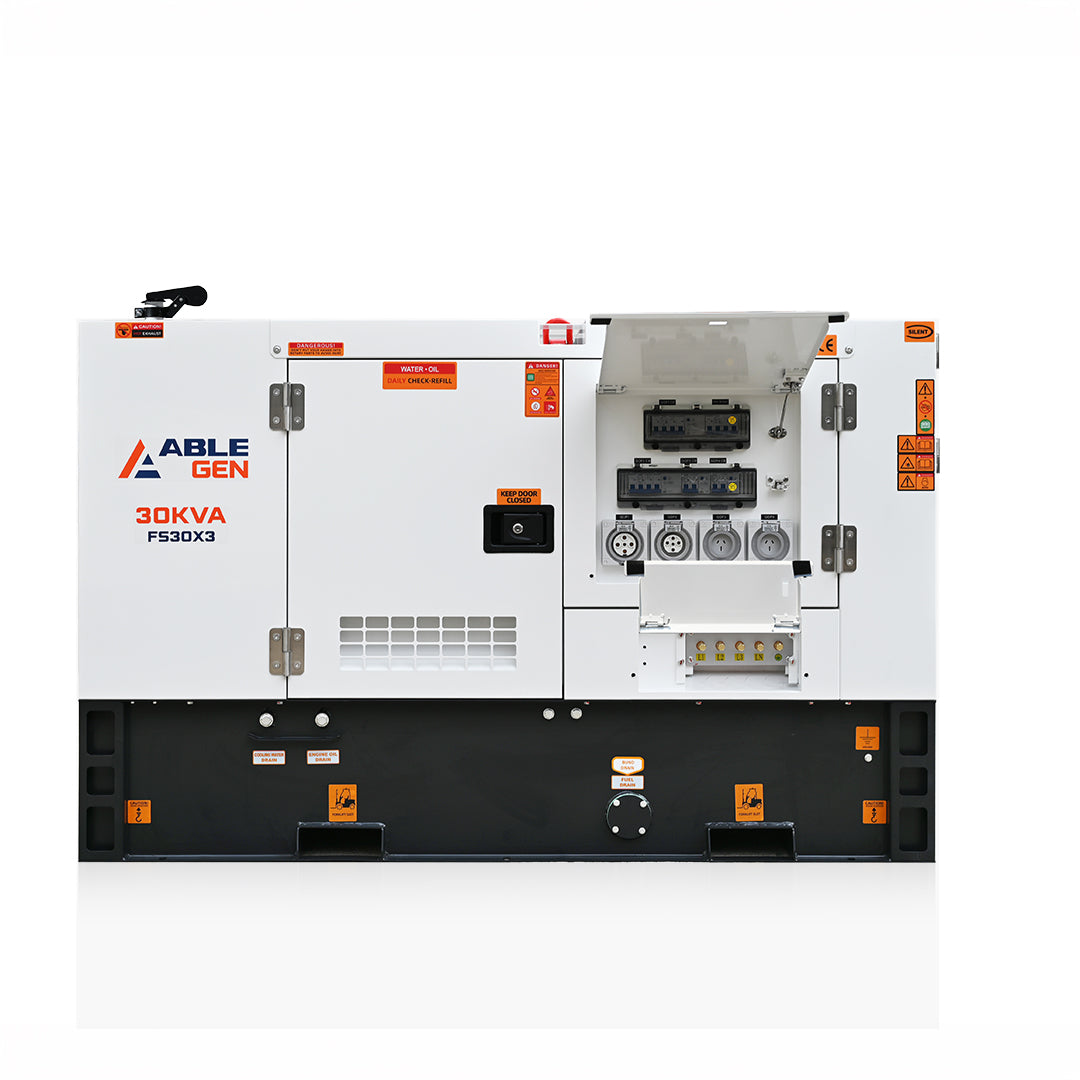

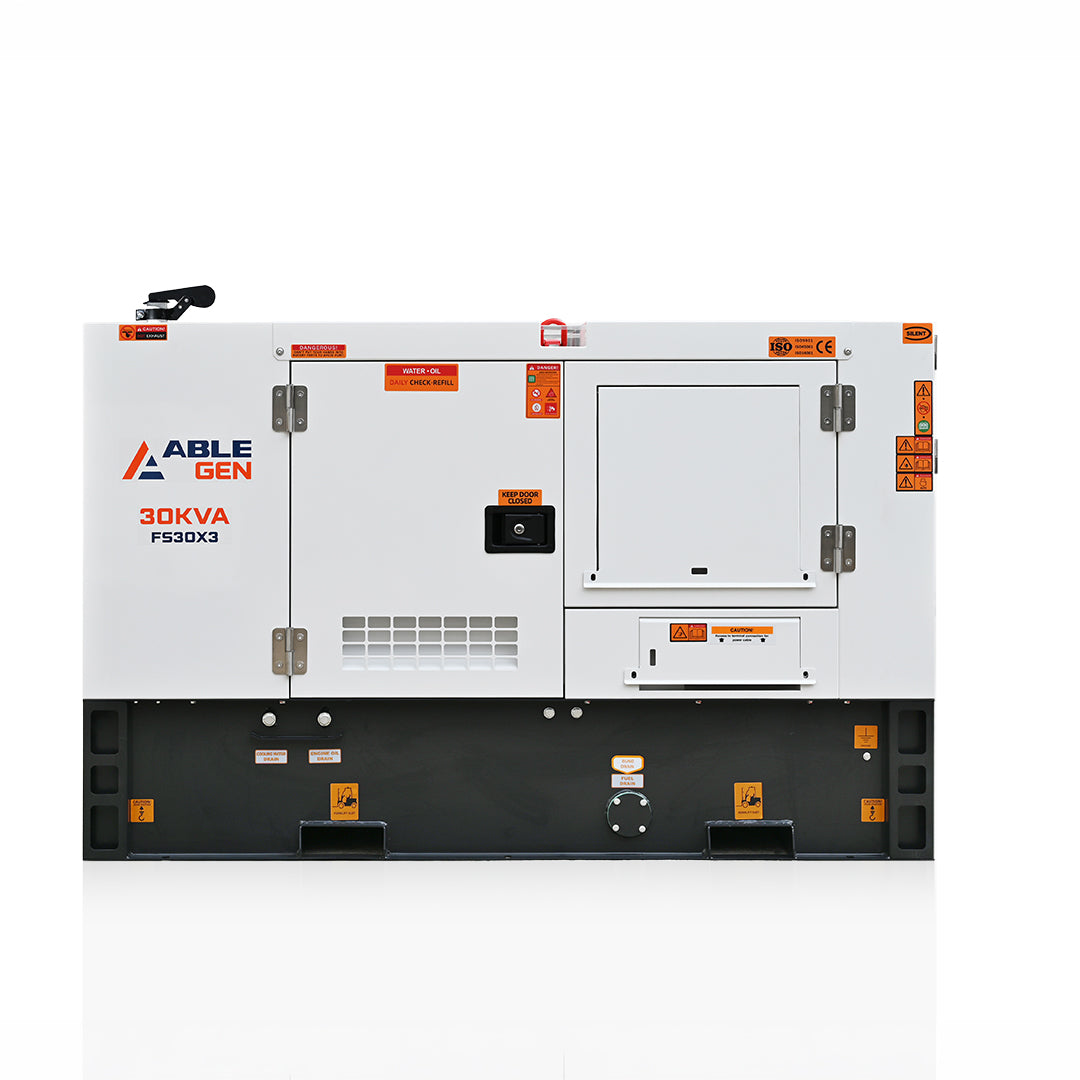

30kVA ABLE Diesel Generator FS30X3

The FS30X3 is a 30kVA three phase diesel generator rated 30kVA (24kW) prime (PRP) and 33kVA (26kW) standby (ESP) at 415V, 50Hz and a power factor of 0.8. It is powered by a FAWDE 4DW92-39D, a four-cylinder, turbocharged, water-cooled diesel running at 1500 rpm, and drives a four-pole brushless synchronous alternator with AVR. Electric start at 12 volts uses the included battery, and protection is an IP67-enclosed RCD plus over current protection.

Key features

• The alternator has class H insulation and IP23 protection, and its AVR holds the output voltage steady as loads change.
• The electric governor holds engine speed, and with it the 50Hz frequency, as loads come on and off.
• A charger keeps the 12 volt, 60 Ah battery topped up, and a lockable isolator lets it be disconnected and locked off.
• The ComAp AMF20 controller has a two-wire remote start input, and an emergency stop is fitted.
• The canopy is lockable, sound deadened, galvanised and powder coated, and the steel base frame has vibration isolators.
• One 32A and one 20A three phase outlet and two 15A single phase outlets are rated IP66 (dust tight and protected against powerful water jets), with hardwire terminals for a fixed connection.
• The 130 litre fuel tank is bunded, and the specification includes mine site ready bunding for sites that need fuel spills contained.

Noise is 63 dB(A) at 7 m. The engine is rated 29.0 kW prime and 32.0 kW standby. Ambient temperatures from -25°C to 50°C are specified, with a coolant heater needed below 5°C, along with humidity below 80% and altitude below 1000 m.

What it will run

At 24kW prime the FS30X3 has a rated current of about 42A per phase. Typically it suits irrigation pumps, a grain dryer, a commercial kitchen, a workshop with machining equipment, or the essential loads of a small business park. Motors draw several times their running current as they start, so start the largest first, add the other loads in steps and keep the three phases balanced. Gather the running and starting power from each machine's compliance plate. Prime (PRP) allows unlimited annual hours on a variable load, with 10% overload for 1 hour in every 12. Standby (ESP) is for emergency use during mains outages, with no overload. Have an electrician assess the site load before you specify the set, and have a licensed electrician make the switchboard connection. Send us your load list and we can help with sizing.

The FS30X3 suits three phase sites with heavier loads: farms, commercial kitchens and clubs, workshops and small business parks. It can provide standby power in a mains outage or prime power on a variable load.

Key specifications

• Output: 30kVA (24kW) prime, 33kVA (26kW) standby @ 0.8PF
• Rated current: 42 Amps per phase (prime)
• Engine: FAWDE four-cylinder turbo diesel, 1500rpm, water cooled
• Alternator: Three phase 4-pole brushless synchronous alternator with AVR
• Controller: ComAp AMF20, two-wire remote start
• Start type: 12 volt electric, battery included
• Phase / voltage: Three phase, 415V, 50Hz
• Fuel: Diesel
• Fuel tank: 130 L
• Fuel use: 6.5 L/hr at prime load
• Run time: 20 hrs continuous at prime load
• Noise level: 63 dB(A) @ 7m
• Outlets: 1 x 32 Amp and 1 x 20 Amp three phase and 2 x 15 Amp single phase IP66 outlets
• Hardwire terminals: Yes
• Protection: RCD to Australian Standards (IP67 enclosed), over current protection
• Canopy: Lockable, sound deadened, weather-resistant powder coat, stainless steel fittings
• Mine spec: Mine site ready bunding
• Dimensions (L x W x H): 185 x 76 x 118 cm
• Weight: 850 kg
• Warranty: 12 months or 1,000 hours
• Prime (PRP) availability: Unlimited annual hours on a variable load, 10% overload for 1 hour in every 12
• Standby (ESP) use: Emergency use during mains outages, no overload, no parallel operation
• Engine model: FAWDE 4DW92-39D
• Engine configuration: 4 cylinder, 90 x 100 mm bore and stroke, 2.54 L, compression ratio 17.0:1
• Engine output: 29.0 kW prime, 32.0 kW standby
• Engine capacities: Oil 8.0 L, coolant 8.0 L
• Alternator construction: 184G frame, 4 pole, insulation class H, IP23
• Governor and excitation: Electric governor, self-excited shunt excitation
• Battery and charger: 12 V 60 Ah battery with charger and lockable battery isolator
• Other fitted features: Emergency stop, galvanised and powder-coated canopy, 50°C radiator, steel base frame with vibration isolators, bunded 130 L fuel tank
• Operating conditions: Ambient -25 to 50°C (coolant heater needed below 5°C), humidity below 80%, altitude below 1000 m
• Standards: CE certification, ISO 8528-5:2005, GB/T 2820.5-2009, ISO 3046
